2.1 Control Names
See Figures 3 and 4 for the location of the user controls, indicator and connectors.
Each part is identified by number and is described individually.
2 PART NAME
5. FUNCTION ADJUST BUTTONS: Push the adjust
buttons to adjust the image on the screen.
6. AC POWER CONNECTOR
7. SIGNAL INPUT CONNECTOR (SIGNAL-A):DB9-15P
8. SIGNAL INPUT CONNECTOR (SIGNAL-B):DB9-15P
9. USB UPSTREAM PORT: To connect to USB equipped
computer.
10. USB DOWNSTREAM PORTS: To connect to USB
equipped peripherals, e.g, USB cameras, keyboards,
printers, etc.
2.2 Function
1. POWER SWITCH: A push-on / push-off switch for AC
power.
2. POWER-ON INDICATOR: This indicator illuminates
green when AC power is on, and illuminates orange
when the monitor is in the power management modes.
3. INPUT CONNECTOR SELECT/OSD OFF BUTTON:
• Without OSD screen, push to select the signal input
connector, SIGNAL A or B.
• With OSD screen, push to turn the OSD screen off.
If only one input is used, the monitor will select it
automatically.
4. ITEM SELECT BUTTONS: Push to select the item icon.

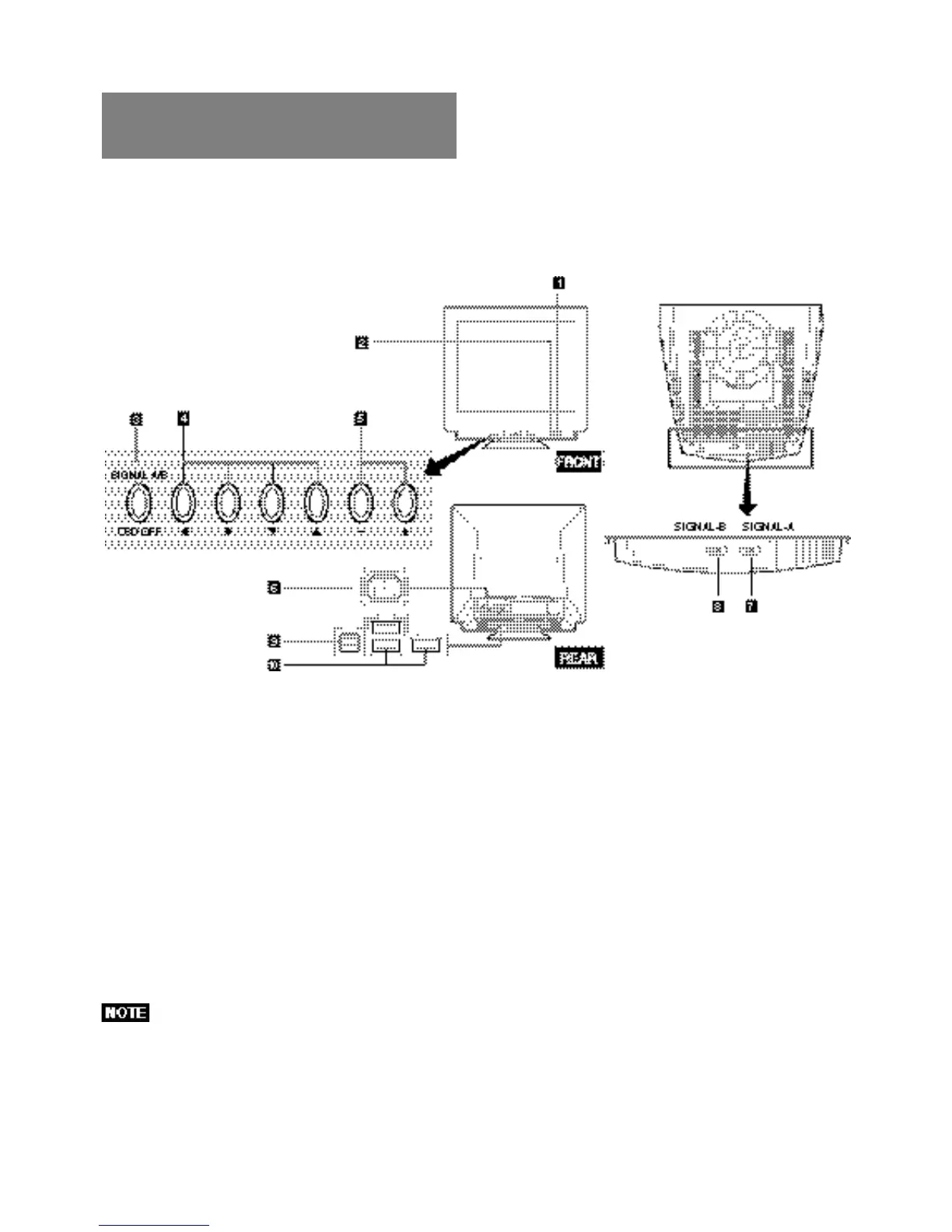

Figure 3
Figure 4
