PRODUCT DESCRIPTION

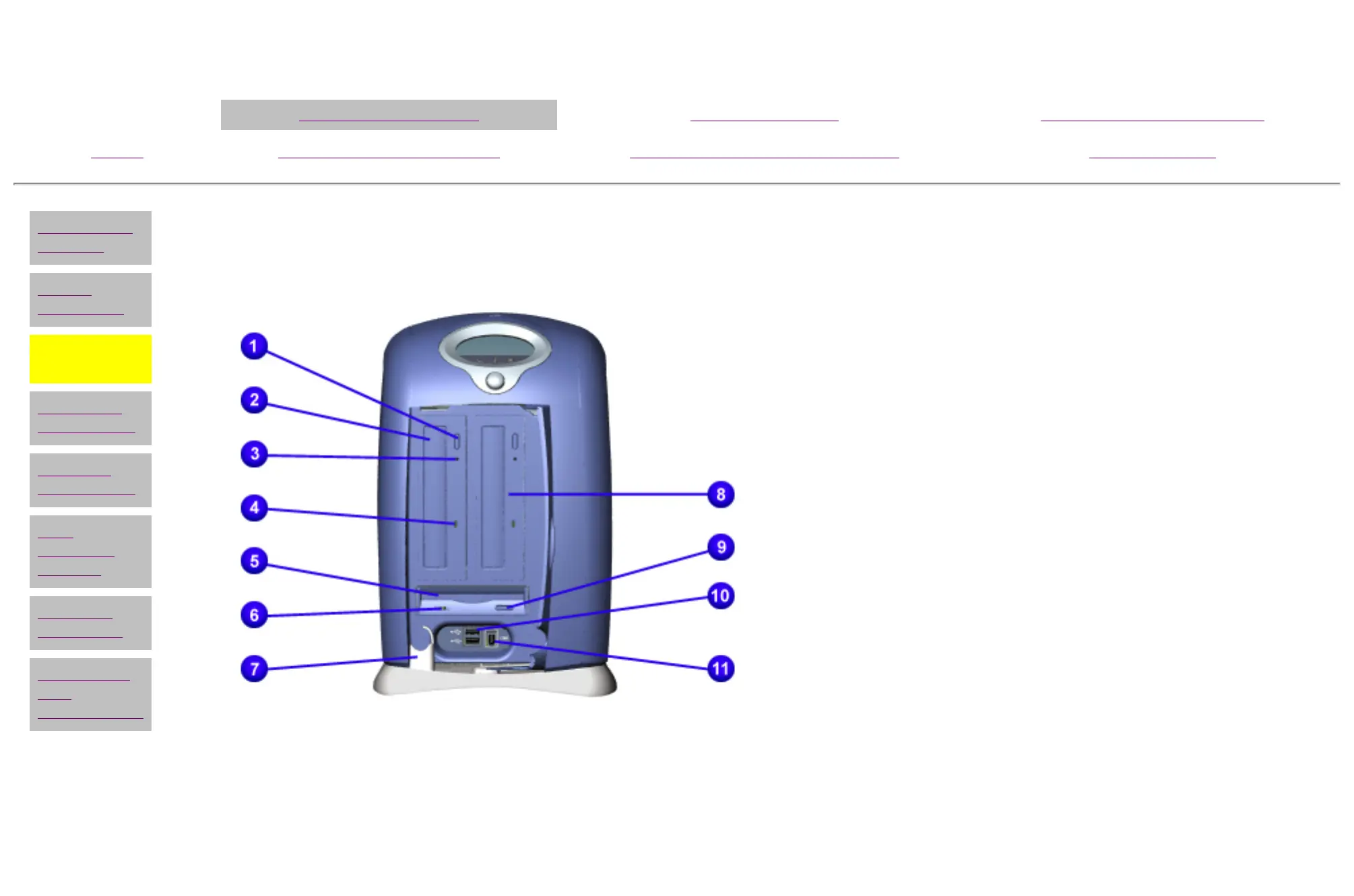

CPU Controls and Lights
1 DVD or CD Drive Eject Button
(DVD drive available on selected models)
2 DVD or CD Drive Tray
(DVD drive available on selected models)
3 DVD or CD Drive Manual Eject Hole
(DVD drive available on selected models)
4 DVD or CD Drive Activity Light
(DVD drive available on selected models)
5 Diskette Drive
6 Diskette Drive Activity Light
7 Cable Collector
8 CD-RW Drive
9 Diskette Drive Eject Button
10 USB Connectors
11 1394 Connector
