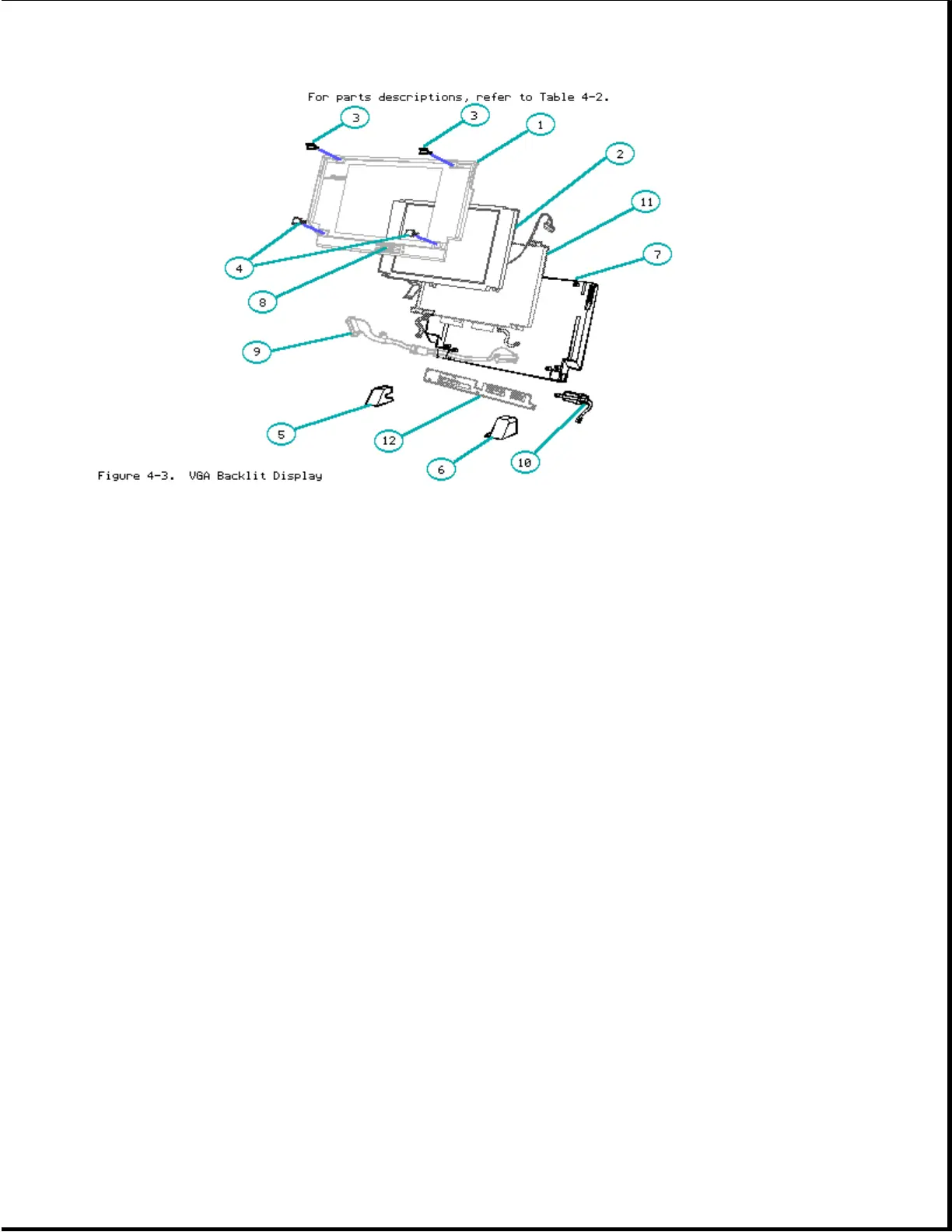

Table 4-2. VGA Backlit Display
==============================================================================
Description Part Number
------------------------------------------------------------------------------
1. Display Bezel 118372-001
Screw Covers, Flat *
Screw Covers, Contoured *
------------------------------------------------------------------------------
2. LCD Display Panel 110451-001
------------------------------------------------------------------------------
Display Plastic Parts 118370-001
3. Cosmetic Screw Covers, Contoured
4. Cosmetic Screw Covers, Flat
5. Left Hinge Cover
6. Right Hinge Cover
------------------------------------------------------------------------------
7. Display Enclosure (includes latches) 110508-001
8. Potentiometer Slide Knob
------------------------------------------------------------------------------
9. Left Hinge (includes display signal cable) 110450-001
------------------------------------------------------------------------------
10. Right Hinge (includes display ground cable) 110449-001
------------------------------------------------------------------------------
11. Display Shield Assembly with Ground Cables (2) 130762-001
------------------------------------------------------------------------------
12. Backlight Inverter Board 110452-001
------------------------------------------------------------------------------
* Not shown in Figure 4-3.
==============================================================================
