Compaq SLT/286 User Manual

NOTE: The COMPAQ SLT/286 system board (Assy No. 001160) comes with a memory
module (not shown in this illustration) mounted on the system board. When
returning the COMPAQ SLT/286 system board (001160), the memory module must be
attached.

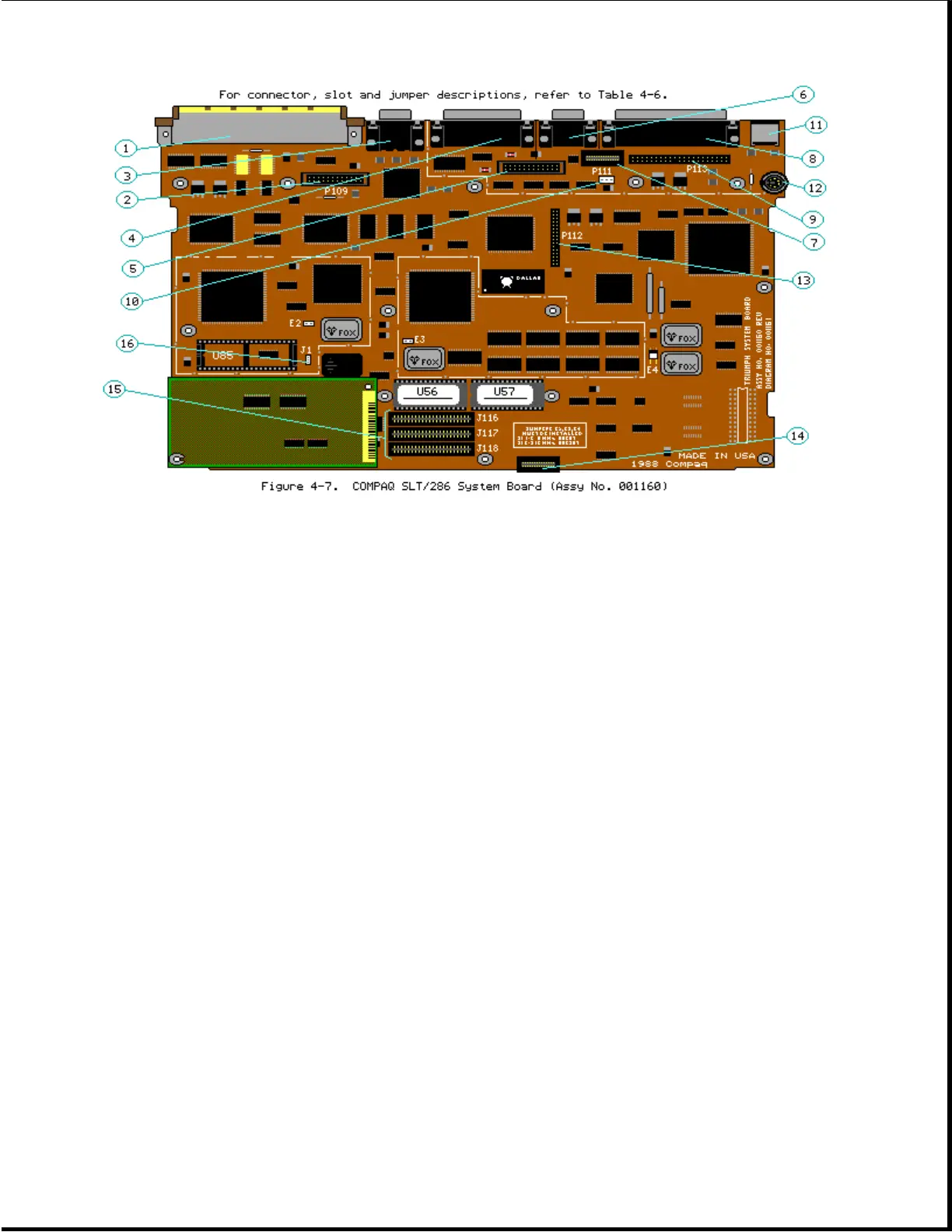

Table 4-6. COMPAQ SLT/286 System Board Connectors
==============================================================================
1. Desktop Expansion Base Connector
2. LCD Connector
3. VGA Monitor Connector
4. Parallel Connector
5. System Power Connector
6. Serial Connector
7. Second Serial/Modem Connector
8. External Storage Module Connector
9. Fixed Disk Drive Connector
10. Fixed Disk Drive Power Connector
11. External Keyboard Connector
12. Internal Keyboard Connector
13. Diskette Drive Connector
14. LED Indicator Connector
15. Memory Expansion Slots
16. Coprocessor Jumper
==============================================================================
Standard Boards

Compaq SLT/286 Specifications

General

Brand	Compaq
Model	SLT/286
Category	Laptop
Language	English
