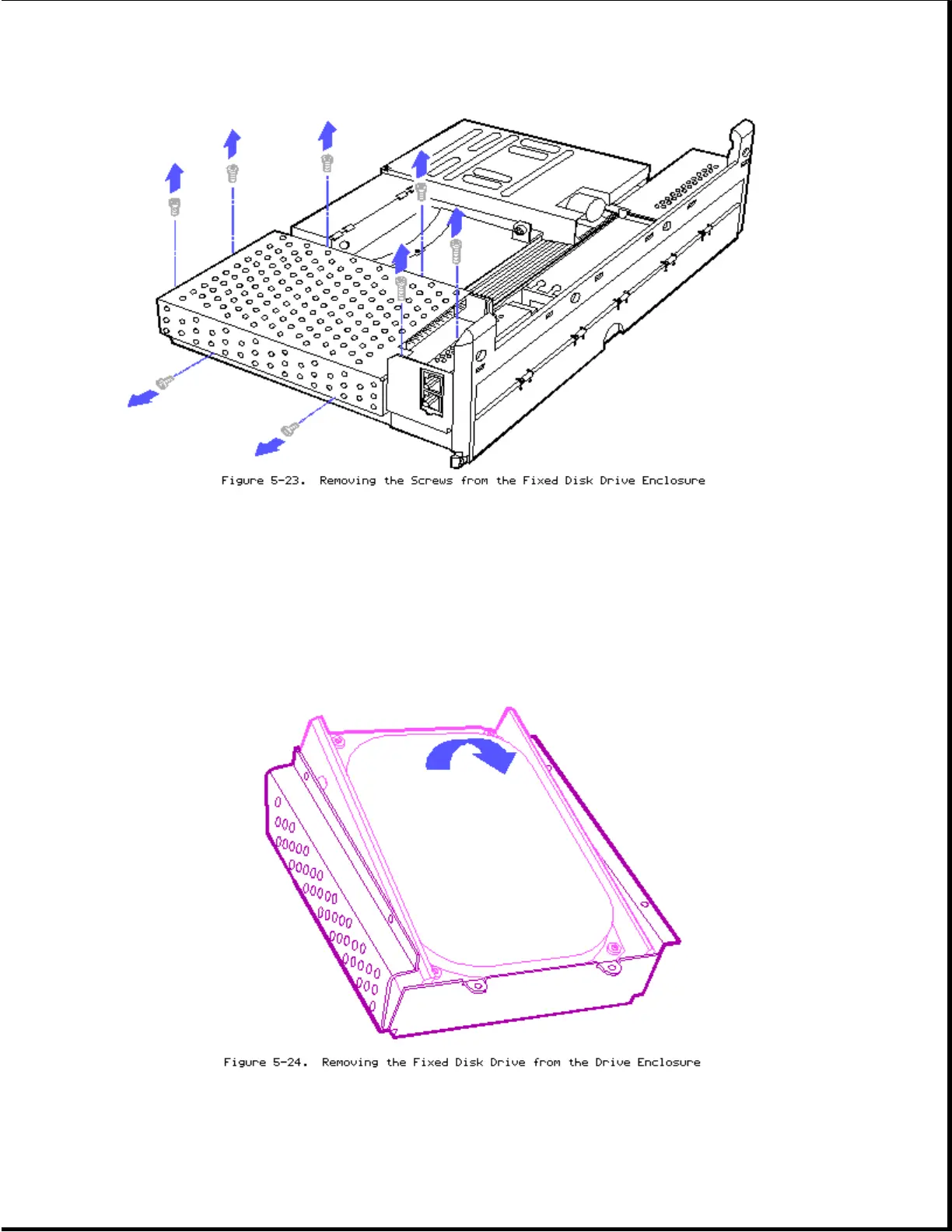

Removing the Fixed Disk Drive Enclosure and Shock Mounts
1. Rotate the drive enclosure to remove it from the fixed disk drive.
CAUTION: ON THE COMPAQ SLT 386s/20, BE CAREFUL NOT TO THE DAMAGE THE FLEXIBLE
GROUND SHIELD WHEN REMOVING THE DRIVE ENCLOSURE.
2. If applicable, lift the side flaps of the flexible ground shield before
removing the shock mounts.
