Chapter 5.14 VGA BACKLIT DISPLAY
1.
Remove
the
right
hinge
cover,
section
5.5.
2.
Remove
the
keyboard,
section
5.5,
to
allow
easy
disassembly
of
the
LCD
panel.
3.
Remove
the
battery
pack,
section
5.4.

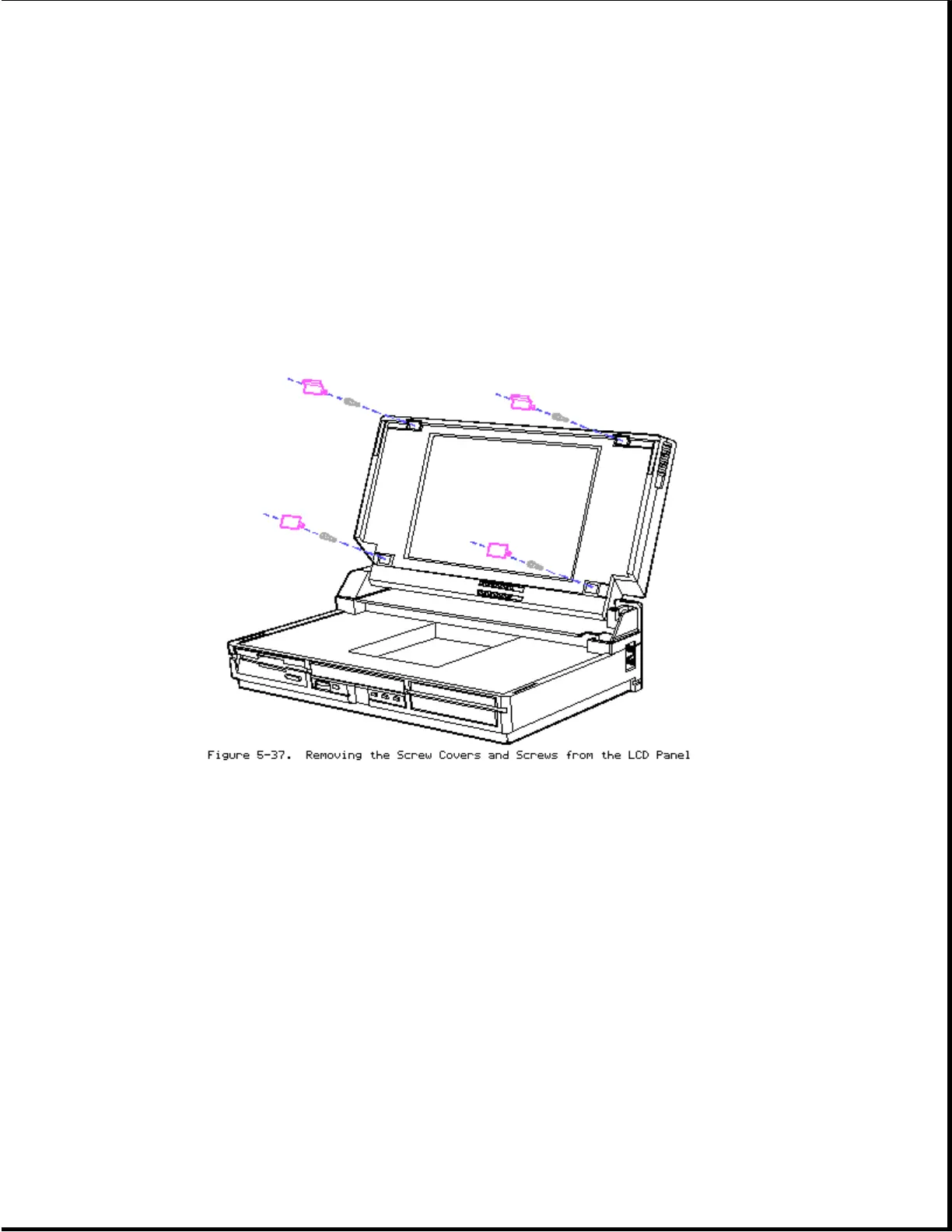

Removing
the
LCD
Panel
Use
a
Torx
T-15
screwdriver
to
remove
the
screws.
