II.2 Installation sequence

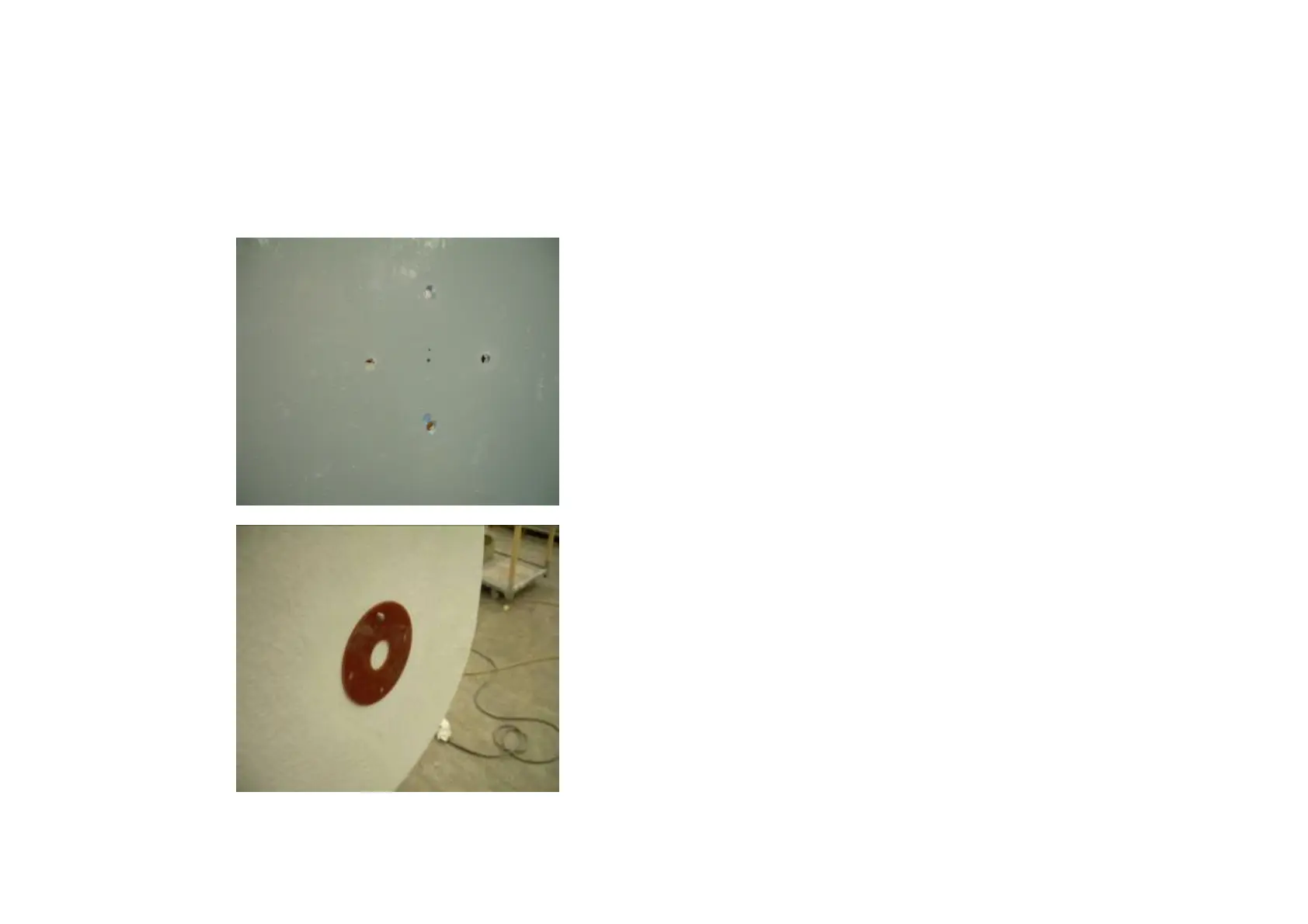

Installation of the mechanism: non-motor side
• Use the motor flange as a
template
• The center of the roller shaft
will be marked at the Compass
factory
• Mark the 4 bolt holes
• Drill the 4 bolt holes: Ø 9mm
• DO NOT drill a center hole on
this side !!!
