II.2 Installation sequence

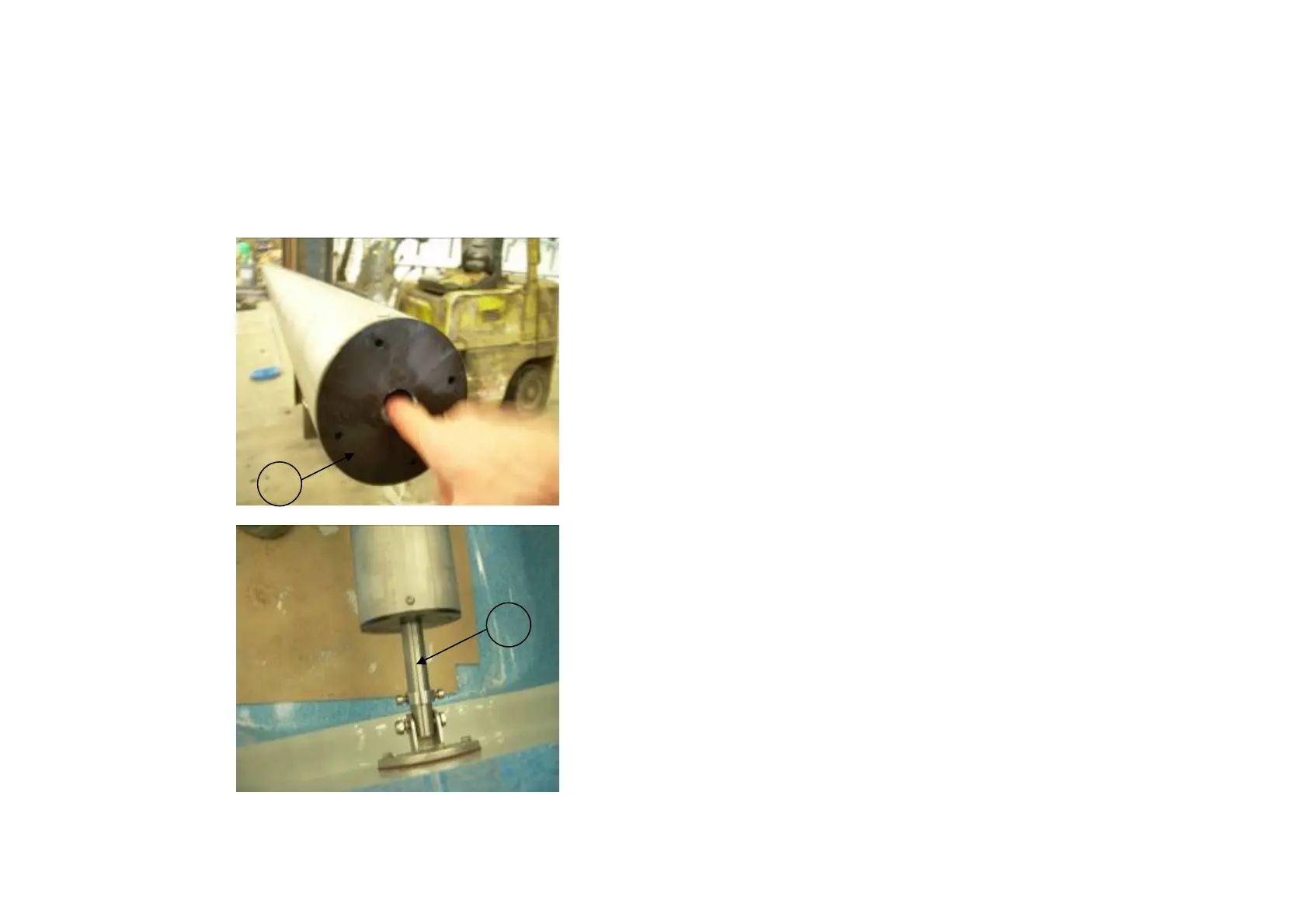

Installation of the mechanism: roller shaft
• Put enough vaseline in the
plastic bearing at the non-
motor side of the roller shaft
• Put the non-motor side of the
roller shaft with the plastic
bearing over the stainless steel
shaft Ø 30mm
2
12
