II.2 Installation sequence

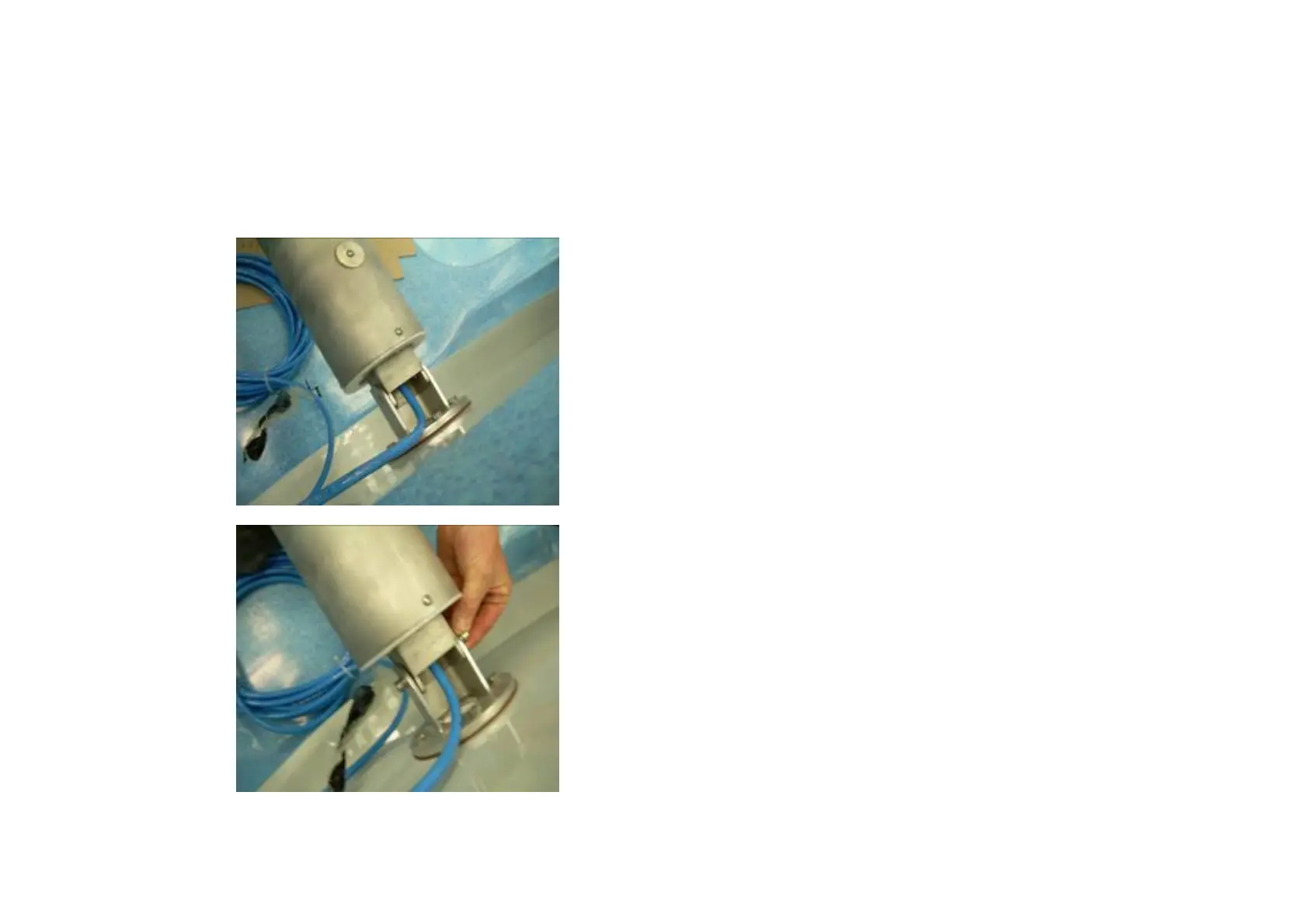

Installation of the mechanism: roller shaft
• Place the motor side of the
roller shaft in the motor flange
• Again take care that you do
NOT damage the motor cable
• Lock the motor with 1 bolt
M8x90 + 2 washers and 1 nut
