Heat pump pool heater _12

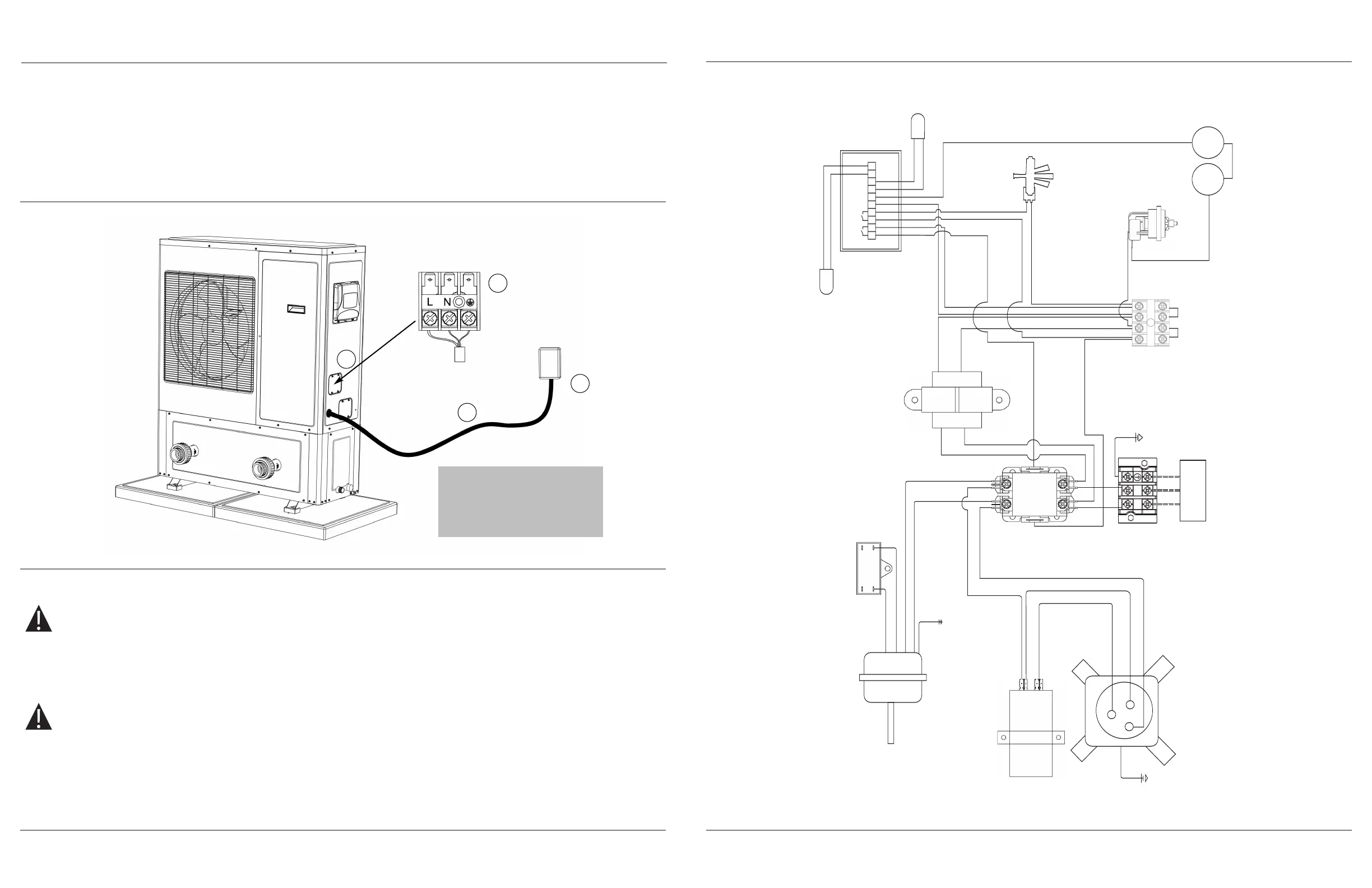

CONNECTING ELECTRICAL CONDUCTORS
Bomba de calor eléctrica de bajo consumo _59
You must remove the electrical connexion box cover to access the electrical compartment. Wiring connections must be
made exactly as shown in the wiring diagram found under the top cover inside of the heat pump pool heater.
A disconnect switch must be installed near the outdoor unit for easy disconnection of power to the heat pump pool heater.
CAUTION
Operating the unit with improper line voltages constitutes abuse and will affect unit reliability and operation. Do not install
a system where voltage or phase imbalances may occur above or below permissible limits.
WARNING
Disengage main power disconnect before attempting installation
A: Disconnect switch
B: Electrical conductor
C: Electrical connexion box cover
D: Terminal block
A
B
DIAGRAMA DE CABLEADO
30HPRA-E
50HPRA-E
