Compool Cp3800
System Power
System Power provides power to the transformer.

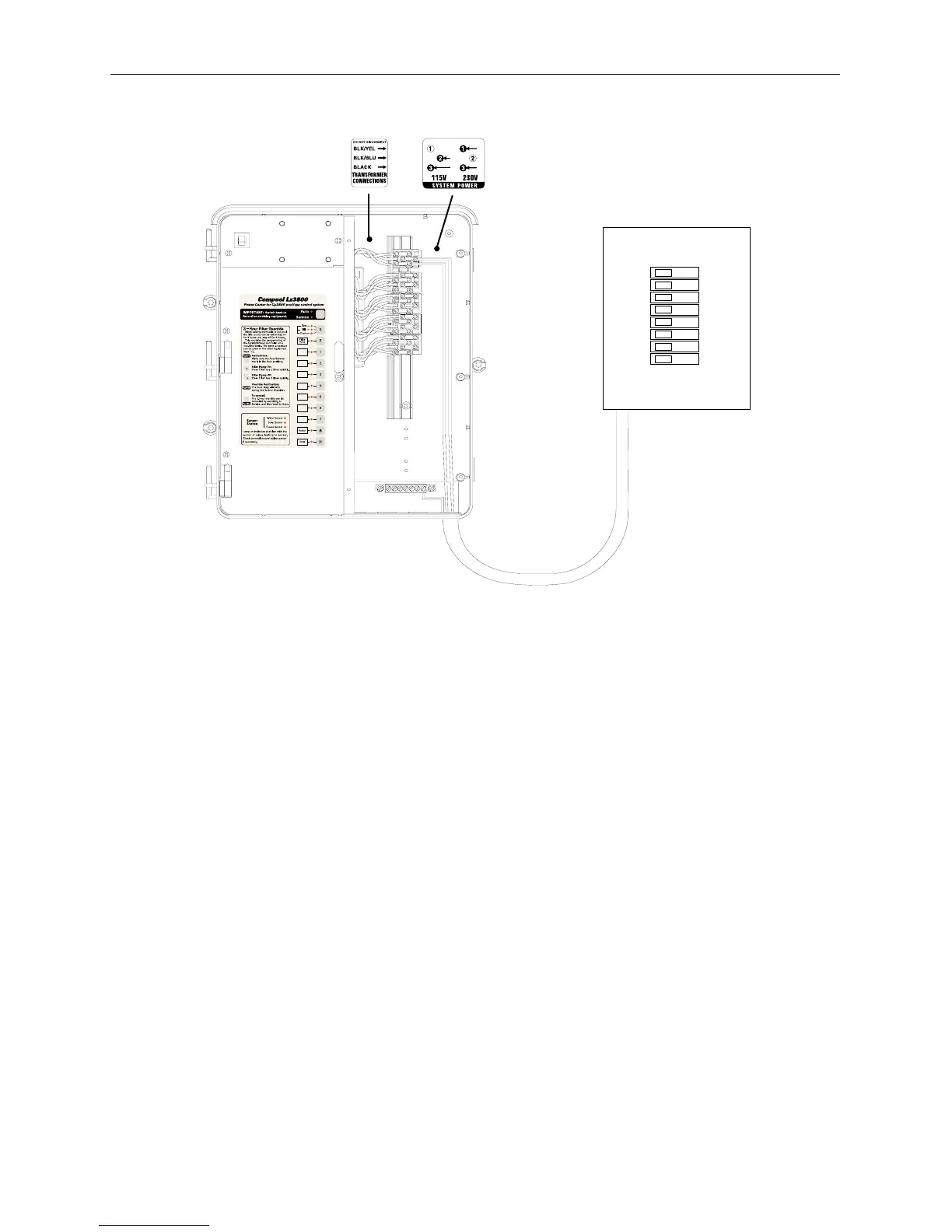

• To wire System Power
1. At the Sub-panel, install a circuit breaker for System Power. The system draws less than 1
amp. Do not use a GFCI circuit breaker.
2. Run appropriate wires from the circuit breaker to the System Power terminal block.
3. For a 115 volt connection, connect to terminals 2 and 3.
4. For a 230 volt connection, connect to terminals 1 and 3.
Caution
Incorrect wiring will cause permanent damage to the transformer.
▲
▲
▲
▲
▲
▲
Lx3800
SUB-PANEL
To Next Page
