FIG. 4

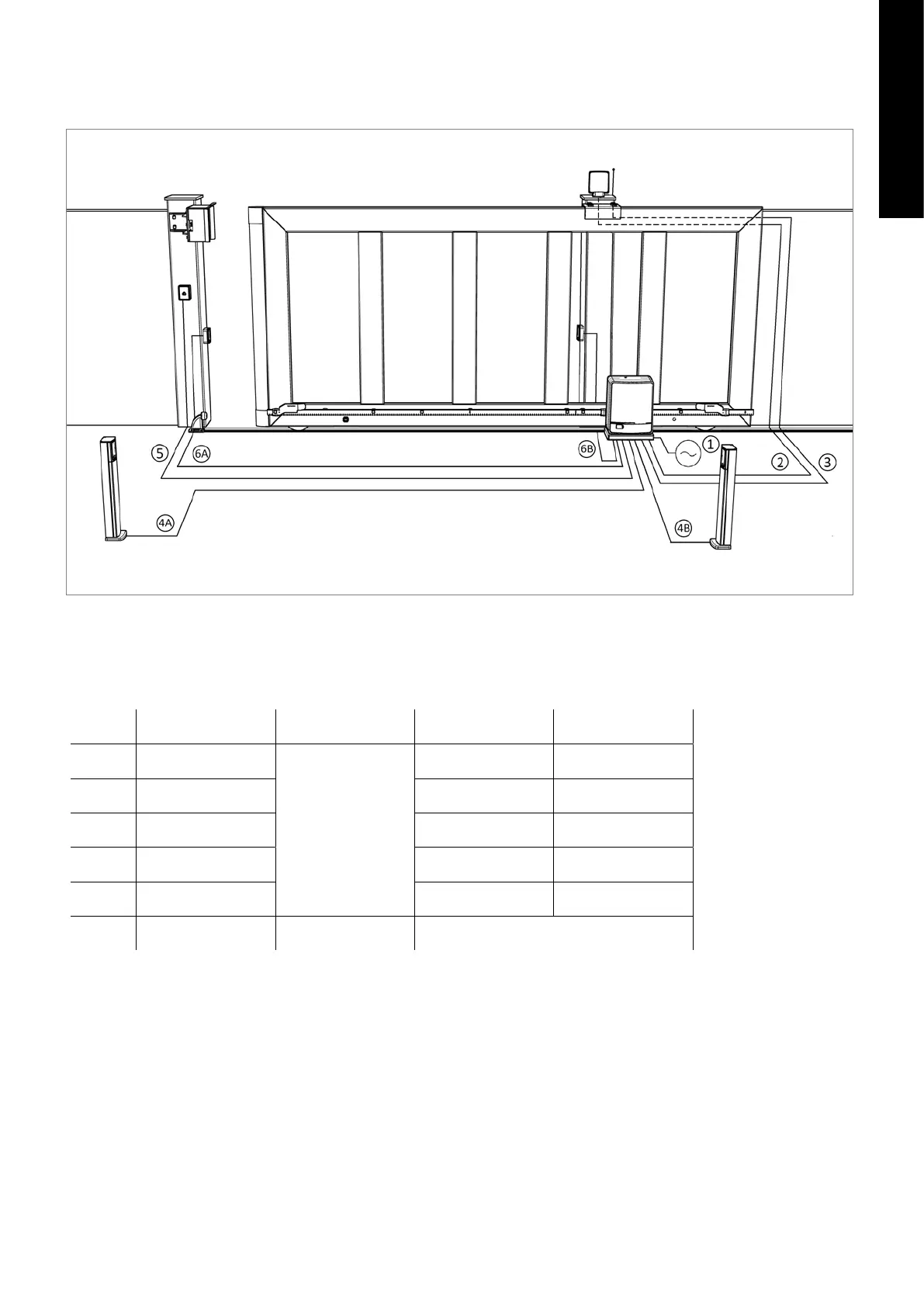

TABELLA CONNESSIONI CAVI AG01 - WIRES CONNECTION TABLE AG01
BASIC 24V – SLIDING GATE (CU 24V 1M)
ID Description Cable type Lenght (1m to 20m) Lenght (20m to 50m)
1 Main power supply
FG7 CEI 20-22
CEI EN 50267-2-1
2x1,5mm2 2x2,5mm2
2 Flashing light 2x0,5mm2 2x1,0mm2
4A , 6A Photocell TX 2x0,5mm2 2x1,0mm2
4B , 6B Photocell RX 4x0,5mm2 4x1,0mm2
5 Key selector 3x0,5mm2 3x1,0mm2
3 Antenna RG58 max 20m
