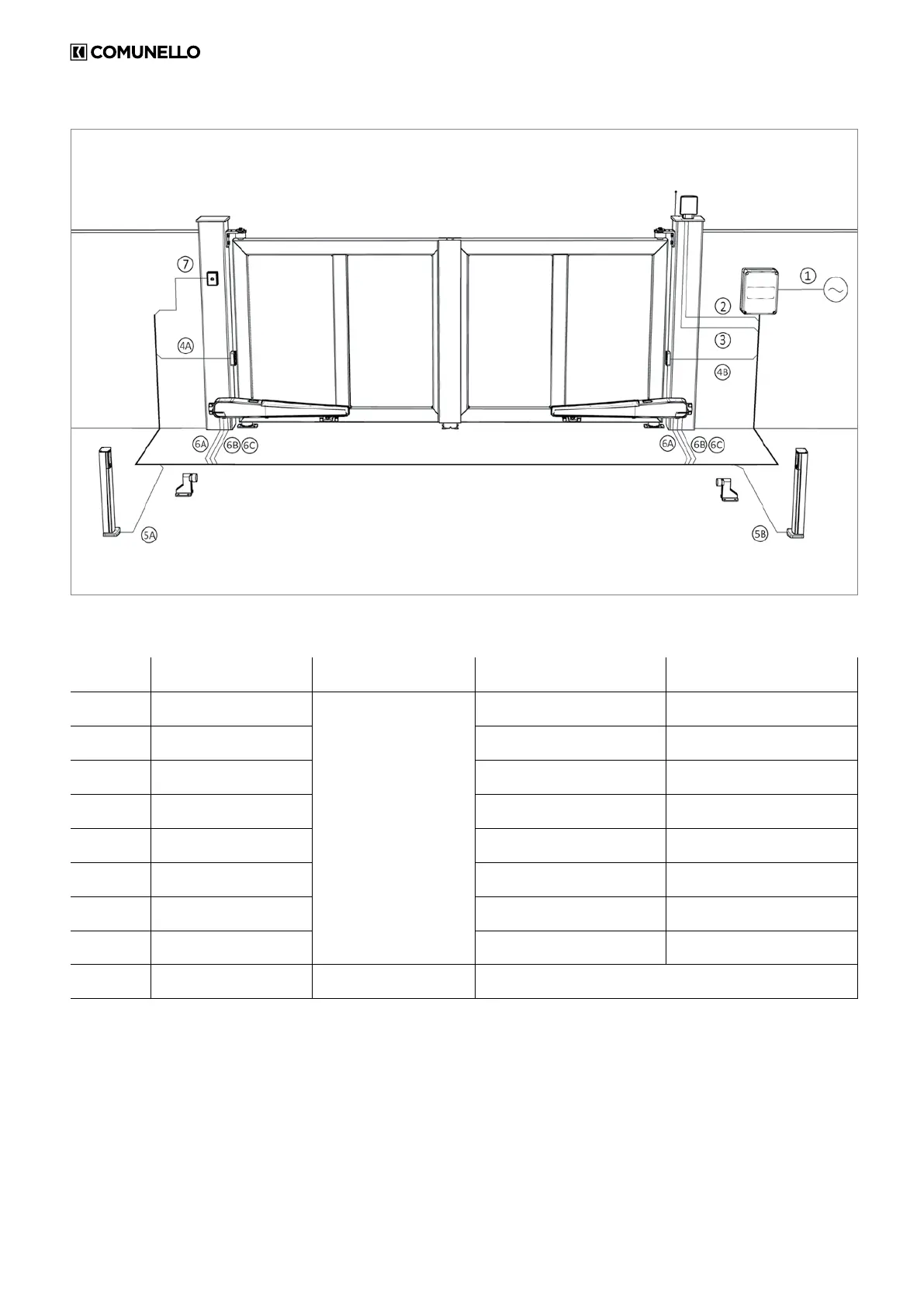

FIG. 4

TABELLA CONNESSIONI CAVI AG01 - WIRES CONNECTION TABLE AG01

HP 24V – (QUAD 24V HP)

ID Description Cable type Lenght (1m to 20m) Lenght (20m to 50m)

1 Main power supply

FROR CEI 20-22

CEI EN 50267-2-1

2x1,5mm2 2x2,5mm2

6A Motor power supply 2x2,5mm2 2x4,0mm2

2 Flashing light 2x0,5mm2 2x1,0mm2

4A , 5A Photocell TX 2x0,5mm2 2x1,0mm2

4B , 5B Photocell RX 4x0,5mm2 4x1,0mm2

7 Key selector 3x0,5mm2 3x1,0mm2

6B Limit switch 3x0,5mm2 3x1,0mm2

6C Encoder 3x0,5mm2 3x1,0mm2

3 Antenna RG58 max 20m

Comunello QUAD 24V HP - Page 4
