Attaching the machine to the Tractor
Concept Perugini Flail toppers can be linked up to any tractor with a category 1
three point linkage.
Read the tractor’s instruction manual before attaching attempting to attach the
machine to the tractor.
• Adjust the width of the tractor arms to match the lower brackets on the
machine
• On a at surface reverse the tractor up to the machine
• Firstly attach the lower links and do the necessary adjustments to limit
sideways movement
• Lengthen and attach the top link in order to have the machine parallel to the
ground once attached
• Remember to t all the locking pins and that the machine is safely secured
to the tractor
ALWAYS MAKE SURE THE TRACTOR IS TURNED OFF, P.T.O
IS DISENGAGED AND MACHINE IS MADE SAFE
PTO Shaft
If necessary, cut the PTO shaft to the right length following the shaft
manufacturer instructions.
When attaching the PTO shaft to the machine and tractor make certain that if the
PTO shaft is tted with an overrun clutch this must be installed on the implement.
When connecting to the tractor verify that the locking pin is correctly located and
secure in place. Before use make sure all the chains and guards are correctly
tted.
The height of the machine from the ground is controlled by the rear roller, skids
and top link. Before using the ail mower make sure that the ails do not hit the
ground, this will result in extreme wear will damage the rotor.
Always adjust the top link to keep the machine parallel to the ground when
adjusting the height of the rear roller.
Working Depth
A
B
CT

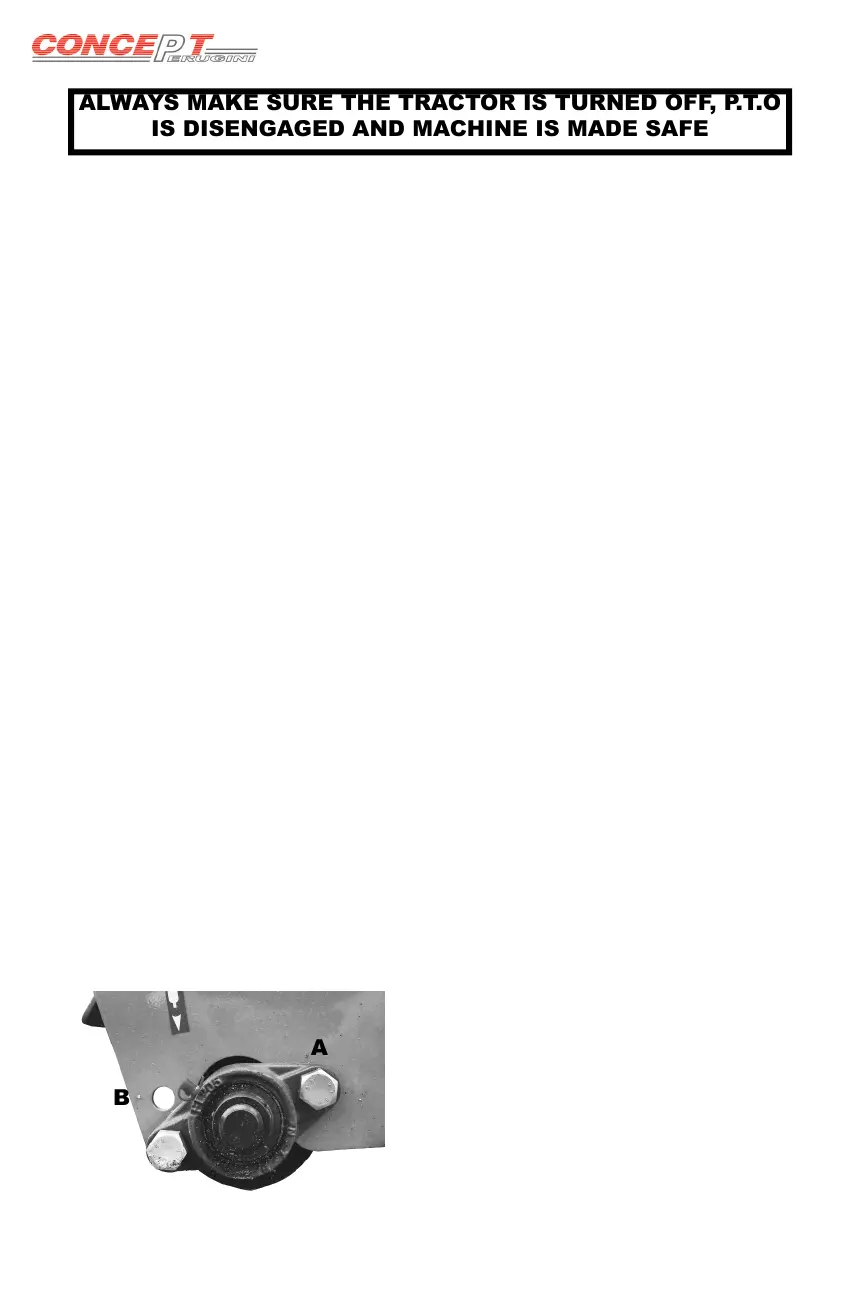

The working depth is set by altering the
position of the rear roller support.
To do this:
• Slacken bolt A
• Remove and reposition the support in B
• Tighten all bolts
• Repeat for both sides
