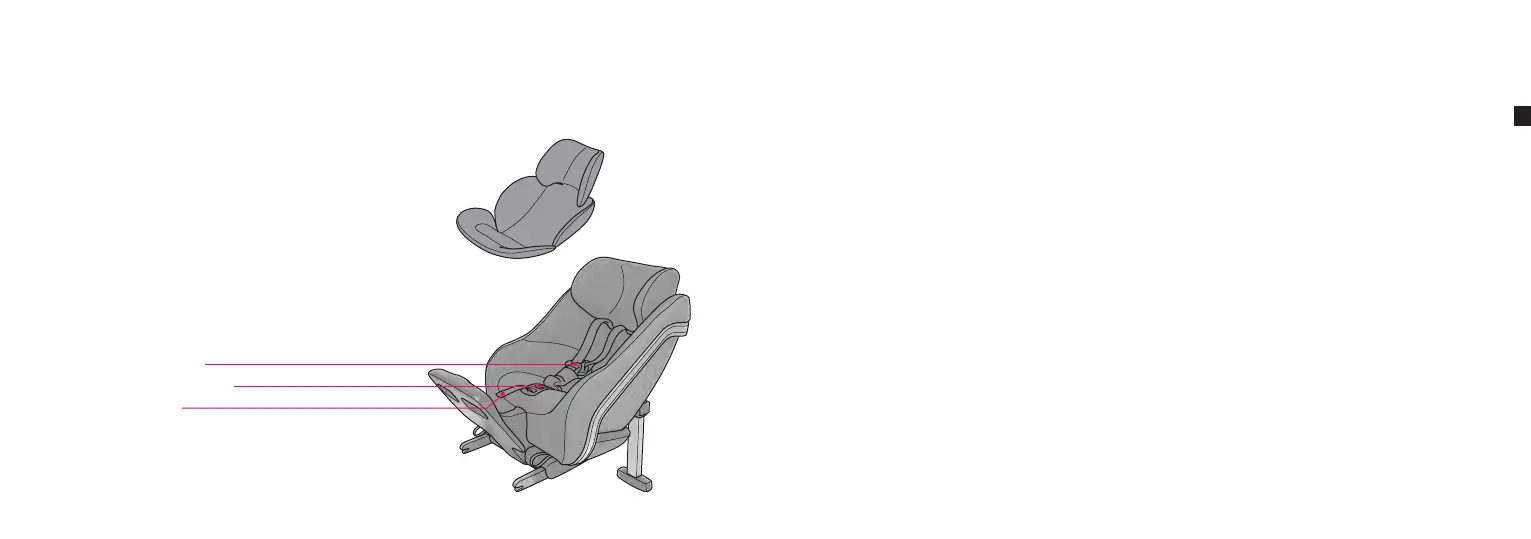

Insert for small child15Headrest
Size adjustment operation
Seat tilt operation
Support leg lock
Support leg
Safety display support leg
Baby insert
Footrest
ISOFIX system release
ISOFIX connectors
Safety indication ISOFIX system
3-Point belt system
Central adjusting device
Central harness
_ OVERVIEW
Always install the CONCORD REVERSO WITHOUT your child in it.
1a Position the CONCORD REVERSO on the required seat in the vehicle opposite to the direction of
travel.
1b Push the ISOFIX connectors (10) of the CONCORD REVERSO onto the ISOFIX receptacles of the
vehicle until they audibly engage. Check to make sure that both safety indicators (11) left and
right on the CONCORD REVERSO are GREEN.
1c Release the lock (04) and move the support leg (05) downwards until this stands firmly on the
floor. Engage the lock (04) and check to make sure that the safety indicator of the lock (04) and
safety indicator of the support leg (06) are GREEN.
1d By rotating the control of the seat inclination (03), the inclination of the CONCORD REVERSO can
be variably adjusted. Subsequently, check to make sure that all safety indications (04 & 06) are
GREEN.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
