Cable routing

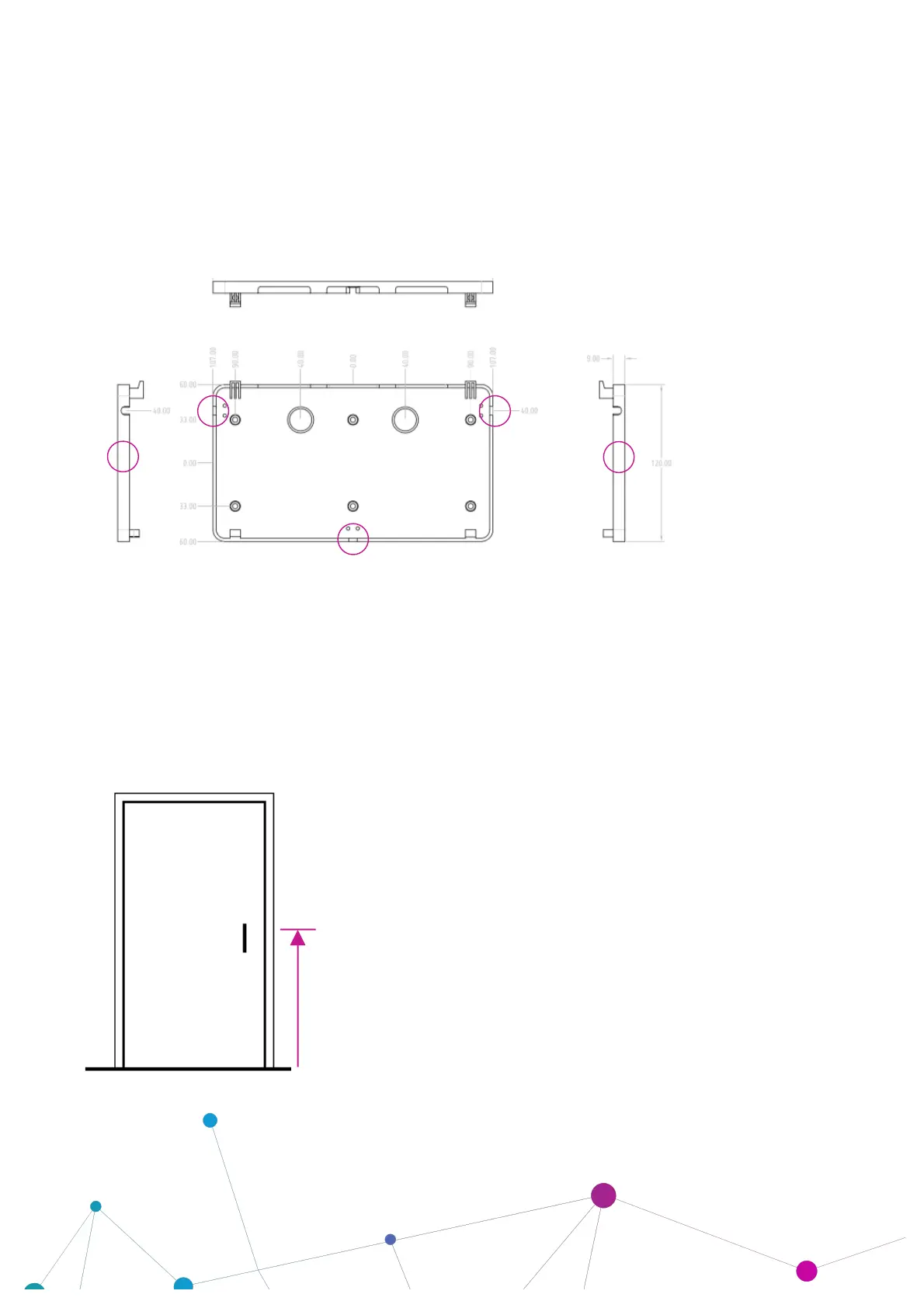

When deciding where to mount the Condeco room screen please consider the locations of the cable entry
points on the back plate on the top left and right, and the bottom center, highlighted below. Typically, the
power or network cable is running aside, or inside the doorframe, entering the mounting plate from the side.
It’s best practice if possible to fit the device on the side of the door where the handle is.
Cable entry points
Recommended screen height
The final screen height should be determined by local disability access requirements. The ADA (Americans
with Disabilities Act) Guidelines requires that the highest point of interaction is not greater than 48 inches or
1220mm. We find 1150mm – 1170mm from the bottom of the device typically a suitable height.
