CONFER CURVE STEP ADD-ON INSTRUCTIONS (Contʼd.)

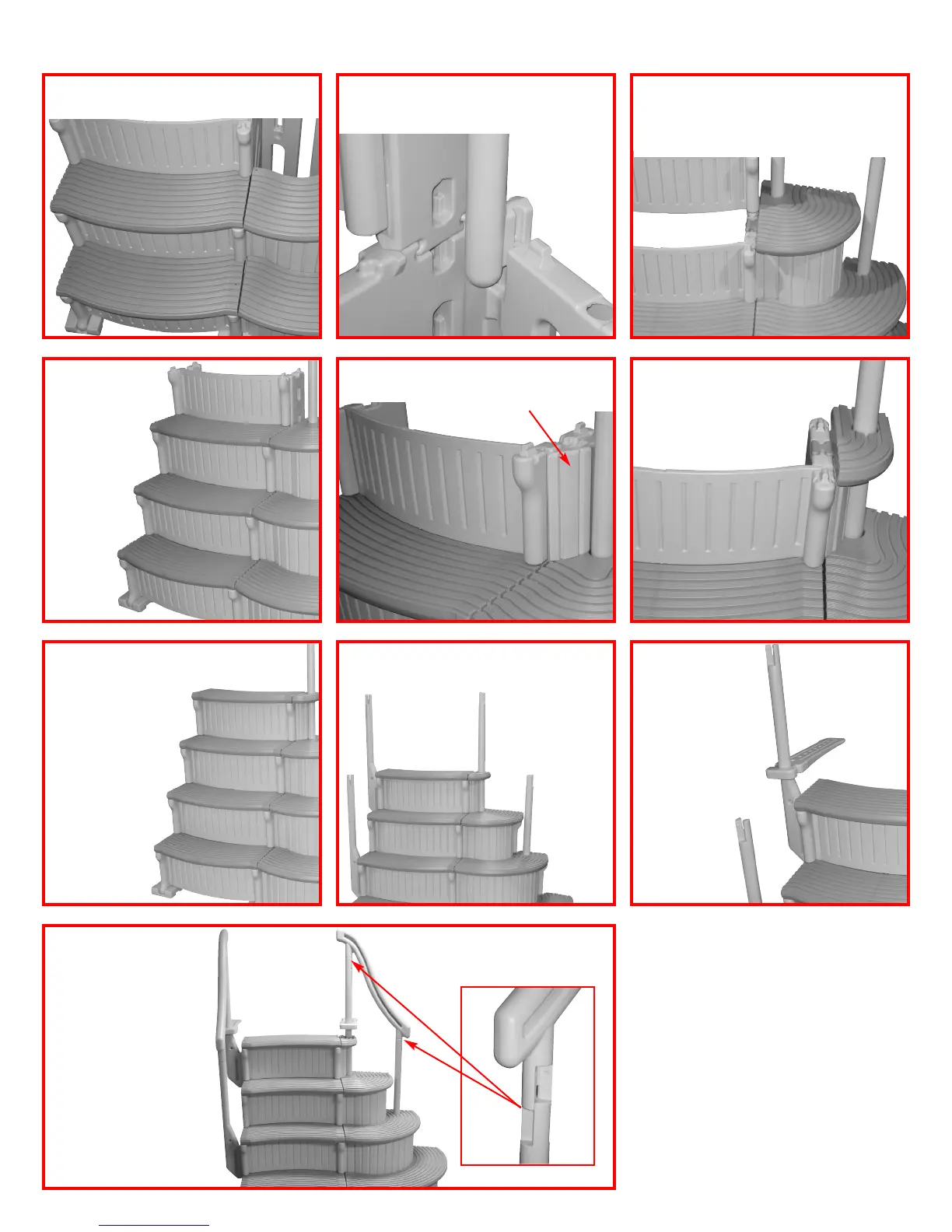

Install the second tread
[I] onto the base step
Step 33
Install the long handrail
post [L] into the upper
slot on add-on panel,
slot is marked
with #4.
Step 34
Repeat step 31 to install
the small flex riser [R]
then place the small
curved tread [S] over the handrail post
and attach the same as step 32.
Step 35
Install the third
tread [I] onto
the base step
Step 36
Slide the tread filler [T]
down between the hand
rail post and panel.
Step 37
Attach the tread extension
[U] onto the step panel [A].
Step 38
The last [Top] tread
installs different
from the previous
three. To install the
last tread [I] place
over the four tabs
located on panel
extension [D].
Using a rubber
mallet strike the
top of the tread
directly over the
tabs until seated.
Step 39
Install the two handrail
posts [E] into side panel
[A] by following steps 13
and 14. The other
two handrail posts
[E] will not be
used, save as
spare parts
or recycle.
Step 40
Place one of the
deck connectors
[F] over the
upper hand rail
post and slide
down. Check to
make sure [This
side down] is
facing down-
ward. Repeat
to install the
second part [F].
Step 41
Place handrails
[G] over the top
of handrail posts
and push down
to lock in place.
Step 42
FOLLOW STEPS
17 AND 18 TO
PLACE STEP
IN POOL.
7
