Page2

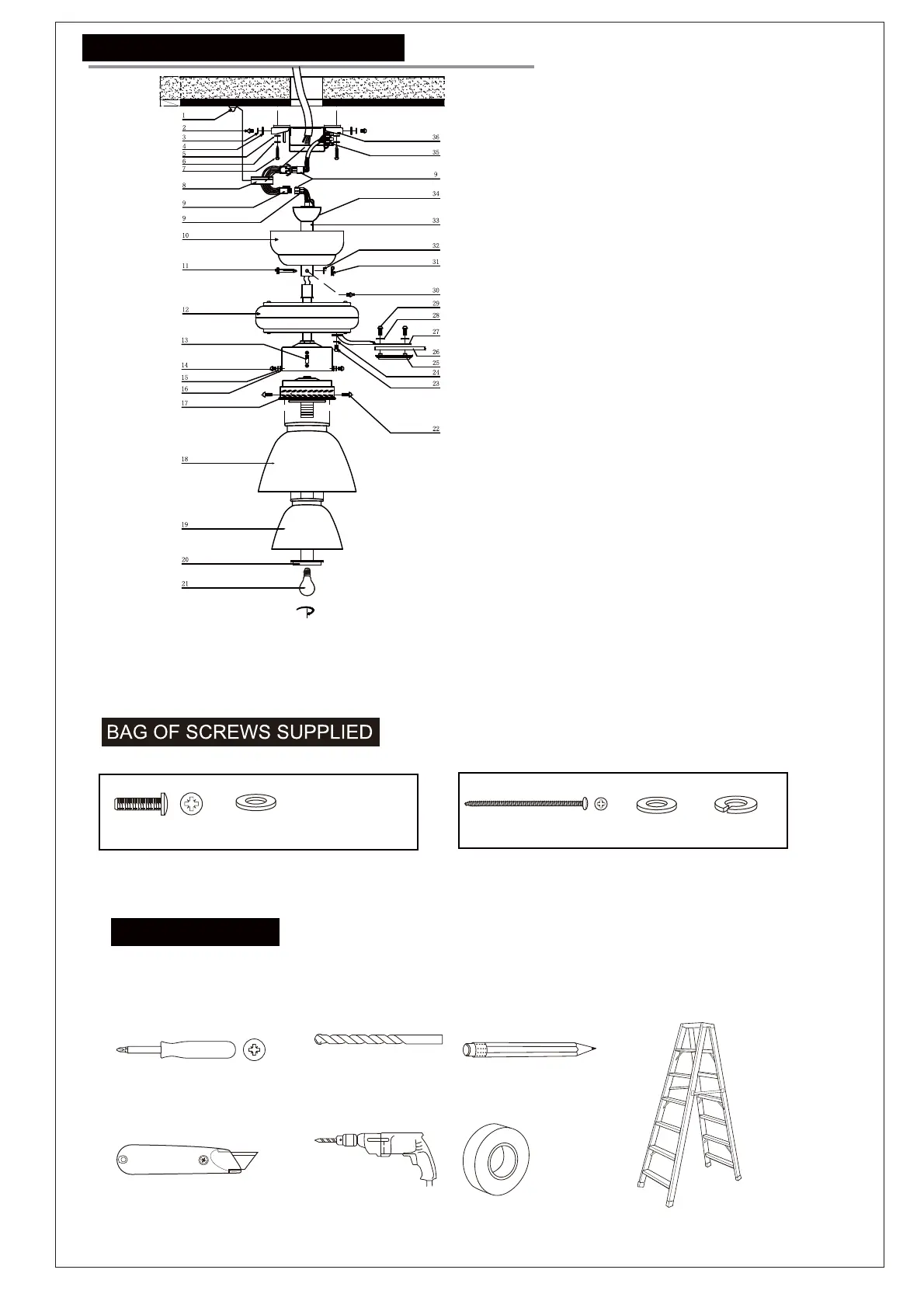

Product exploded diagram
You will need
To install your product (Tools not provided)
Phillips screwdriver Drill bit Pencil Ladder
Ø5mm
Knife Impact Drill Insulation tape
x 2
FOR BLADE
x 2 x 2
FOR MOUNTING PLATE
1. Remote control receiving sensor
2. Canopy Securing Screw
3. Canopy Securing Spring Washer
4. Canopy Securing Fixing Star Washer
5. Mounting Plate Fixing Flat Washer
6. Mounting Plate Fixing Spring Washer
7. Mounting Plate Fixing Screw
8. Remote control receiver
9. Male/Female connectors
10.Canopy
11.Cross pin
12.Fan Motor
13.Rev/Fwd Slide Switch
14.Lamp Kit Fixing Screw
15.Spring washers
16.Star washers
17.Lamp Kit
18.Big glass lamp shade
19.Small glass lamp shade
20.Plastic lamp holder ring
21.Light bulb (not provided)
22.Thumb screw
23.Blade Fixing screw
24.Blade Fixing spring washer
25.The bracket of fan blade
26.Blade
27.Blade holder
28.Blade fixing flat washer
29.Blade fixing screw
30.Set screws
31.Split pin
32.Flat washer
33.Down rod
34.Ball joint
35.Terminal block
36.Mounting plate
x 12
x 12
