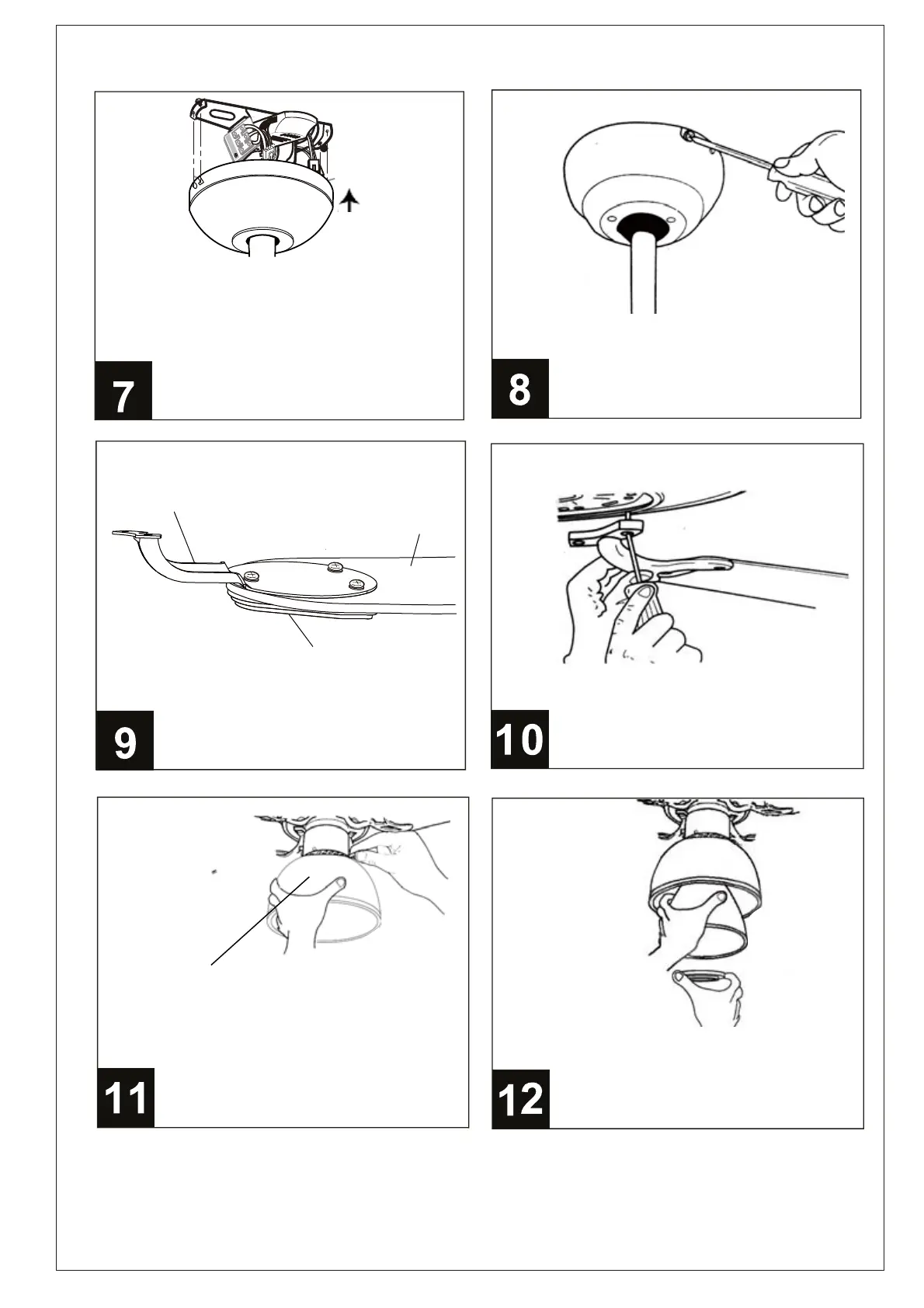

Install the fan blade sets onto the motor
by tightening the screws and spring
washers.
Install the big glass lamp shade onto the
switch housing by tightening the three
thumb screws. CAUTION: Do not use
pliers to tighten the thumbscrews. Over
tightening of the thumb screws may
crack the glass shade and cause
dangers.
Install the small glass lamp shade onto
the lamp kit by tightening the plastic
lamp holder ring.
18. Big glass lamp shade
Assemble the fan blade between the
blade bracket and blade holder, then
tighten the screws together with flat
washer.
27.Blade holder
26.Blade
25.Blade bracket
Attach canopy to the bracket by
aligning canopy side holes with the
bracket side holes. Lift fan until the
screws reach the bottom of the slots
and then rotate the canopy
counterclockwise until the screws drop
into the slot recesses.
Fix canopy onto the bracket by tightening
the screws.
