199R

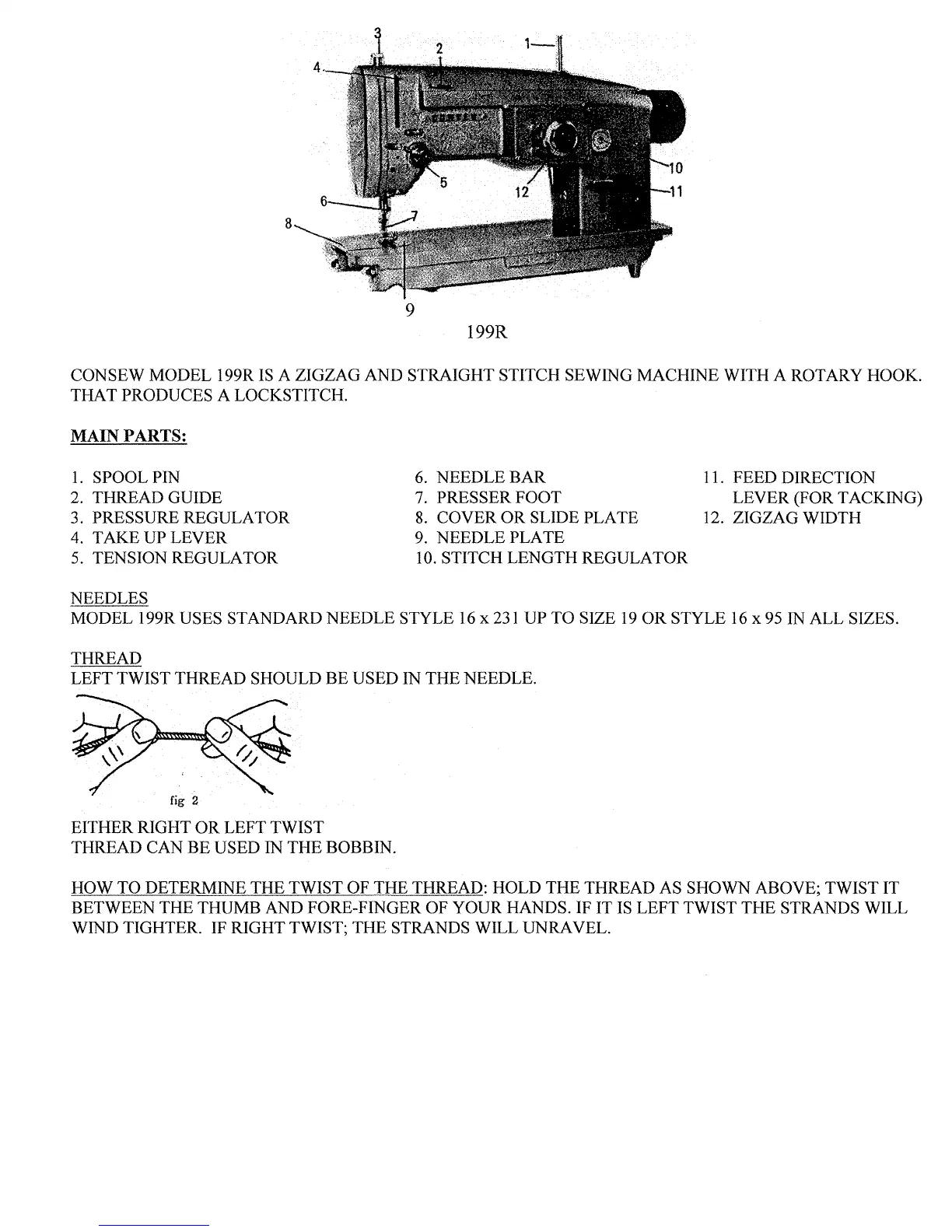

CONSEW MODEL 199R
IS
A ZIGZAG AND STRAIGHT STITCH SEWING MACHINE WITH A ROTARY HOOK.
THAT PRODUCES A LOCKSTITCH.
MAIN PARTS:
1.
SPOOLPIN
2.
THREAD GUIDE
3. PRESSURE REGULATOR
4. TAKE UP LEVER
5.
TENSION REGULATOR
NEEDLES
6. NEEDLE
BAR
7.
PRESSER FOOT
8.
COVER OR SLIDE PLATE
9. NEEDLE PLATE
10. STITCH LENGTH REGULATOR
11. FEED DIRECTION
LEVER
(FORT
ACKING)
12. ZIGZAG WIDTH
MODEL 199R USES STANDARD NEEDLE STYLE
16
x
231
UP TO SIZE
19
OR STYLE
16
x 95 IN ALL SIZES.
THREAD
LEFT
TWIST THREAD SHOULD BE USED IN THE NEEDLE.
EITHER RIGHT
OR LEFT TWIST
THREAD CAN BE USED IN THE BOBBIN.
HOW TO DETERMINE THE TWIST OF THE THREAD: HOLD THE THREAD AS SHOWN ABOVE; TWIST IT
BETWEEN THE
THUMB AND FORE-FINGER OF YOUR HANDS. IF IT
IS
LEFT TWIST THE STRANDS WILL
WIND TIGHTER. IF RIGHT
TWIST; THE STRANDS WILL UNRAVEL.
