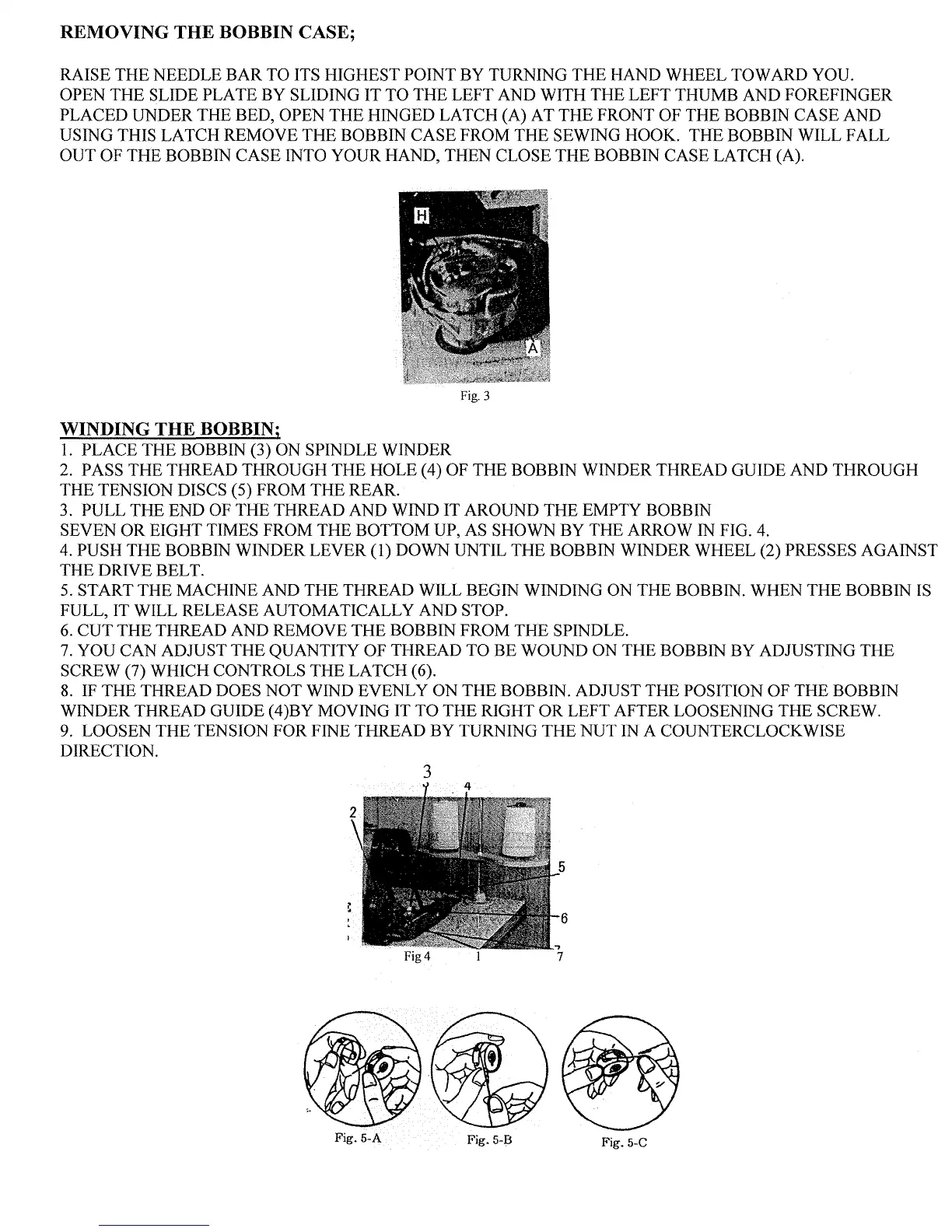

REMOVING THE BOBBIN CASE;
RAISE THE NEEDLE
BAR
TO ITS HIGHEST POINT BY TURNING THE HAND WHEEL TOWARD YOU.
OPEN
THE SLIDE PLATE BY SLIDING IT TO THE LEFT AND WITH THE LEFT THUMB AND FOREFINGER
PLACED UNDER THE BED, OPEN THE HINGED LATCH (A) AT THE FRONT OF THE BOBBIN CASE AND
USING THIS LATCH REMOVE THE BOBBIN CASE FROM THE SEWING HOOK. THE BOBBIN WILL FALL
OUT OF THE BOBBIN CASE INTO YOUR HAND, THEN CLOSE THE BOBBIN CASE LATCH (A).
Fig.
3
WINDING THE BOBBIN;
1.
PLACE THE BOBBIN (3) ON SPINDLE WINDER
2.
PASS THE THREAD THROUGH THE HOLE (4) OF THE BOBBIN WINDER THREAD GUIDE AND THROUGH
THE TENSION DISCS (5) FROM THE REAR.
3. PULL THE END OF THE THREAD AND WIND IT AROUND THE EMPTY BOBBIN
SEVEN
OR
EIGHT TIMES FROM THE BOTTOM UP, AS SHOWN BY THE ARROW IN FIG. 4.
4.
PUSH THE BOBBIN WINDER LEVER (1) DOWN UNTIL THE BOBBIN WINDER WHEEL (2) PRESSES AGAINST
THE DRIVE BELT.
5.
START THE MACHINE AND THE THREAD WILL BEGIN WINDING ON THE BOBBIN. WHEN THE BOBBIN
IS
FULL, IT WILL RELEASE AUTOMATICALLY AND STOP.
6.
CUT THE THREAD AND REMOVE THE BOBBIN FROM THE SPINDLE.
7.
YOU CAN ADJUST THE QUANTITY OF THREAD TO BE WOUND ON THE BOBBIN BY ADJUSTING THE
SCREW
(7) WHICH CONTROLS THE LATCH (6).
8.
IF THE THREAD DOES NOT WIND EVENLY ON THE BOBBIN. ADJUST THE POSITION OF THE BOBBIN
WINDER THREAD GUIDE (4)BY MOVING IT TO THE RIGHT
OR
LEFT AFTER LOOSENING THE SCREW.
9.
LOOSEN THE TENSION FOR FINE THREAD BY TURNING THE NUT
IN
A COUNTERCLOCKWISE
DIRECTION.
3
Fig. 5-A
Fig. 5-B
Fig. 5-C
