RADAR CONFIGURATION
3.3 Rev. E
3.2 Gyrocompass Configuration
In this section is possible to configure the connection of the Radar with a Gyrocompass.
Pressing the "A" button on fig 3.1.2 the following window will be displayed:

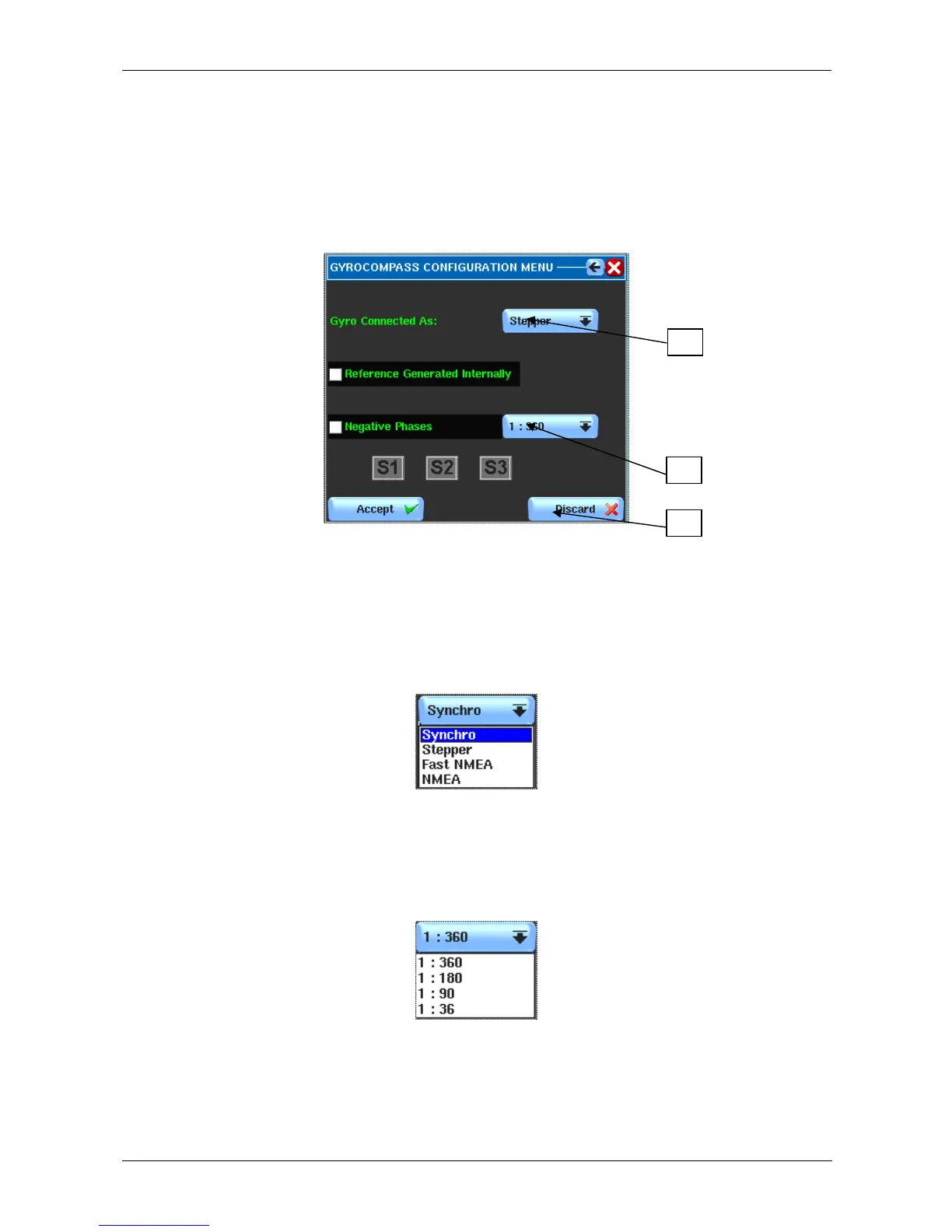

Figure 3.2.1 Gyrocompass ConfigurationMenu
The first row, Gyro Connected As, regards the type of Gyro we are using. Pressing the
button A on fig. 3.2.1 the following list will be open:
The selection changes the kind of interface used and in case of NMEA serial, the baud
rate.
By pressing the button B on fig. 3.2.1 another list will be open with the possibilities of Gyro
ratio.
The list is valid and activated only when the Gyro is not serial.
Use the list to define how many cycles of stepper or synchro are calculated for each 360°
Gyro turn.
