RADAR CONFIGURATION
3.24 Rev. E
3.11.3 MAC Address (Fig 3.11.1 -C)
This is Ethernet MAC address of the board (not settable). Part of the address is a field
assigned only to Consilium. Less significant bytes are different for any Antares PCB
manufactured.
3.11.4 TXRX Associated by Default (Fig 3.11.1 – D)

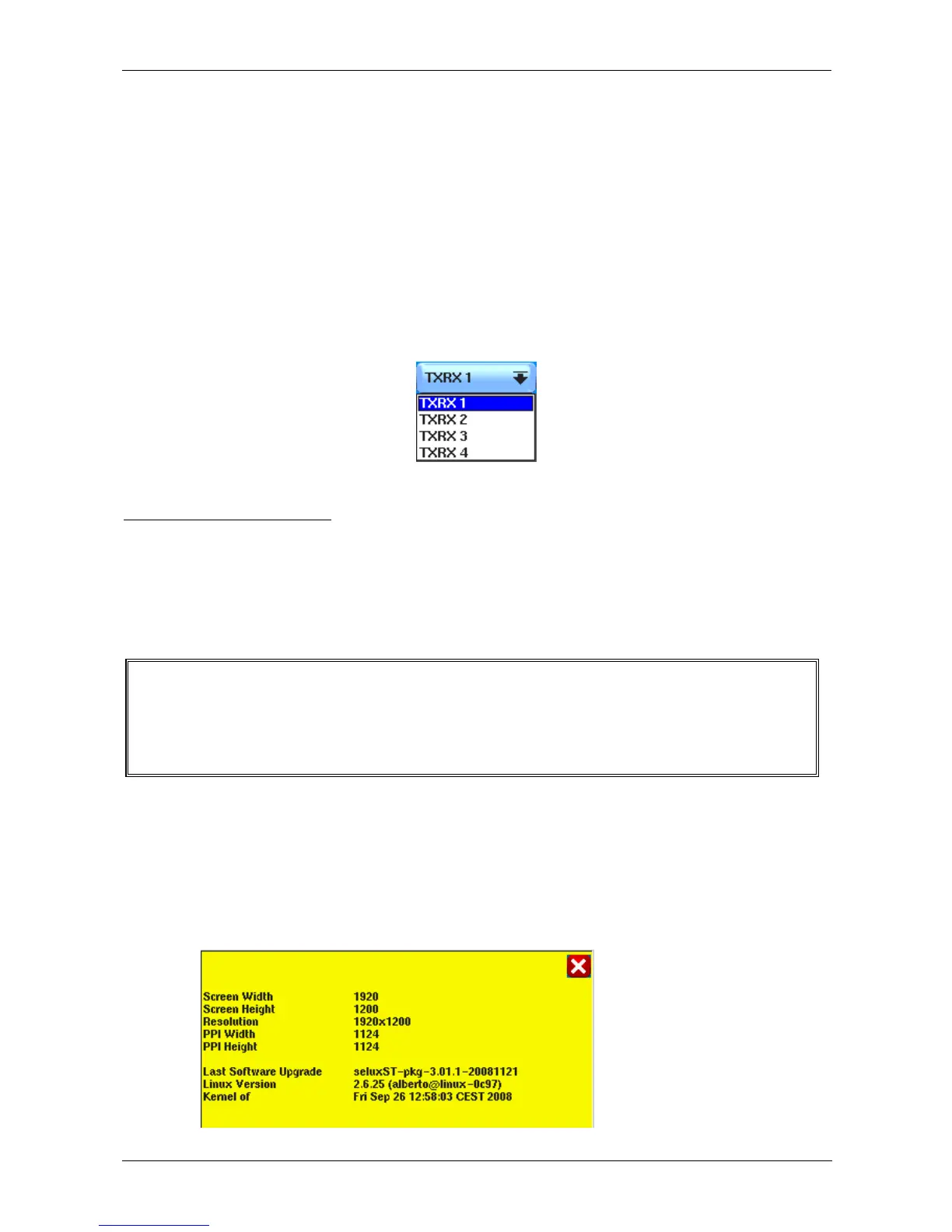

By pressing the relevant button the following list with all the transceivers connected will be
displayed:
This is not the interswitch, this list selects the TXRX to use at the start up of the system.
For example if the Port Selux Console is normally used with TXRX n 2, the selection
“TXRX2” shall be chosen in the left list, and when a blackout occurs or the system is
restarted or completely powered off and on again, the Console will automatically select the
TXRX n 2 at the restart-up.
WARNING
IF THE SETUP HAS TO BE TRANSFERRED FROM CONSOLE TO CONSOLE
TROUGH A MEMORY STICK, CHECK THAT THE DEFAULT TRANSCEIVER IS
NOT THE SAME FOR ANY OF THE CONSOLES.
3.11.5 General info(Fig 3.11.1 – E)
This window shows some information about the screen resolution, PPI pixel size and the
exact software version installed on the system.
