ENGLISH
CONTRACOR
®
CAB-110P/CAB-135P Art. 15205/15206
39

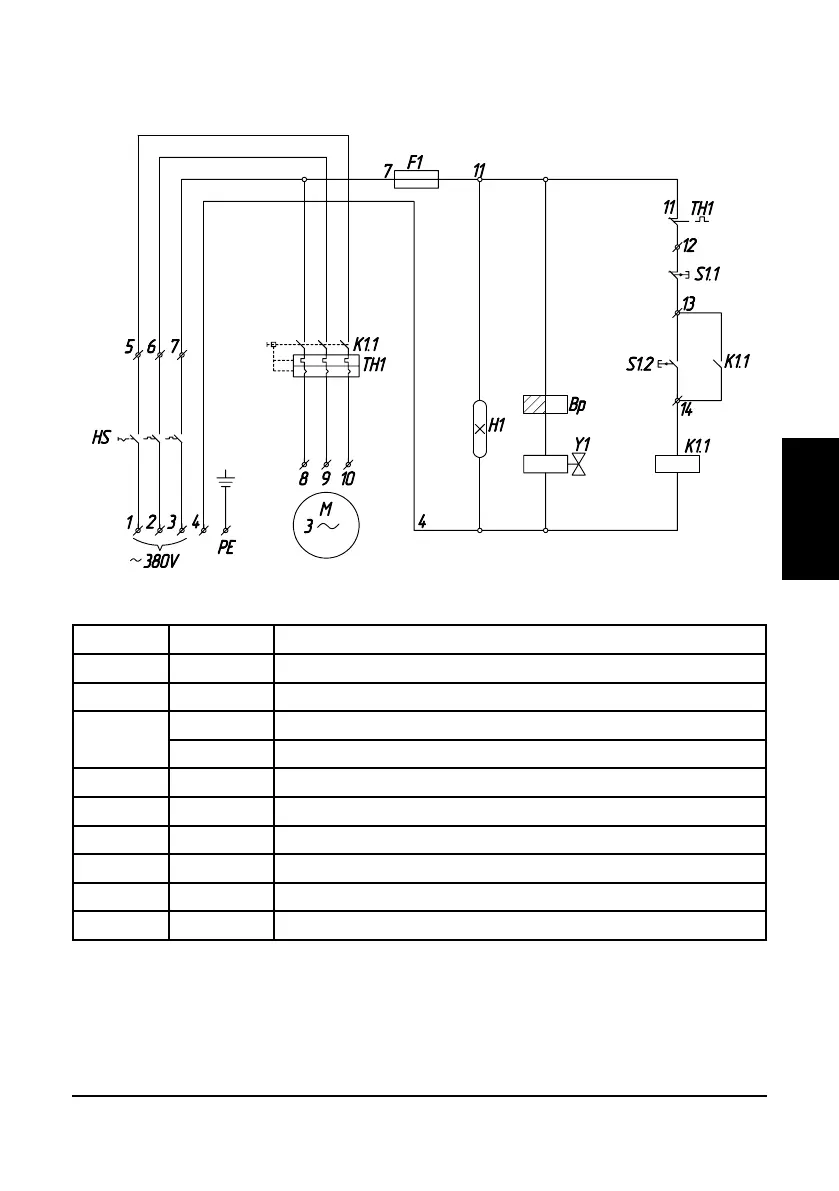

7.5. Electric circuit diagram
Picture 20. Electric circuit diagram CAB-110P/ 135P
Pos. No Order code Description
S1 16099 Double pushbuttons ON / OFF
HS 16100 Main switch 0-I
M
16134 Electric motor 1,1 kW (for CAB-110)
16135 Electric motor 1,5 kW (for CAB-135)
K1.1 16104 Contactor 3-poles
H1 16121 Light assembly 2x30 Watt
Bp 16106 Electronic timer for pulse-jet valve
Y1 15974 Diaphragm pulse valve 3/4”, 220 V~
TH1 16105 Thermal relay
F1 16133 Fuze
