Specifications
Front and Rear View

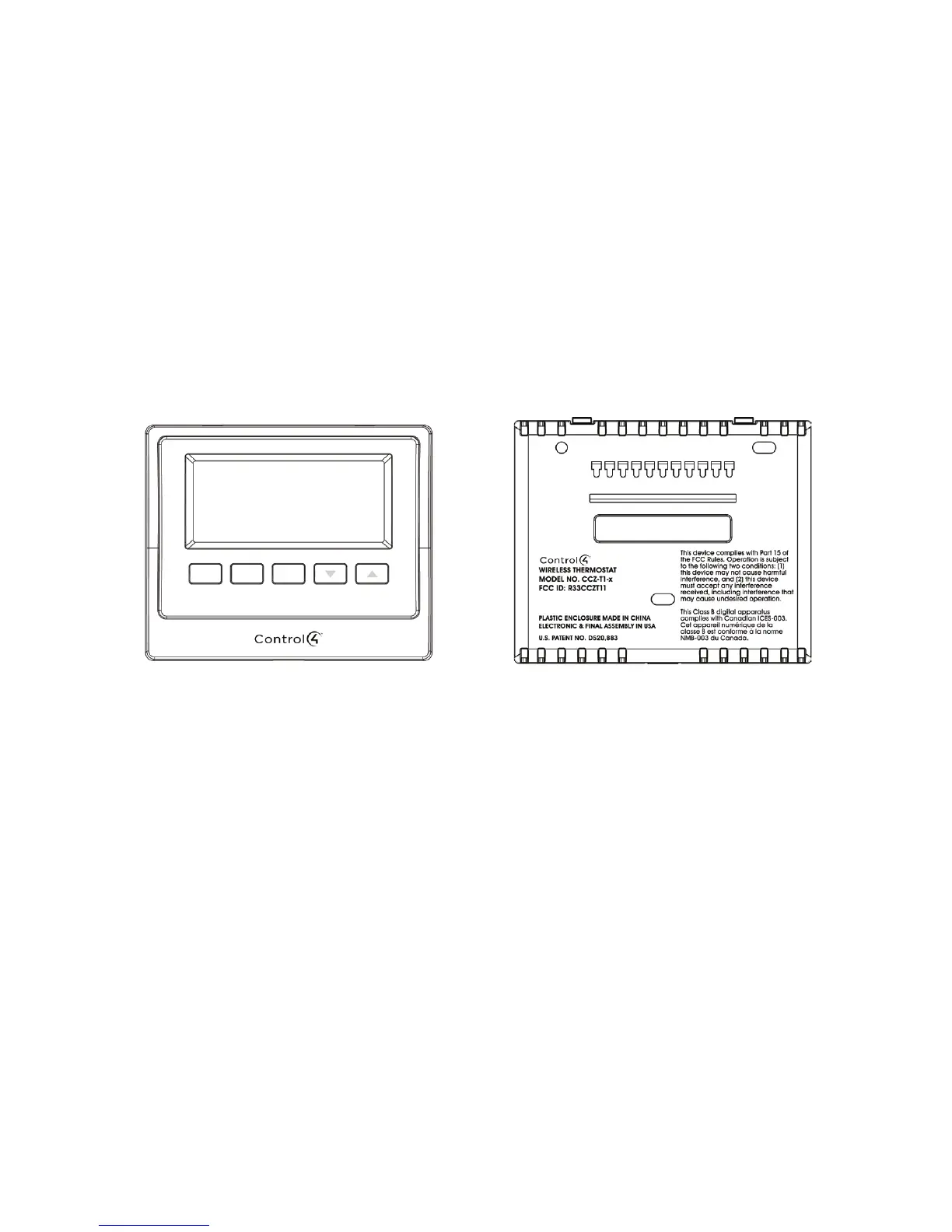

Figure 1. Faceplate Figure 2. Rear Plate
Recommended Wiring: 22 AWG (36 ft. max.)
18 AWG (100 ft. max.)
Power Source: 24VAC and 3 volt battery
Power Usage: 1/10W at 24VAC, 50/60 Hz
Set Point Temperature Range: 40˚ F to 90˚ F (5˚ C to 32˚ C)
Operating Temperature: 39˚ F to 131˚ F (4˚ C to 55˚ C)
Storage Temperature: 14˚ F to 185˚ F (-10˚ C to 85˚ C)
Operating Relative Humidity: 0 to 95% (non-condensing)
Dimensions (H x W x D): 4.5” x 3.7” x 1.2”
Communications: ZigBee (IEEE 802.15.4) 2.4 GHz, 15-channel, spread spectrum radio
3
