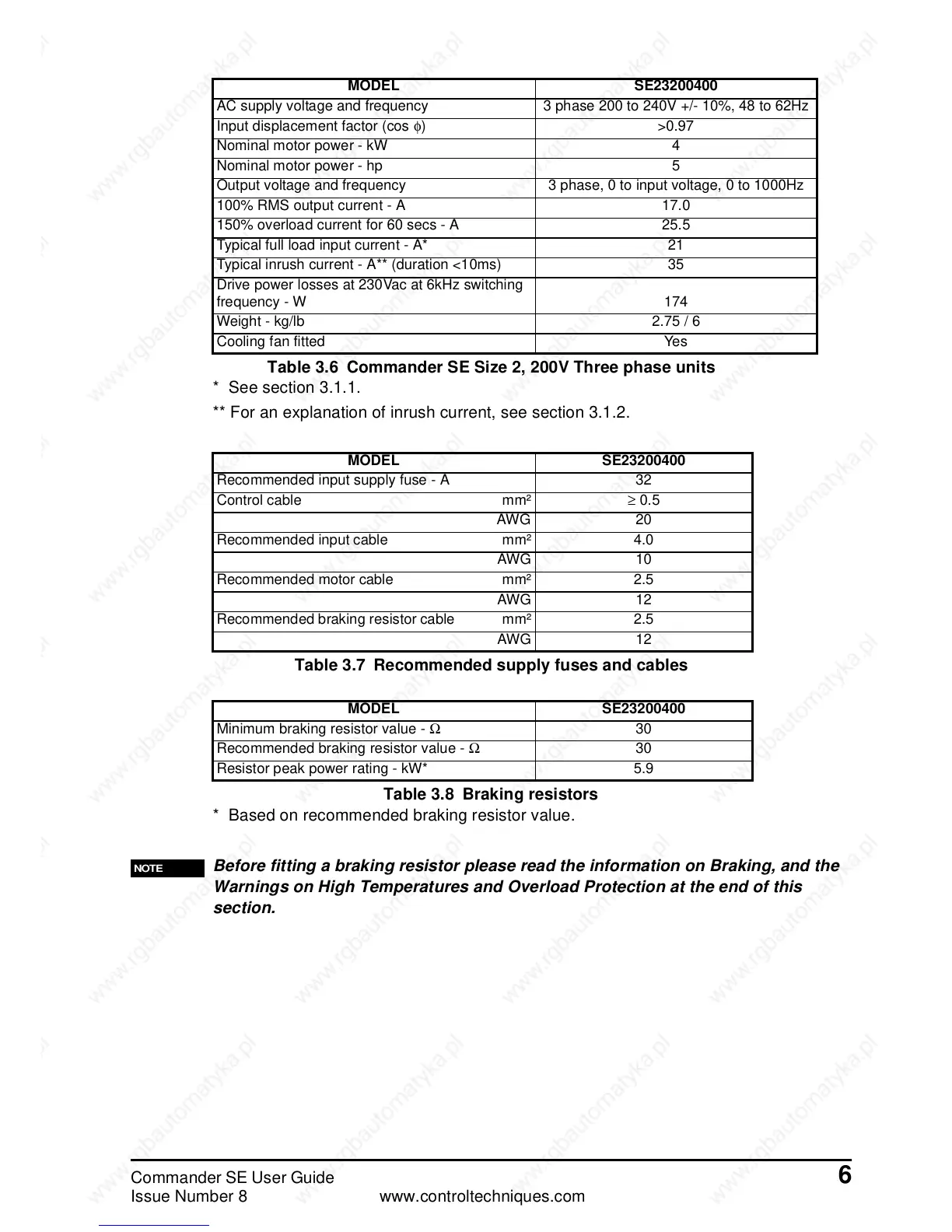

Commander SE User Guide 6
Issue Number 8 www.controltechniques.com
Table 3.6 Commander SE Size 2, 200V Three phase units
* See section 3.1.1.
** For an explanation of inrush current, see section 3.1.2.
Table 3.7 Recommended supply fuses and cables
Table 3.8 Braking resistors
* Based on recommended braking resistor value.
Before fitting a braking resistor please read the information on Braking, and the
Warnings on High Temperatures and Overload Protection at the end of this
section.
MODEL SE23200400
AC supply voltage and frequency 3 phase 200 to 240V +/- 10%, 48 to 62Hz
Input displacement factor (cos φ) >0.97
Nominal motor power - kW 4
Nominal motor power - hp 5
Output voltage and frequency 3 phase, 0 to input voltage, 0 to 1000Hz
100% RMS output current - A 17.0
150% overload current for 60 secs - A 25.5
Typical full load input current - A* 21
Typical inrush current - A** (duration <10ms) 35
Drive power losses at 230Vac at 6kHz switching
frequency - W 174
Weight - kg/lb 2.75 / 6
Cooling fan fitted Yes
MODEL SE23200400
Recommended input supply fuse - A 32
Control cable mm² ≥ 0.5
AWG 20
Recommended input cable mm² 4.0
AWG 10
Recommended motor cable mm² 2.5
AWG 12
Recommended braking resistor cable mm² 2.5
AWG 12
MODEL SE23200400
Minimum braking resistor value - Ω 30
Recommended braking resistor value - Ω 30
Resistor peak power rating - kW* 5.9
NOTE
