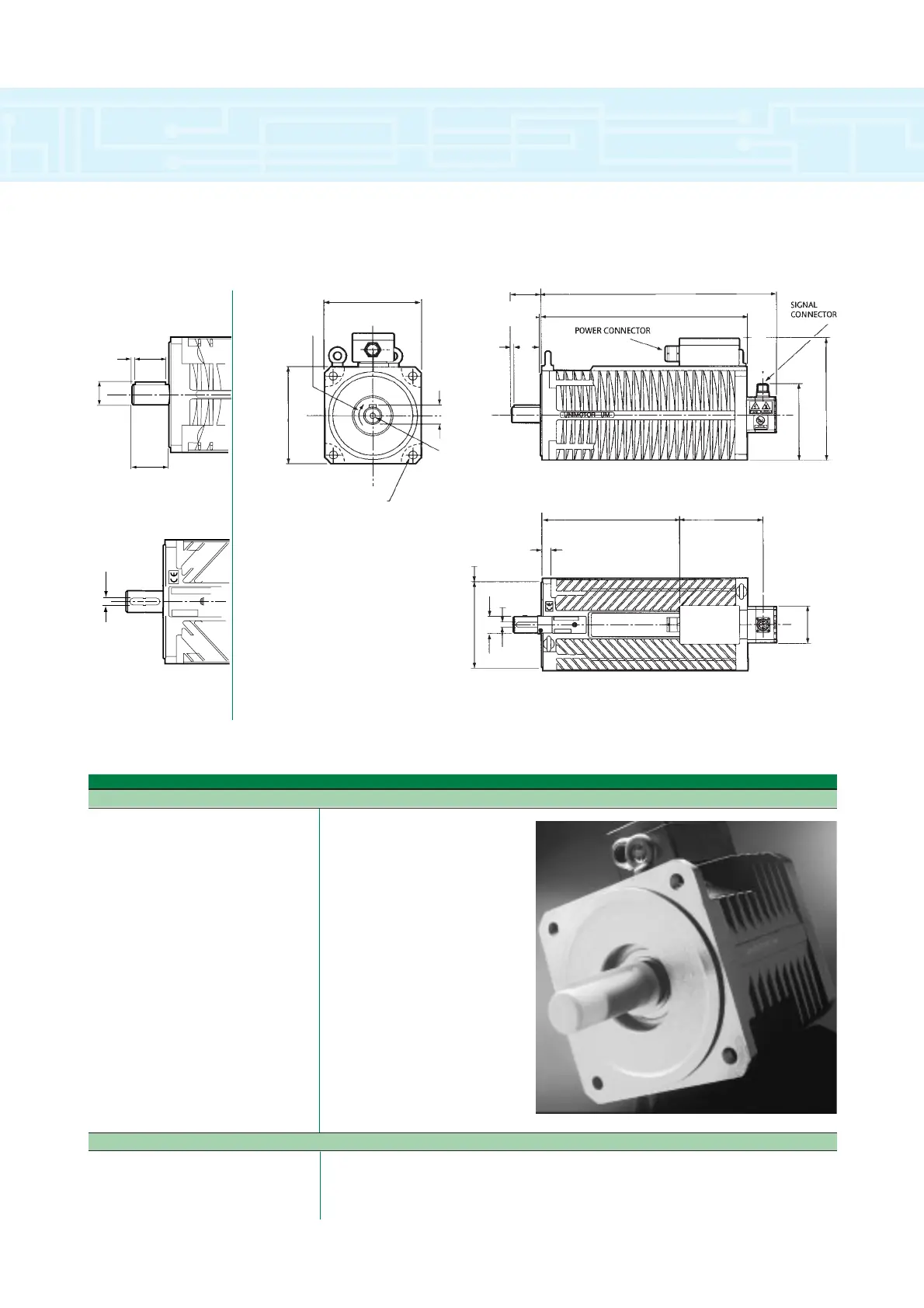

Shaft Key Detail
(Option A)
FRAME SIZE 190
Dimension / Length suffix A B C D
A Length Overall (Unbraked) 273 327 381 435
A Length Overall (Braked) 327 381 435 489
B Body Length (Unbraked) 210 264 318 372
B Body Length (Braked) 264 318 372 425
C Flange Square 190.0
D Flange Thickness 14.5
E Register Diameter 180.0 (J6)
F Register Length 4.0
G Terminal Box to Power Connect C/L 173.0
G
1
Terminal Box to Front Flange (Unbraked) 69 123 177 231
G
1
Terminal Box to Front Flange (Braked) 123 177 231 285
H Fixing Holes Diameter 14.5 (H14)
J Fixing Hole p.c.d. 215.0
K Overall Height 256.0
L Signal Connector Height 161.1
N Shaft Length (front) 58.0
P Shaft Diameter (front) 32.0
Shaft Output Key Dimensions (option A)
R Shaft Key Length 49.0
S Shaft Key Height 35.0
T Shaft Key to Shaft End 3.1
V Shaft Key Width 10.0
G1 (REF)
G (REF)
N
R
T
K
L
C (REF)
DIRECTION
OF ROTATION
FOR UVW=
CLOCKWISE
4 HOLES
DIA ‘H’
EQUI-SPACED
ON ‘J’ P.C.D.
C
S
A (MAX)
B (MAX)
E
D
75.0
P
V
1 HOLE
DRILL 34.0
DEEP &
TAP M12 x
1.75 - 6H
x 28 DEEP
F
motor installation
