Drive Communications
UD71 Serial Communications Module
● RS232 communications for easy commissioning and
drive programming
● RS485 communications for industrial process control
Distributed Applications
● UD70 Modbus Module (19.2 Kbps)
● UD73 Profibus DP Module (1.5 Mbps)
● UD74 Interbus S Module (0.5 Mbps)
● UD76 Modbus+ Module (1 Mbps)
● UD77 DeviceNet (0.5 Mbps)
● UD75 CTNet Module (5 Mbps)
● Peer to peer communications
● Distributed control
● Simplifies high performance
industrial applications
Easy Applications
UD78 High Performance Servo Module
● >16 bit analogue input for precise position control
● Accurate tracking of small input signal changes with
<150µV deadband
● 24V back-up tracks encoder position when
mains loss is experienced
● RS485 communications
Feedback Device

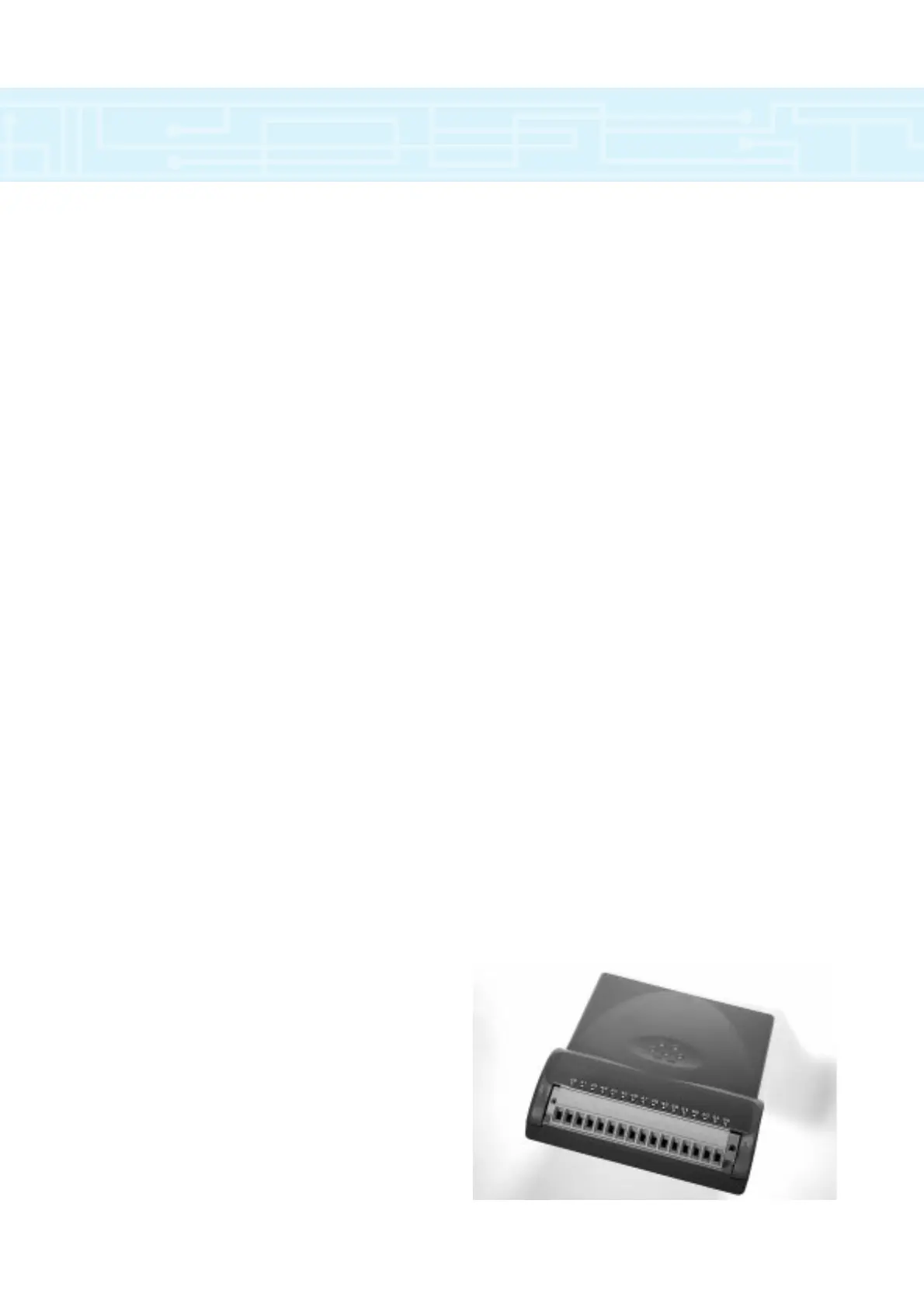

UD50 Extended I/O
● Low cost external control
● 2 N/0 relays
● 3 Digital inputs
● 3 Digital I/0
● 2 Analogue inputs
● 1 Analogue output
UD51 Second Encoder
● Master/Slave capability for multiple drive control
(Digital Lock)
● Quadrature or frequency and direction reference
● Freeze input
● Simulated encoder output
UD52 Sin/Cos Encoder
● High precision positioning
● 500,000 ppr
● Single or multi-turn
● Absolute position tracked
● Freeze input
UD53 Resolver Feedback
● Easy expansion of drive for use in rugged and
demanding environments
● Simulated encoder output
Drive Set Up
UD55 Cloning Module
● Easy set-up of multiple drives
● Simplifies the transfer of parameters between Drives
● Stores 8 full parameter sets
options
