ISO 9001
ASSEMBLING

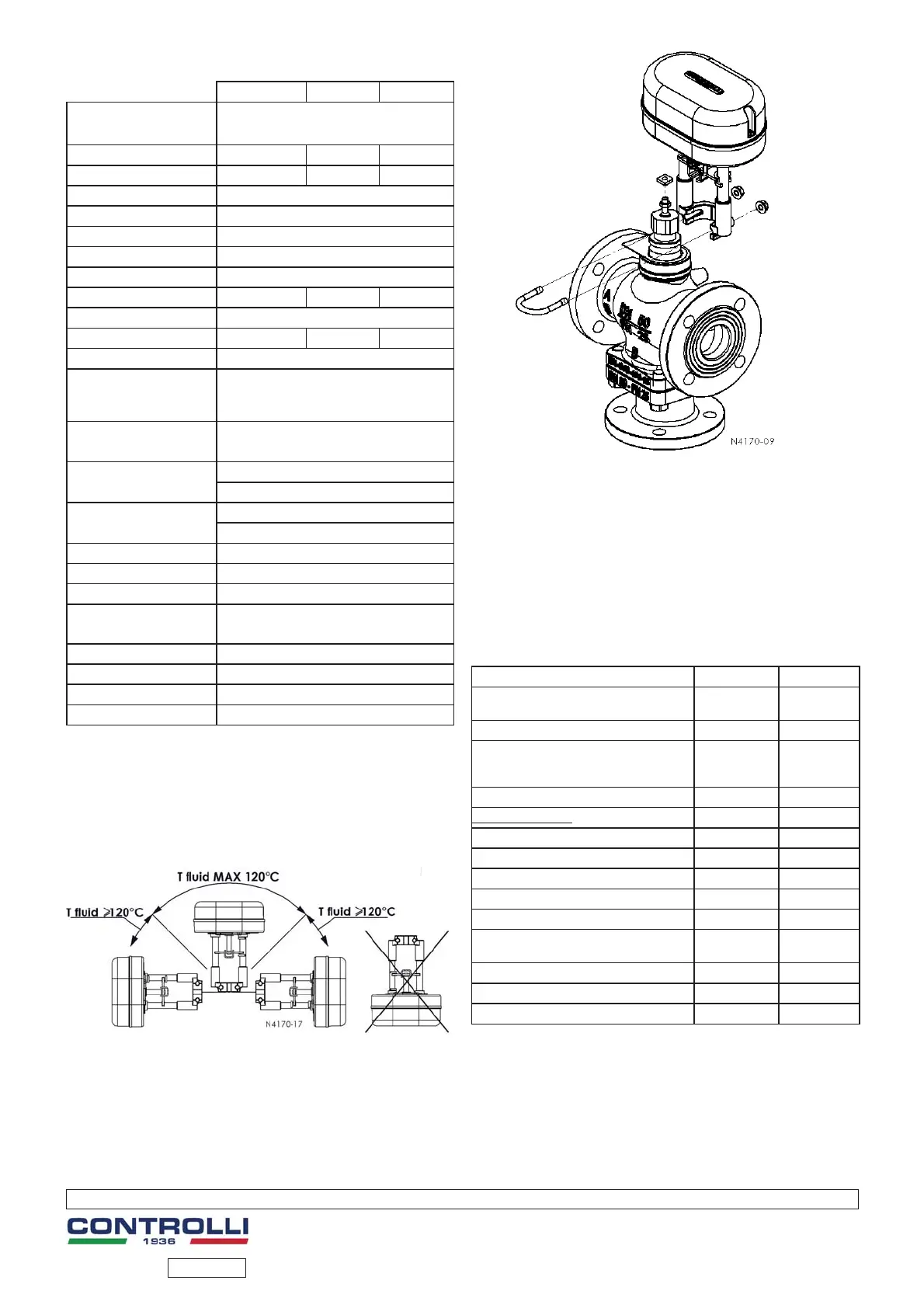

The actuator can be mounted with any orientation but never
up-side down. When the fl uid temperature exceed 120°C the
actuator shall be mounted leaning 45°.
To mount the actuator on to a valve, position the valve stem to
the bottom of its travel, slide the actuator onto the valve neck,
adjusting with the manual override the screw jack position so
the square nut on the valve spindle fi ts into the groove on the
cross bar. Then slide the brace into the groove on the valve
neck and secure the nuts.
See mounting instructions for full details (MVE_DIM196).
MAINTENANCE
The actuator is free of maintenance.
ACCESSORIES
DMVE Endpoint Auxiliary Switches
248 Yoke Heater (Suggested when the fl uid temperature
is below 0°C)
TECHNICAL FEATURES
1st Issue rev. a 04/12 2 DBL388e
MVE506/S MVE510/S MVE515/S
Supply voltage L1 Ln
AC: 24 Vac ±20% 50-60Hz
DC:22-30 Vdc (Reference Ln)
Power consumption (running) 13 VA / 6 W 18 VA / 8W 21 VA / 11W
Power consumption (Holding) 11 VA / 5 W 11 VA / 5 W 13 VA/7W
Running time
Modulating 5-15 mm 15 (s)
Modulating 15-25mm 20 (s)
Modulating 25-60 mm 30 (s)
Increase/decrease (s) 60
Transformer Size (VA) 20 30 50
Stroke (mm) 5-60 mm
Force (N) 600 1000 1500
Duty cycle max 50%/60 minutes
Analog input Y M
Voltage 0-10 V - impedance > 100 KΩ (range:
0-10/2/10 0-5/2-6 5-10/6-10)
500 Ω (range 4-20mA)
Digital inputs Y1-Y2
Connection to L1 or Ln when powered in AC
Connection to Ln only when powered in DC
Output G1
Voltage 16 Vdc ± 0,5 V
Max Load 25 mA,
Output Y
Voltage 2-10 Vdc (0-100%)
Max Load 2 mA
Ambient temperature Operation and storage -10 / +50 °C
Ambient Humidity max 90% RH
Protection degree IP54
Standard
Emission/Immunity EMC 2004/108/CE according
to EN 61326-1:2006 standard
Material Housing: Aluminum - Cover: ABS plastic
Color Aluminum / White
Weight (Kg) 1.5 kg
Dimensions (mm) Refer to the picture on the page 6
Linkage MVE MVES
Current Controlli valves
(except for 2TGB.F/3TGB.F PN16)
(not required) /
2TGB.F/3TGB.F PN16 / (not required)
Controlli valves with threaded M40
connections
(except for VMB/VSB/VSBF/VMBF PN16)
AG51 /
VMB/VSB/ VSBF/VMBF PN16 AG52 AG63
Other manufacturers
Landis * AG 60-03 /
Danfoss (VR/VF (S) models) AG60-07 /
TAC DN15-V298 AG 60-08 /
TAC DN15-V2XX/V3XX AG 60-09 /
Honeywell** AG 60-10 /
Airtek
AG 60-11/AG60-
12
/
Johnson Controls code VB7816-2111 AG 66 /
Johnson Controls code BM-3018-3300 AG 67 /
Tac Venta (not required) /
(/) this model can not be assembled
(*) valid for following models: VVF31... DN 25–80/VVF45... DN 50/VVG41... DN
15-50/VXG41... DN 15-50/VVF51... DN 15-40/VVF52... DN 15-40/VXF31... DN
25–80/VXF61... DN 15–50/VVF61... DN 15–50/VXG11... DN 25–40/VVG11...
DN 25–40/VFG34... DN 25–40
(**) valid for the followign models: M6: V176A. B, V538C
1/4”: V5011A
