STANDARD LEDs BEHAVIOUR

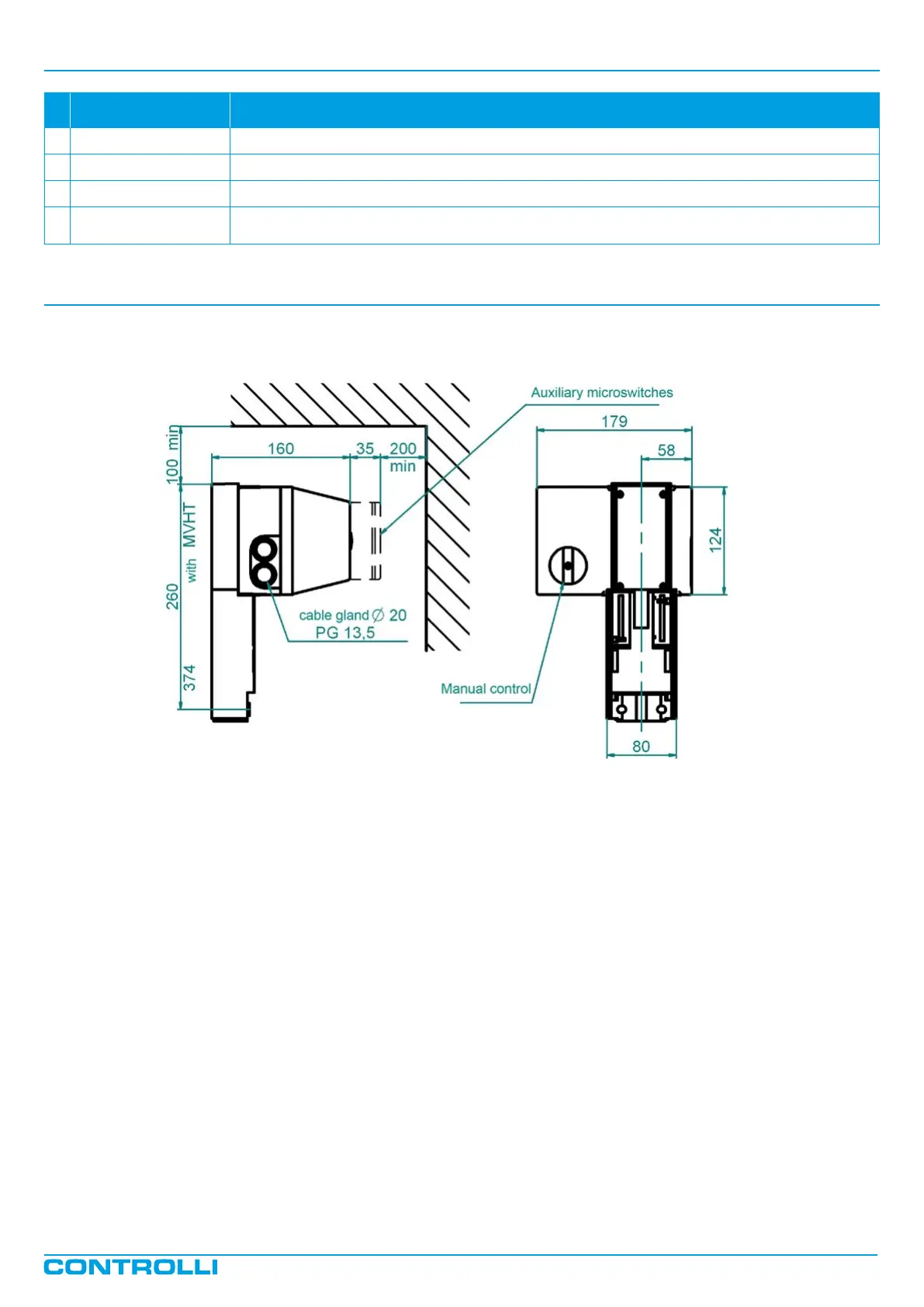

DIMENSIONS [mm]
N° LED ACTUATOR STATUS
1 GREEN ON The actuator arrived at the extreme point of the stroke read
2 GREEN BLINKING The actuator arrived at the intermediate point of the stroke read
3 RED GREEN BLINKING The actuator is reading the stroke or it is going to initial position
4 RED GREEN ON
Manual control ON, the actuator ignores the control signal.
ATTENTION! The electronic board is electrically supplied
