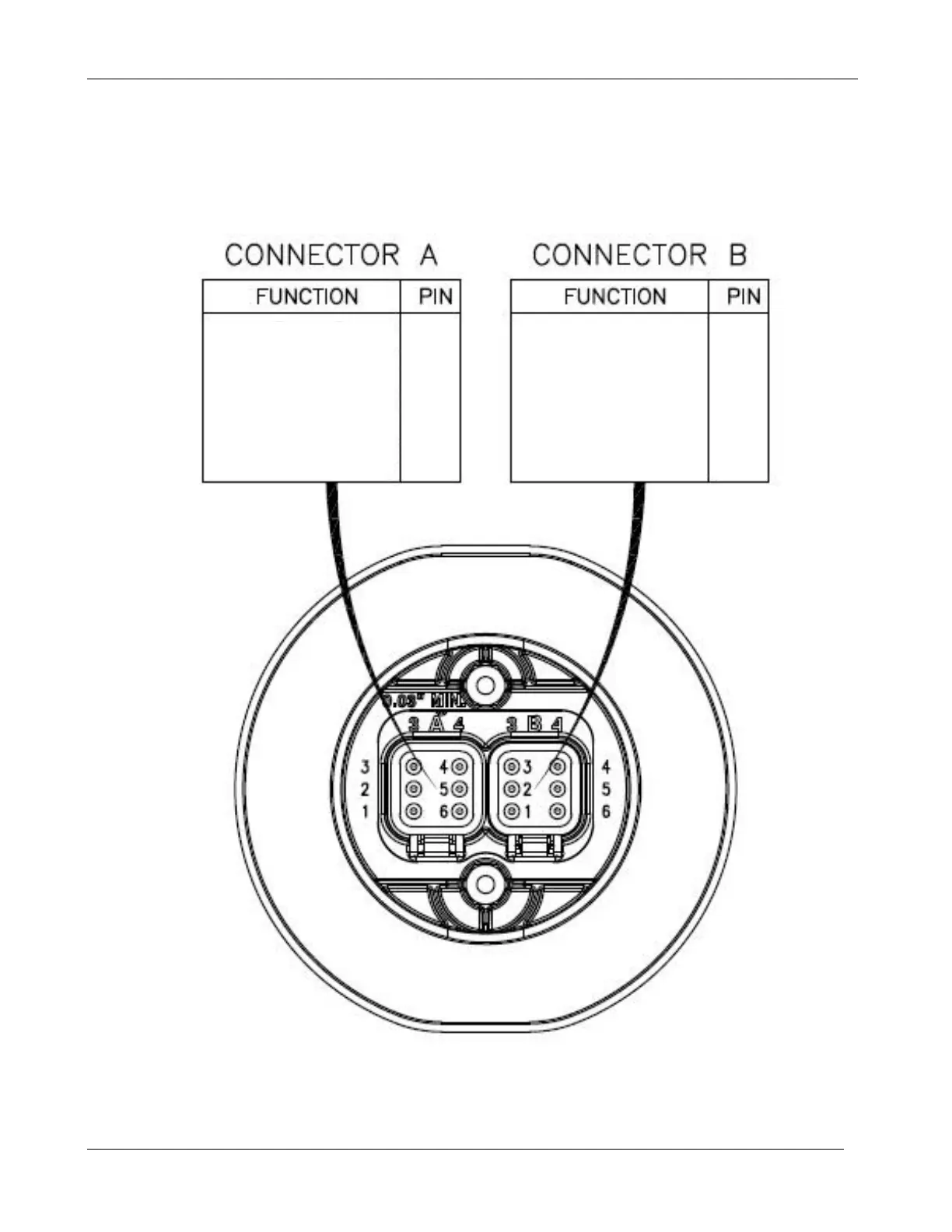

CONNECTOR INFORMATION
BATTERY +
CAN HIGH
CAN LOW
DIGITAL INPUT 1
FUEL LEVEL
BATTERY -
1
2
3
4
5
6
FUEL / RUN
THROTTLE UP
DIGITAL INPUT 4
DIGITAL INPUT 5
THROTTLE DOWN
PRE + ALARM HORN
1
2
3
4
5
6
