Convaid Cruiser 12 - Angle Adjustable Swing Away Footplate Assy Kit - Right

www.convaid.com20
Cruiser 12
Close-up
FOOTPLATE
996013
QTYDESCRIPTIONPART NUMBERITEM
1
CX-10 Pivot Footplate Assy RH
5044861
1
Footplate Adjustment Tube RH
5009702
1Footrest Extens. Housing Assy5006903
1Tube Connector 7/8" Heavy Duty100017
4
2Screw 1/4"-20 x 1-1/2" Flat Skt100262
5
1Detent Pin With Webbing Assembly5038796
1Thread Locker-Medium-Vibra-tite100690
7
2
57
4
1
Cruiser 10-12 Small Angle Adjustable Footplate Assembly Kit RH

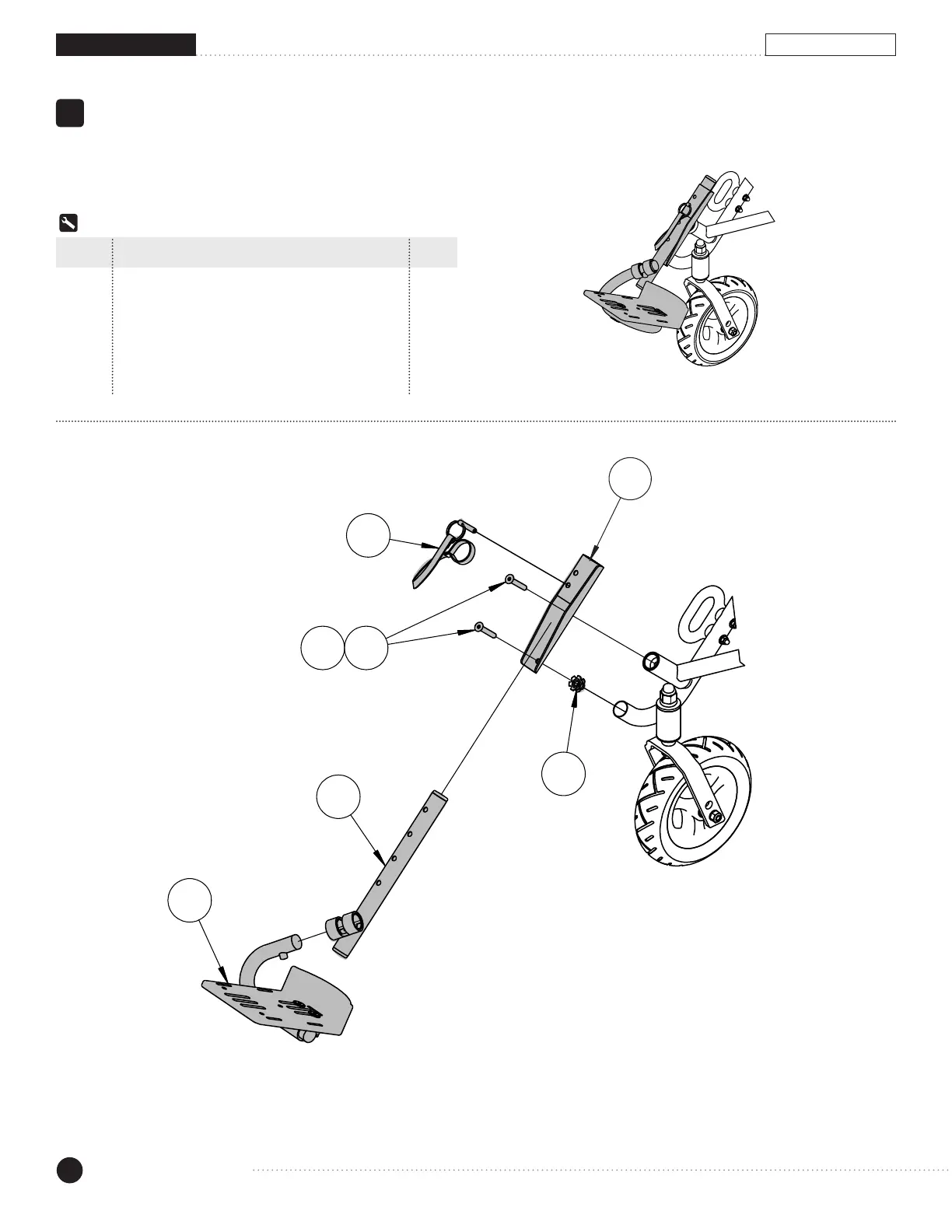

Exploded
Assembled
6
996011
QTYDESCRIPTIONPART NUMBERITEM
1
CX-10 Footrest Assembly, RH
5049881
1
Footplate Adjustment Tube RH
5009702
1Footrest Extens. Housing Assy5006903
1Tube Connector 7/8" Heavy Duty100017
4
2Screw 1/4"-20 x 1-1/2" Flat Skt100262
5
1Detent Pin With Webbing Assembly5038796
1Thread Locker-Medium-Vibra-tite100690
7
6
57
4
1
2
Cruiser 10-12 Small Footplate Assembly Kit RH
Assembled
Exploded
Assembled
3
Angle Adjustable Swing Away Footplate Assy Kit - Right
Item Description Qty
1 CX-10 Pivot Footplate Assembly, RH 1
2 Footplate Adjustment Tube, RH 1
3 Footrest Extension Housing Assembly 1
4 Tube Connector 7/8" Heavy Duty 1
5 Screw 1/4"-20 x 1-1/2" Flat Skt 2
6 Detent Pin With Webbing Assembly 1
7 Thread Locker-Medium-Vibra-tite 1
996013
#
Kit Includes
