Convaid Cruiser 12 - Brake Assy for Rolko Wheels - Left

www.convaid.com36
Cruiser 12
Close-up
996005
QTYDESCRIPTIONPART NUMBERITEM
1
CX/ME/CB/EZ/SFT Parking Brake Assembly LH
5068101
1Rolko Foot Brake Lever Assy, LH5081452
2
Bolt 1/4"-28 x 1-3/4" Socket Button Hd Alloy Steel
1007513
1Locknut 1/4"-20 Jam Flexlock1001124
3
Nylon Washer 1/4" x 3/4" x 1/8"
1004785
3Coved Washer 3/4"1000656
5
Washer 7/16" AN-960-716
1000907
1Bolt 1/4"-20 x 3/4" Socket Button Head1004818
1
Bolt 1/4"-28 x 1-3/4" Socket Button head
1007519
4
Nylon Washer 1/4" x 11/16"10001310
3Washer 1/4" AN-960-41610008911
2
Locknut 1/4"-28 Flexlock Black Zinc
10004512
1Locknut 1/4"-20 Jam Flexlock10011213
1
Nylon Washer 1/4" x 1/2"
10002514
1Thread Locker-Medium-Vibra-tite10069015
Axle
Axle Nut
1
2
3
4
15
5
6
7
7
8
9
10
11
1215
5
6
14
12
11

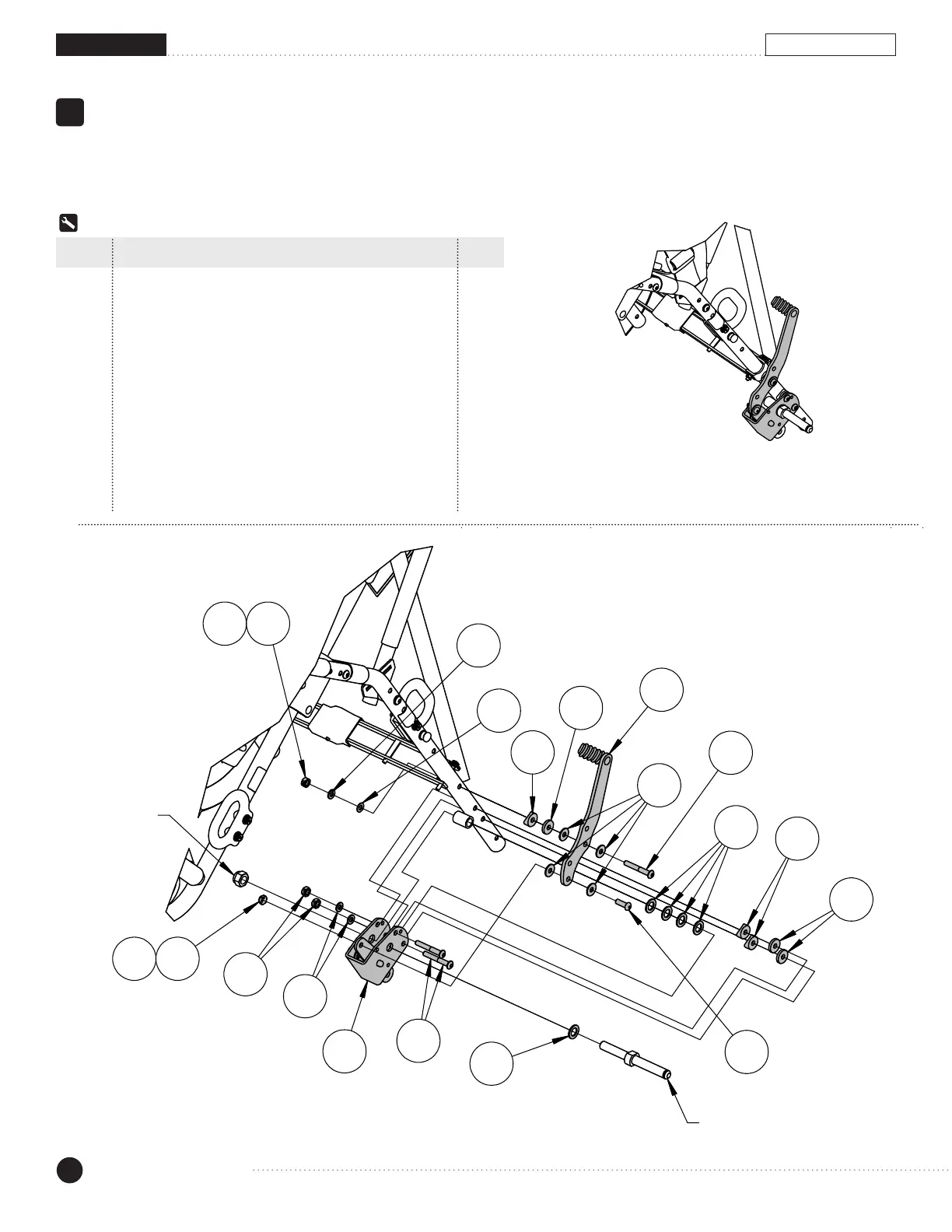

Cruiser 10-12 Brakes LH
Assembled
Exploded
996005
QTYDESCRIPTIONPART NUMBERITEM
1
CX/ME/CB/EZ/SFT Parking Brake Assembly LH
5068101
1Rolko Foot Brake Lever Assy, LH5081452
2
Bolt 1/4"-28 x 1-3/4" Socket Button Hd Alloy Steel
1007513
1Locknut 1/4"-20 Jam Flexlock1001124
3
Nylon Washer 1/4" x 3/4" x 1/8"
1004785
3Coved Washer 3/4"1000656
5
Washer 7/16" AN-960-716
1000907
1Bolt 1/4"-20 x 3/4" Socket Button Head1004818
1
Bolt 1/4"-28 x 1-3/4" Socket Button head
1007519
4
Nylon Washer 1/4" x 11/16"10001310
3Washer 1/4" AN-960-41610008911
2
Locknut 1/4"-28 Flexlock Black Zinc
10004512
1Locknut 1/4"-20 Jam Flexlock10011213
1
Nylon Washer 1/4" x 1/2"
10002514
1Thread Locker-Medium-Vibra-tite10069015
Axle
Axle Nut
1
2
3
4
15
5
6
7
7
8
9
10
11
1215
5
6
14
12
11
Cruiser 10-12 Brakes LH
Assembled
Exploded
Assembled
WHEELS
Brake Assy for Rolko Wheels - Left
Item Description Qty
1 CX/ME/CB/EZ/SFT Parking Brake Assembly, LH 1
2 Rolko Foot Brake Lever Assembly, LH 1
3 Bolt 1/4"-28 x 1-3/4" Socket Button Hd Alloy Steel 2
4 Locknut 1/4"-20 Jam Flexlock 1
5 Nylon Washer 1/4" x 3/4" x 1/8" 3
6 Coved Washer 3/4" 3
7 Washer 7/16" AN-960-716 5
8 Bolt 1/4"-20 x 3/4" Socket Button Head 1
9 Bolt 1/4"-28 x 1-3/4" Socket Button Head 1
10 Nylon Washer 1/4" x 11/16" 4
11 Washer 1/4" AN-960-416 3
12 Locknut 1/4"-28 Flexlock Black Zinc 2
13 Nylon Washer 1/4" x 1/2" 1
14 Thread Locker-Medium-Vibra-tite 1
996005
#
Kit Includes
13
14
14
