NGPH series Portable Evaporative Cooler
When ordering spare parts, please specify the model / serial number and colour of your cooler.
SPARE PARTS LIST
Item Description
1
Badge - Convair
2
Front Panel (includes Convair badge)
3
Plug and Cord Set Australia
4
Control Box
5
Switch Wire
6
Microswitch
7
Switch
8
Capacitor 3.15-3.2uf
9
Control Panel
10
Knob
11 Screw
12
Water Valve Assembly
13
Hose to Spreader
14
Chassis
15
Handle
16
Motor Rubber - Motor Mount (each)
17
18
Fan
Drive Belt
19
Pad Retainer
20
20
Cooling Pad - Aspen - Magicool Compact
Cooling Pad - Chillcel - Magicool, Silver
21
22
23
Rear Panel
Filter
Filter Frame
24
Hose to Pump
25
Tank (includes Wheels and Plug)
Item Description
26
Drain Plug
27
Strainer
28
Wheel
29
Motor 230V 50Hz (includes 4 Motor Rubbers)
30 Pump Shaft Assembly
When ordering replacement parts please quote Item Number, Description, Product Number and Serial Number.
SPARE PARTS LIST

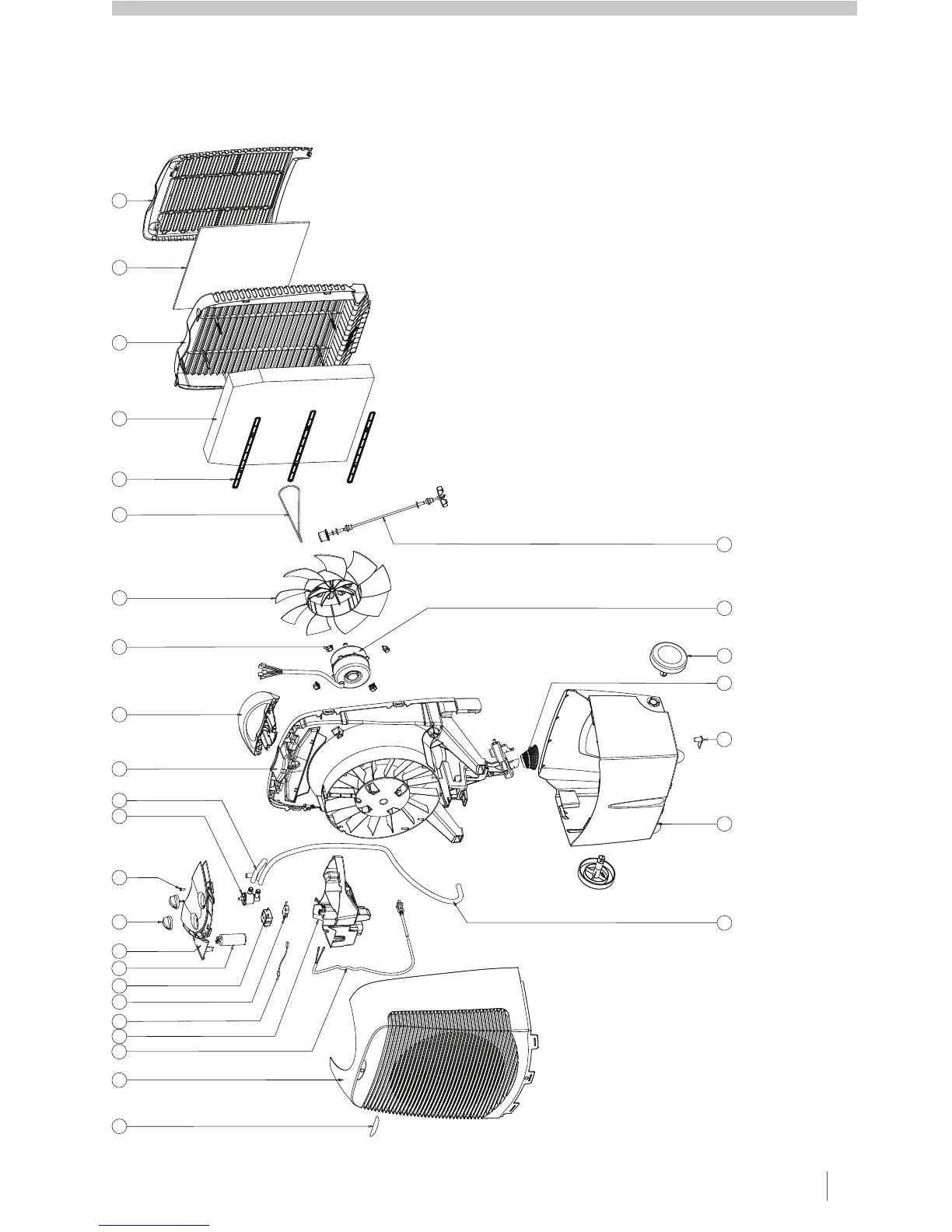

EXPLODED VIEW
ILL1270-C
1
2
3
4
5
6
7
8
9
10
14
13
12
11
15
19
18
17
16
23
22
21
20
26
25
24
30
29
28
27
