Convair Magicool - Component Location and List; Component List

SEELEY INTERNATIONAL – OWNER’S MANUAL 32
®

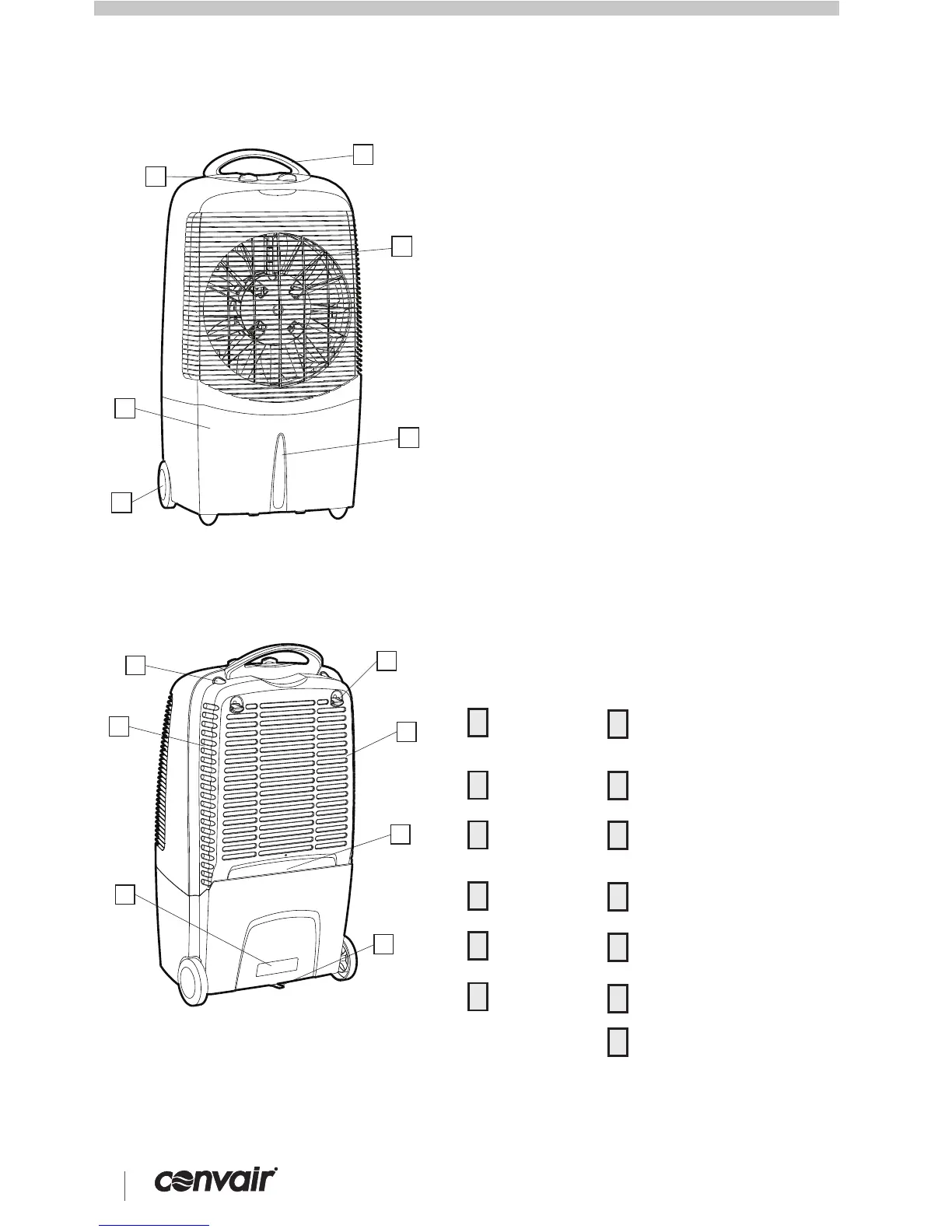

COMPONENT LOCATION
ASSEMBLY
A
B
C
D
E
F
ILL1299-B
Congratulations on purchasing your
Convair cooler, manufactured and backed by
Convair, a world leader in climate control.
In one compact, lightweight, easy to use and
attractive design, the Convair cooler helps to
keep your office or home space air clean
and cool all year long.
The Convair cooler is a powerful evaporative
cooler, that will give you plenty of cool, fresh
air. Place the cooler in front of an open door
or window so that it is drawing in fresh air.
Open a door or window opposite to create
flow through ventilation.
Featuring an exclusive High Airflow Filter,
the helps filter dust, pet
dander, pollen and other contaminants down
to 0.3 microns in size, and releases filtered
air back into the room.
Ensuring the
cooler has adequate ventilation is
important in maintaining cooler
performance.
Convair Silver
Front View
NGPH series Portable Evaporative Cooler
Handle Assembly
Magicool Silver
Magicool Compact
and coolers are supplied with
a handle, which can be fitted to the cooler.
The is not supplied with a
handle.
To attach the handle, simply push it into the
slot at the back of the cooler (Fig 01).
The handle has been designed to be a
permanent addition to the cooler. Do not
attempt to remove the handle once it is
fitted.
01
ILL1255-A
Once clipped into place, the handle will aid in
the manoeuverability of the cooler around
your home or office.
1. Place the cooler in front of an open
window or door so that it is drawing in fresh
air.
2. Pour clean water into the opening at the
back of the cooler (Fig 02).
OPERATING THE COOLER
02
ILL1256-A
The water capacity of the cooler is 13
litres. The minimum amount of water
required to operate the pump is 1.9 litres.
No damage occurs to the cooler when it is
operated without water.
3. Fill the cooler with water until the
water reaches the maximum fill level
indicated at the rear of the cooler (Fig 02).
the cooler as water will
spill on the floor.
4. Refill the cooler with clean water
whenever the water level in the window
appears low (Fig 03).
Do not overfill
N
I
L
H
J
K
M
ILL1254-A
Back View
Component List
A
B
C
D
E
F
H
I
J
K
L
HANDLE
(Magicool &
Silver)
FILTER CARTRIDGE
CLIPS
CONTROLS
FRONT GRILLE
REAR PANEL
WATER TANK
FILTER FRAME
AND FILTER
WATER LEVEL
WINDOW
WATER FILLING
AREA
WHEEL
RATING LABEL
M
DRAIN PLUG
N
REAR PANEL CLIPS
(Silver)
(Silver)
ILL1257-A
03
