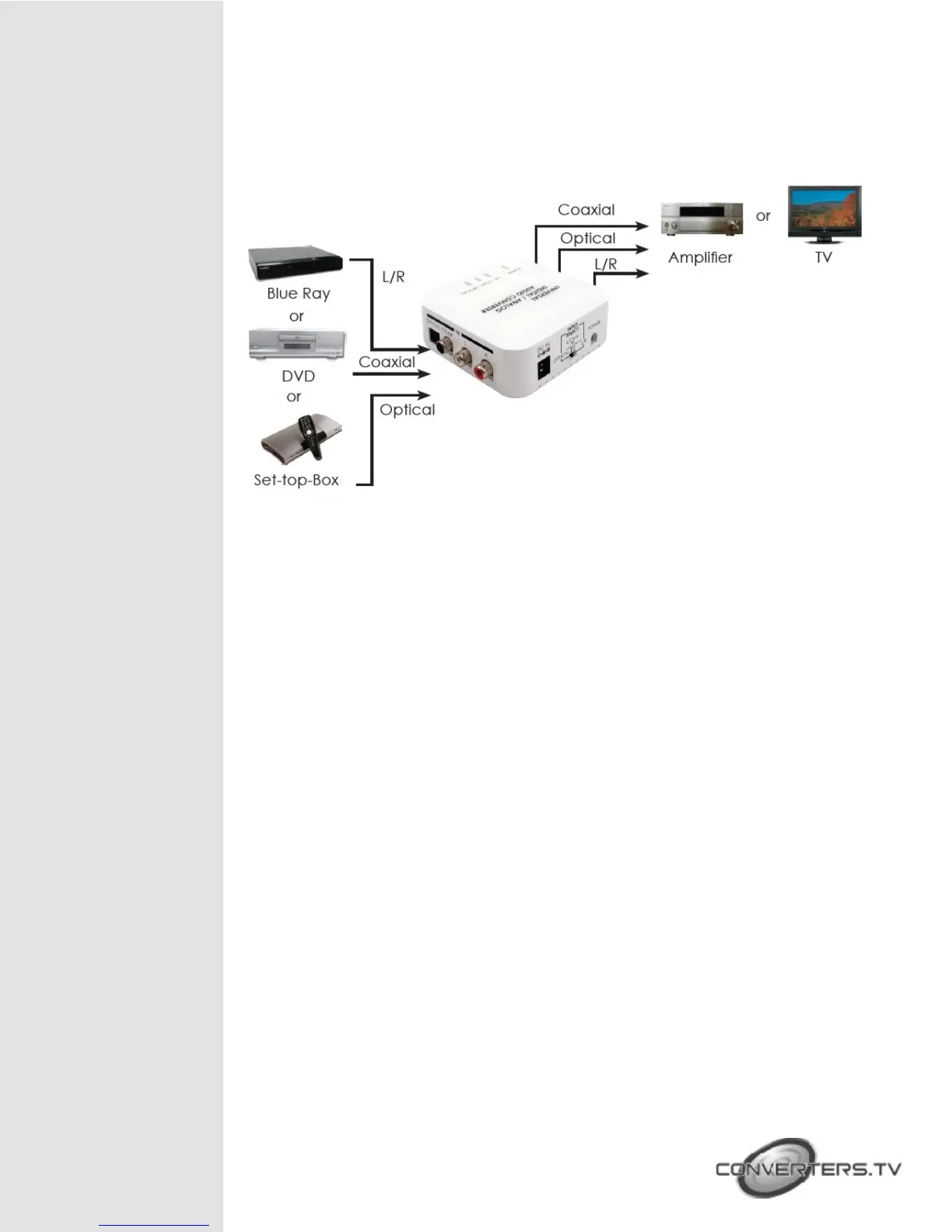

Installation
Specifications
Input Port Optical, Coaxial and L/R
Input Format Toslink, SPIDIF and LPCM 2CH
Sample Frequency 32kHz, 44.1kHz, 48kHz and 96kHz
Output Ports Coaxial, Optical and L/R
Output Level 2Vp-p
Output Impedance 100Ω
ESD Protection Human body model: ± 10kV (air-gap discharge)
± 6kV (contact discharge)
Core chipset: ± 2kV
Power Supply 5V / 1A DC (US/EU standard, CE/FCC/UL
certified)
Dimensions(mm) 97(W) x 85(D) x 35(H)
Weight(g) 120
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0ºC~40ºC / 32 ºF~104 ºF
Storage Temperature -20ºC~60ºC / -4 ºF~140 ºF
Power Consumption 1W
Relative Humidity 20~90% RH (non-condensing)
