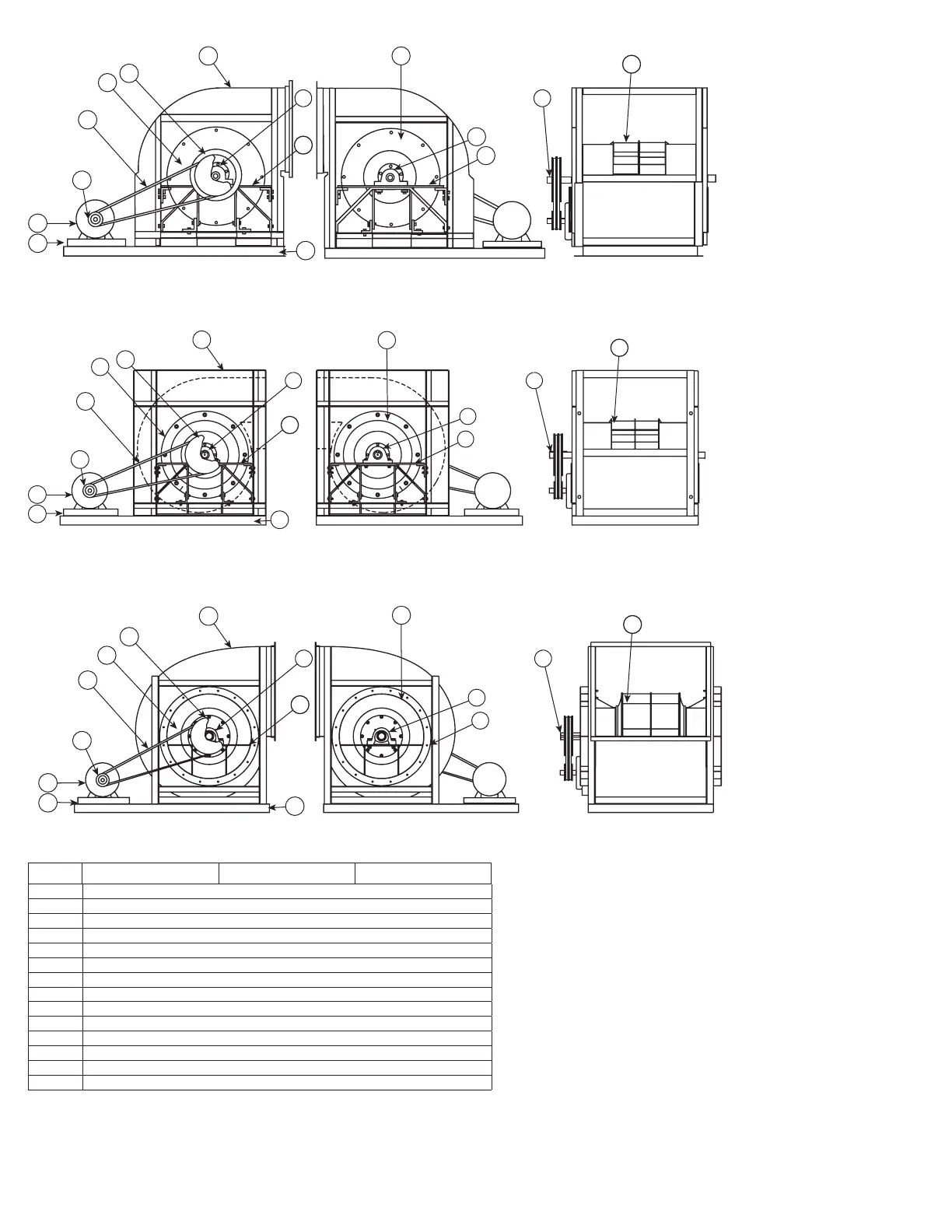

COOK CA Series - Parts List: CA, CF DWDI & CAF-DWDI

10CA/CF/CP IO&M B51181-002
CA DWDI
5
4
3
2
1
6
10
13
9
8
11
12
12
14
7
Drive Side View Free Side View Discharge Side View
CA-4 DWDI
5
4
3
2
1
6
10
13
9
8
11
12
12
14
7
Drive Side View Free Side View Dischar
g
e Side View
CAF-DWDI
5
4
3
2
1
6
10
13
9
8
11
12
12
14
7
Drive Side View Free Side View Discharge Side View
Part No. CA DWDI CAF-DW CA-4 DWDI
1 Motor Slide Base
2 Motor
3 Motor Sheave
4 Belt Set
5 Fan Sheave
6 Housing
7 Isolation Base (optional)
8 Shaft
9 Drive Side Bearing
10 Free Side Bearing
11 Wheel/Wheel Assembly
12 Inlet Cone
13 Free Side Bearing Support
14 Drive Side Bearing Support
