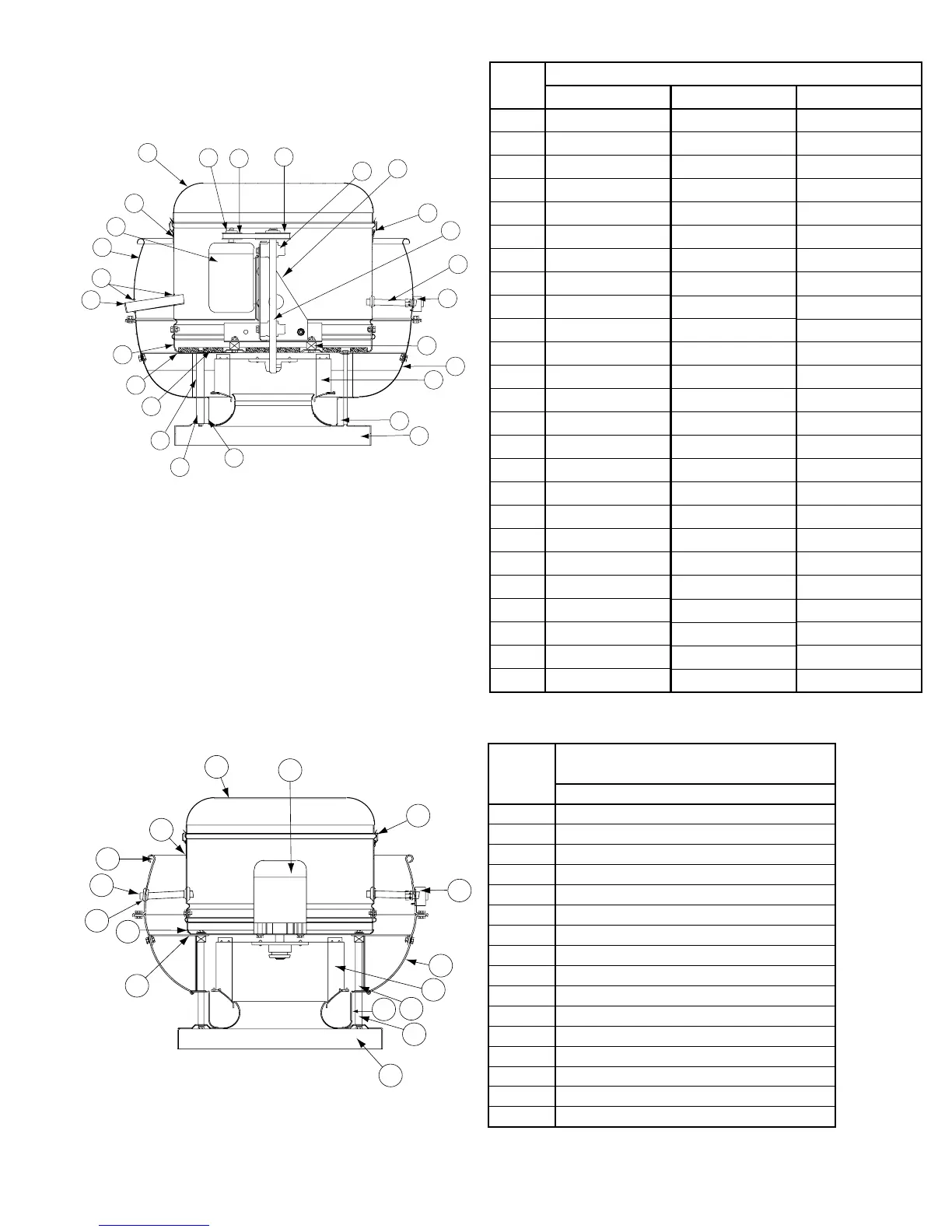

COOK VCR - Parts List and Warranty; VCR;VCR-HP;VCR-XP Parts; VCRD;VCRD-HP;VCRD-XP Parts

7
Part
No.
VCRD/VCRD-HP/VCRD-XP Parts Description
100-195
1a Top Cap Lid
1b Top Cap Cylinder
2 Top Cap Clip (4)
3 Motor
4 Spun Motor Plate
5Baffle
6 Wheel Assembly
7 NEMA 3 Junction Box
8Base
9 Conduit
11 Upper Post (4)
12 Lower Post (4)
13 Wind Band
14 Brace (4)
15 Vent Tube (2)
16 Grommet (4)
2
5
12
11
8
14
3
4
15
13
6
1a
1b
7
16
9
Part
No.
VCR/VCR-HP/VCR-XP Parts Description
100-225 245 270-490
1a Top Cap Lid Top Cap Lid Top Cap Lid
1b Top Cap Cylinder Top Cap Cylinder Top Cap Cylinder
2 Top Cap Clip (4) Top Cap Clip (4) Top Cap Clip (8)
3 Motor Motor Motor
4 Spun Motor Plate Spun Motor Plate Spun Motor Plate
5 Baffle Baffle Baffle
6 Wheel Assembly Wheel Assembly Wheel Assembly
7BaseBaseBase
8 Conduit Conduit Conduit
9 Isolator (4) Isolator (4) Isolator (4)
10 Upper Post (4) Upper Post (4) Upper Post (8)
11 Lower Post (4) Lower Post (4) Lower Post (8)
12 Wind Band Wind Band Wind Band
13 Brace (4) Brace (4) Brace (8)
14 Power Assembly Power Assembly Power Assembly
15 Shaft Shaft Shaft
16 Bearing (2) Bearing (2) Bearing (2)
17 Drive Sheave Drive Sheave Drive Sheave
18 Driven Sheave Driven Sheave Driven Sheave
19 Belt Set Belt Set Belt Set
20 Vent Tube Vent Tube Vent Tube
21 Grommet (2) Grommet (2) Grommet (2)
22 — Cut Off (HP & XP Only ) Cut Off (HP & XP Only )
23 Insulation Insulation Insulation
24 NEMA 3 Junction Box NEMA 3 Junction Box NEMA 3 Junction Box
Parts List
VCR/VCR-HP/VCR-XP Parts
6
8
22
7
5
9
24
15
2
14
16
18
19
17
1a
1b
3
12
20
4
13
23
10
9
11
21
VCRD/VCRD-HP/VCRD-XP Parts
