Built-in Fan-Assisted Oven by Cooke & Lewis
Installation
IMPORTANT! The conductors of the network power supply
lead are coded by colours as follows:
Green and yellow – Earth
Blue – Neutral
Brown – Live
> The green and yellow conductor must be connected to the terminal
marked "E" or with the symbol of the earth or which is green and yellow.
> The blue conductor must be connected to the terminal marked "N".
> The brown conductor must be connected to the terminal marked "L".
> The lead must not reach a temperature higher than 50 ºC above the
ambient temperature at any point.
> If the power lead is damaged, it must be replaced by a special lead or
unit supplied by the manufacturer or its after-sales service.

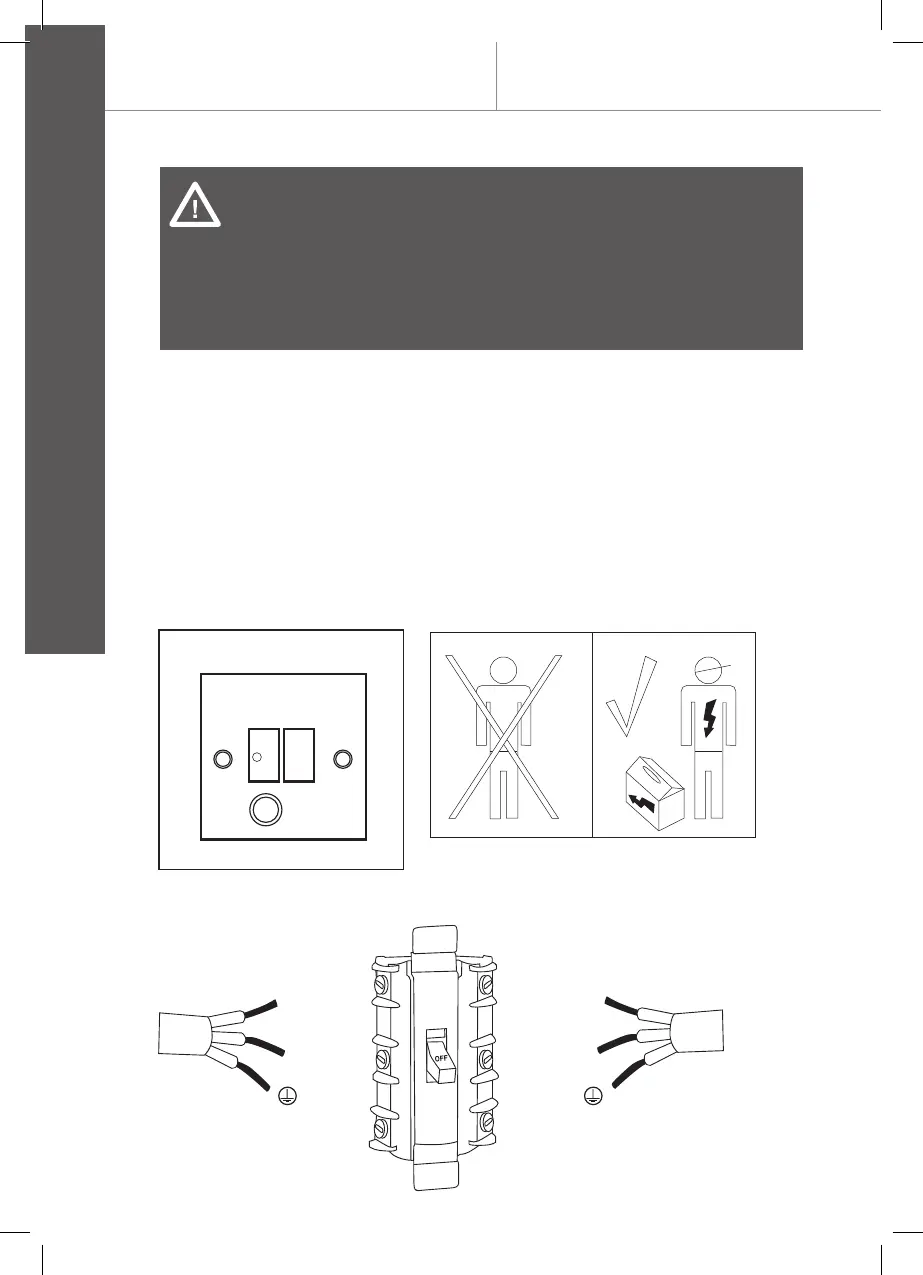

Connection in UK
Connection in France
N (Bleu)
L (Brun)
L (Vert)
N (Bleu)
L (Brun)
L (Vert)
FUSE ON
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 13 AMP FUSE
