Built-in Fan-Assisted Oven by Cooke & Lewis
Getting started...
Fitting the appliance
Important
> The adjacent piece or furniture or cupboard and all the materials used
in the installation must resist a minimum temperature increase of 85 ºC
above the ambient temperature during use of the appliance.
> Certain types of vinyl or laminated kitchen furniture are particularly
susceptible to damage due to decolouration at temperatures below those
indicated.
> If the appliance is installed without paying attention to this temperature
limit or if it is placed less than 4 mm from the adjacent cupboards, liability
will belong to the owner.
Installation Notes
1. The oven has to be installed in a standard gap of 600 mm, as indicated
in Fig. 1, whether under a hob or in a column.
2. On inserting the oven in a column, it is essential in order to ensure there
is enough ventilation, to remove the rear panel of the furniture and have
an opening of at least 85-90 mm as indicated in Fig. 1.
3. Check that the oven has been xed securely in the housing. Fixing the
oven into the cupboard is done using 4 screws
02
. One in each
corner of the oven door frame.
Installation
580/583
572
560
560
Min.
580
Min.
580
580/583
85/90
85/90
85/90
533
26
525
595
595

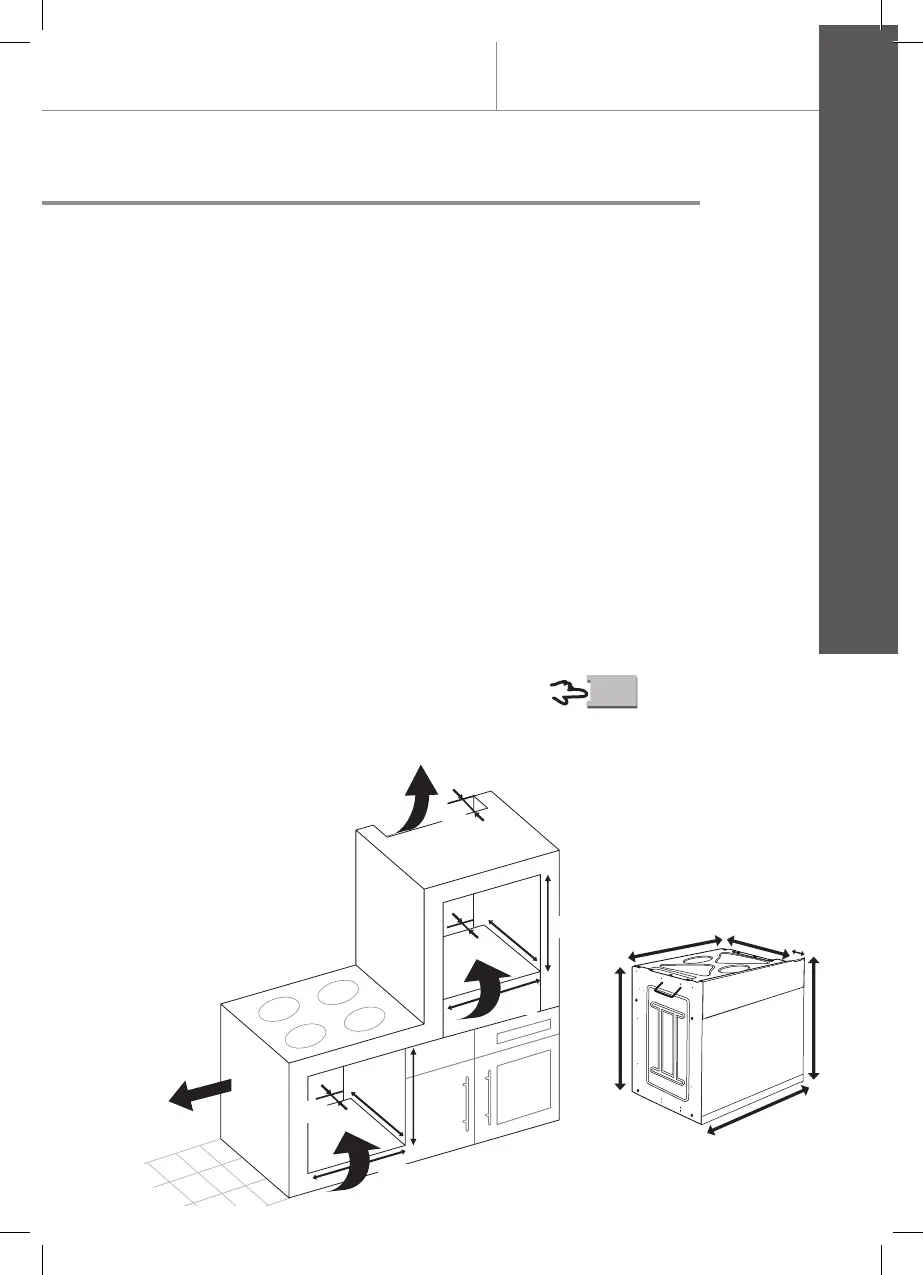

Fig. 1
