DYNAMIC TEST MODE
Dynamic test mode is used to check the system functionality. This mode will ignore control inputs and cycle through the output range.
* On = 1, O = 0
Dynamic test SCT mode:
Outputs operate in standard configuration with the output duty cycle of all 4 channels matching. Output duty cycle starts from 0% and
ramps linearly up to 100% output, then ramps back down to 0% and repeats indefinitely with a period of 5 seconds.
Time
Dimming
5s
100%
0%
0s
Time
Dimming
10s5s
100%
0%
0s
Warm White Cool White

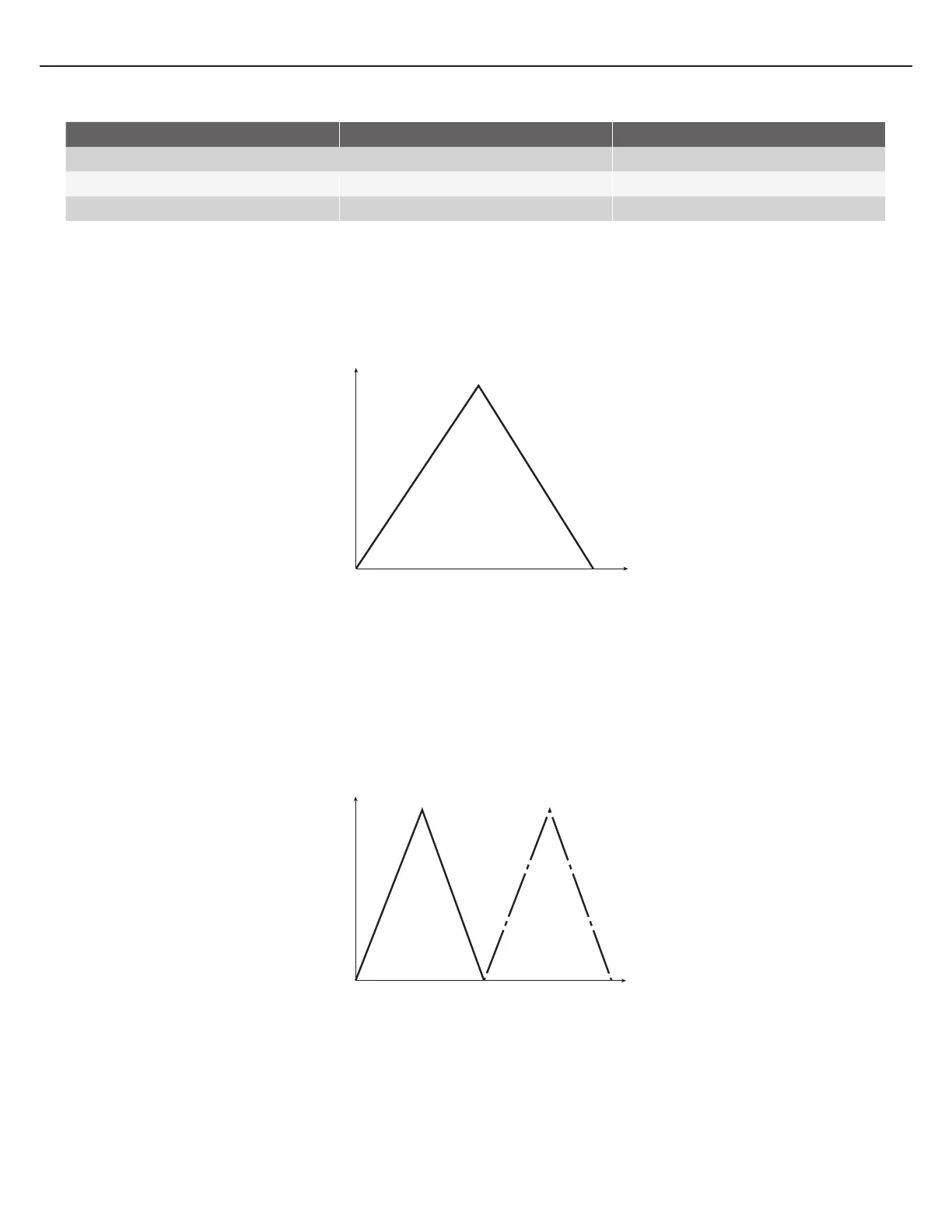

Figure 8: SCT Dynamic test mode output range
Dynamic test TNW/DTW mode:
This test mode is only applicable for TNW and DTW TILEs. Output duty cycle starts with the WARM LEDs (TNW=2700K,
DTW=2200K) raising their intensity from 0% to 100% then decreasing to 0%. Next the COOL LEDs (TNW=5700K, DTW
=3500K) raise intensity from 0% to 100% then decrease to 0%. This cycle repeats indefinitely with a period of 10 seconds.
Figure 9: TNW/DTW Dynamic test mode output graph
Standalone SCT Mode Switches 1-3 Switches 4-12
Dynamic Dimming Level Test (SCT) 1-0-1 IGNORED
Dynamic Color Tune Test (TNW) 1-1-1 IGNORED
Dynamic Dim-to-Warm Test (DTW) 1-1-1 IGNORED
