EXT-0087-R00-01082020 (LTR) 2/17
cUL Listed 58V Control Module
100W PSU* 200W PSU 400 PSU
Dimensions (in)
8.7 x 2.6 x 1.4 11 x 4 x 3 9.6 x 2.8 x 1.5 16.0 x 4.9 x 1.7
CE Compliant 58V Control Module
100W PSU 200W PSU 400 PSU
Dimensions (mm)
220 x 66 x 36 199 x 63 x 35 244 x 71 x 38 407 x 124 x 43
INPUT POWER - 58VDC: 100W / 200W / 400W - SELV

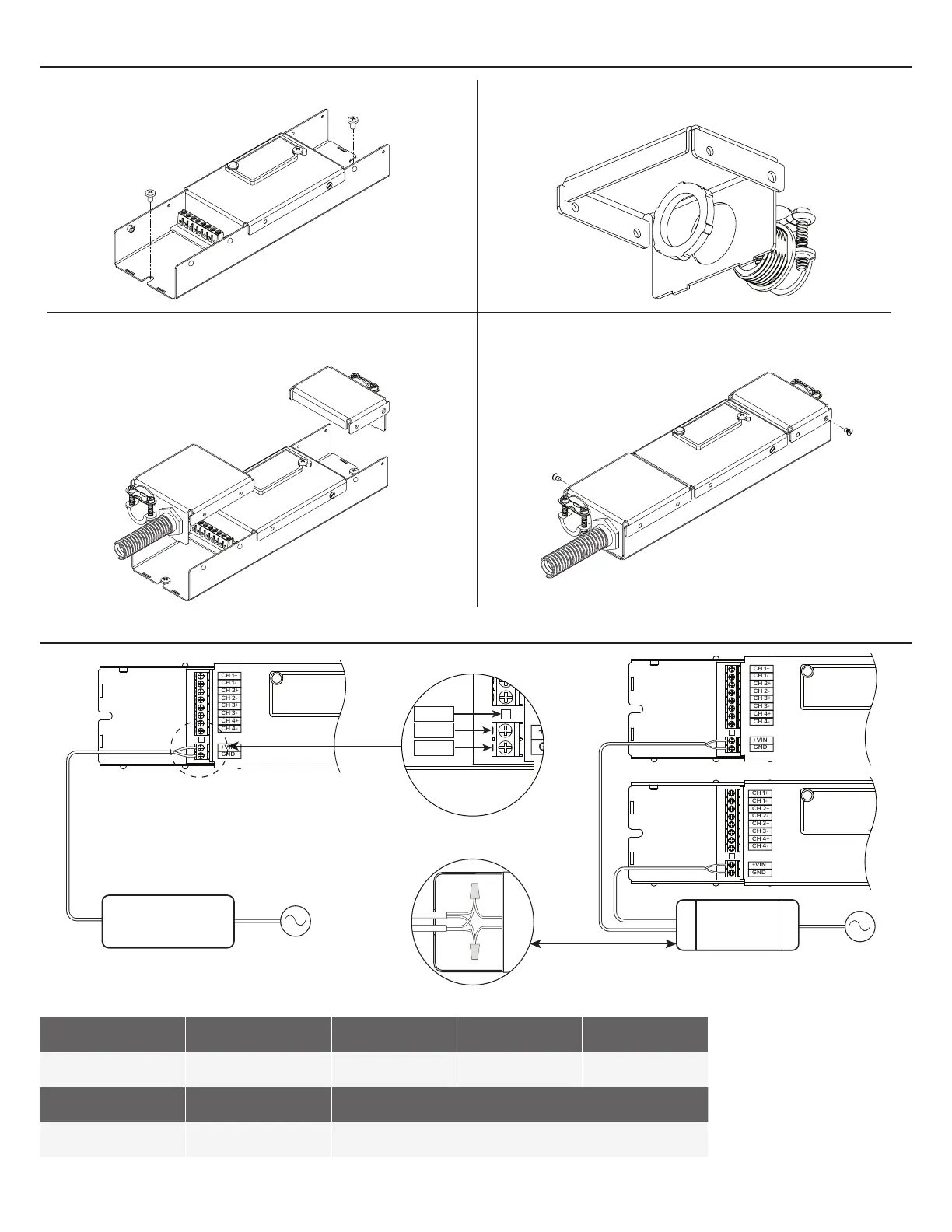

1) Fasten module in position by using the two mounting
slots. (Fasteners not supplied)
2) Terminal covers support 1/2” strain relief of conduit.
Conduit or armoured cable must be used on power
input cable.
3) Thread cables through conduit/strain reliefs and
covers; then make connections as required.
4) Snap covers in position and secure with provided
fasteners.
* The 100W PSU (58V) cUL version is not compatible with Cooledge Control Modules.
MOUNTING COOLEDGE CONTROL MODULE
Please refer to EXT-0071 Cooledge Control Module User Guide
for more information regarding the status LED indicator.
(+) 58VDC
(-) GND
PSU 58V
100/200/400W
Status LED
PSU 58V
400W
+
-
+
-
CH 1+
CH 1-
CH 2+
CH 2-
CH 3+
CH 4+
CH 3-
CH 4-
+VIN
GND
CH 2-
CH 3+
CH 4+
CH 3-
CH 4-
+VIN
GND
CH 1+
CH 1-
CH 2+
CH 2-
CH 3+
CH 4+
CH 3-
CH 4-
+VIN
GND
CH 1+
CH 1-
CH 2+
CH 2-
CH 3+
CH 4+
CH 3-
CH 4-
+VIN
GND
Optional wiring methods for TNW and DTW
installations using the 400W 58V PSU.
