INTRODUCTION TO COOLEDGE CONTROL MODULE
The Cooledge Control Module receives a single DC power input from a constant voltage power supply 58V and converts it into up
to 4 controlled output channels of max. 90W each. Input signals from 3rd party controllers are used to control dimming and CCT
tuning (if applicable). The control protocol required to interface with the controller determines which Control Module product model
is required: DALI (0/1-10V), DMX, or Wireless (Casambi).

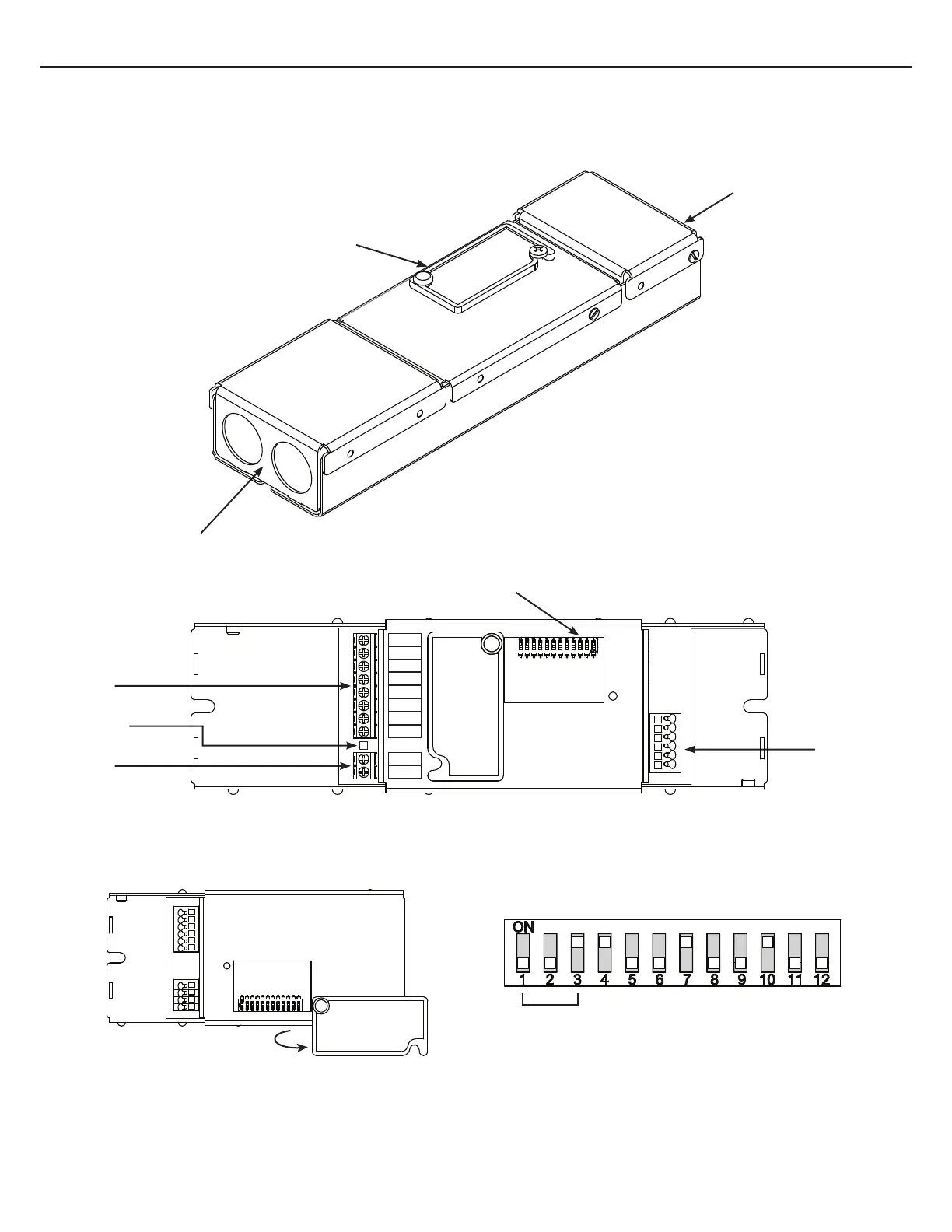

CH 1+
CH 1-
CH 2+
CH 2-
CH 3+
CH 4+
CH 3-
CH 4-
+VIN
GND
Output Channel
and Power Input Cover
DIP Switch
Cover
Controls Input
Cover
Output
Channels
Status LED
Power
Input
Mode and Addressing DIP Switch
DMX
Inputs
DMX
To access the DIP switches for selecting the operational mod, unfasten the cover screw and rotate cover out of the way.
Positions 1-3 are used to identify the controller mode. Settings for each mode are explained in each section.
- Switches 1 - 3: Control Module MODE
