Revised: 13/05/2021 4 of 13 Printed: 14/10/2021

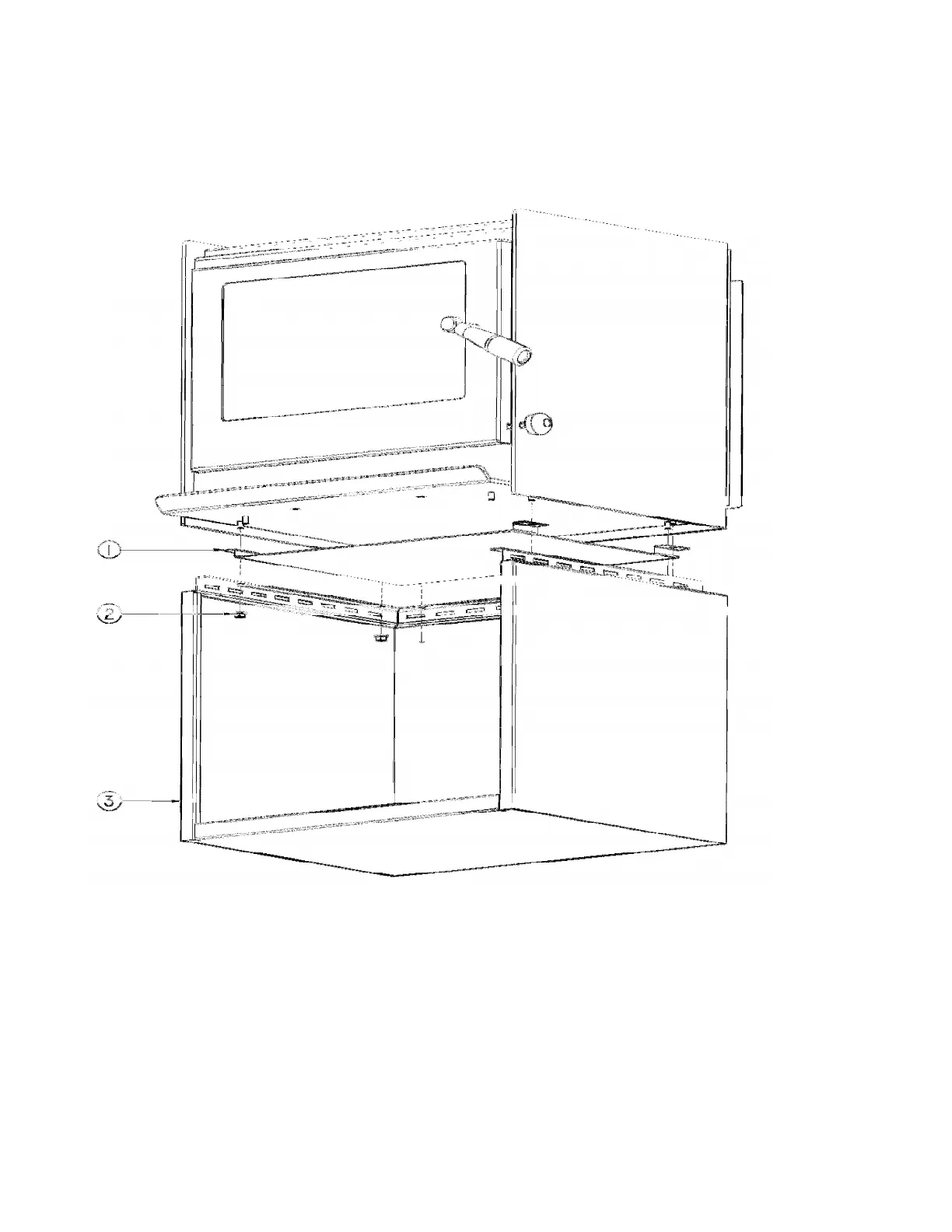

Aussie Legend Stacker Assembly
To install stacker, parts must be fitted using this procedure:
1. Remove legs (retain 6 nuts).
2. Make sure you have 6 nuts (item 2).
3. Drop heater onto stacker making sure item 1 (heatshield) is used.
4. Tighten up all 6 nuts.
NOTE: There will be two spare threaded studs at front of heater that are not used with this assembly.
