Cooper QD3 User Manual

S225-12-1
13
!
SAFETY
FOR LIFE

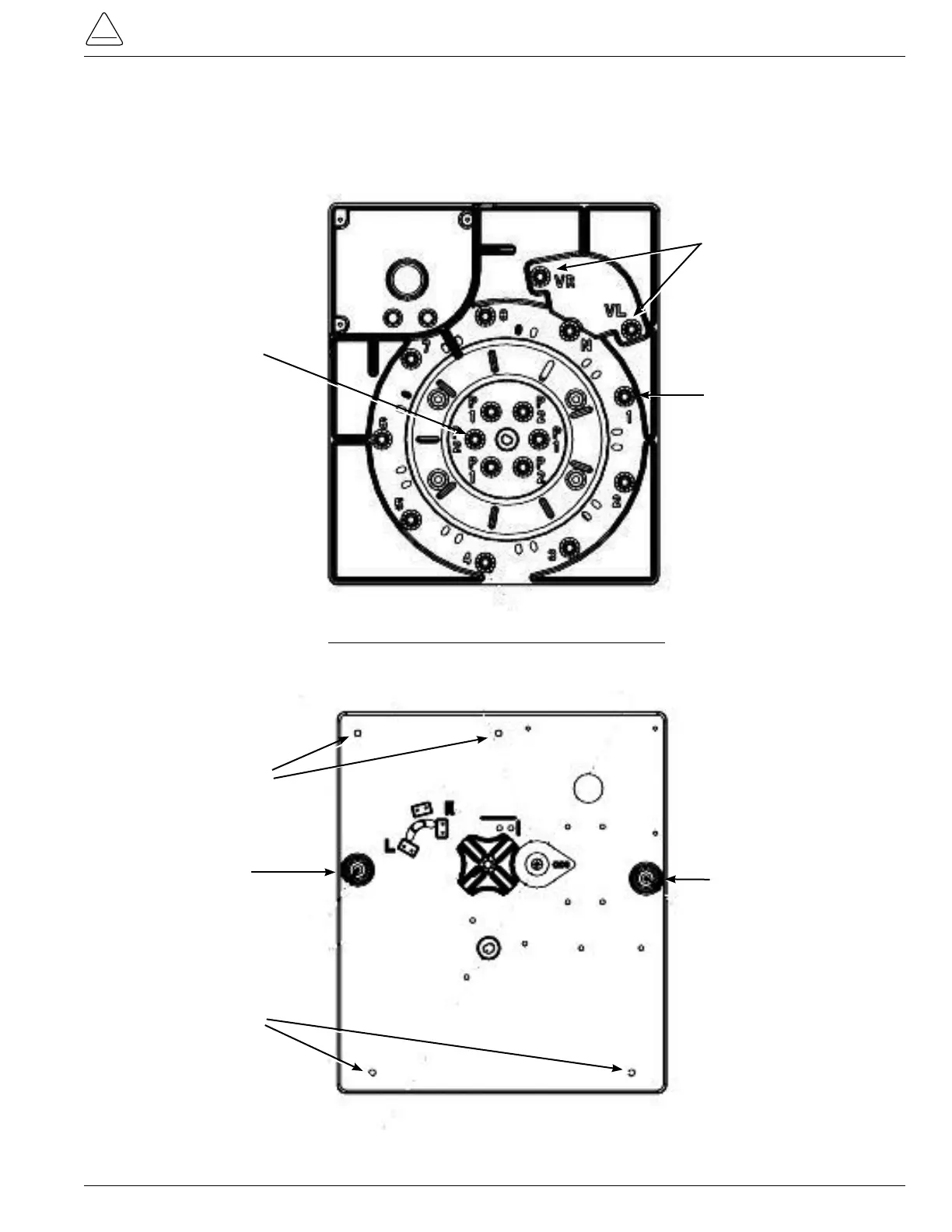

QD3/T350 Torque Requirements
60-70 lb.-in. Back panel tap connections; Taps 1 thru 8,
N- Neutral, VR, VL All 6 P1 and P2 connections.
60-70 lb.-in.
All 6 P1 & P2
connections
6.779-7.908 Nm
60-70 lb.-in.
6.779-7.908 Nm
60-70 lb.-in.
Tap connections
N and 1 thru 8
6.779-7.908 Nm
Figure 20.
Connect panel connections.
50-60 lb.-in. Button Head socket
head or Allen head screws, six
locations
5060 lb.in.
5.6496.779 Nm
50-60 lb.-in.
5.649-6.779 Nm
50-60 lb.-in.
5.649-6.779 Nm
50-60 lb.-in.
5.649-6.779 Nm
Figure 21.
Front and back panel connections.
