QD3 Quik-Drive Voltage Regulator Tap-Changer Manual
14
100-110 lb.-in. Motor Bracket to Motor Fastener Torque
100-110 lb.-in.
11.298-12.428 Nm

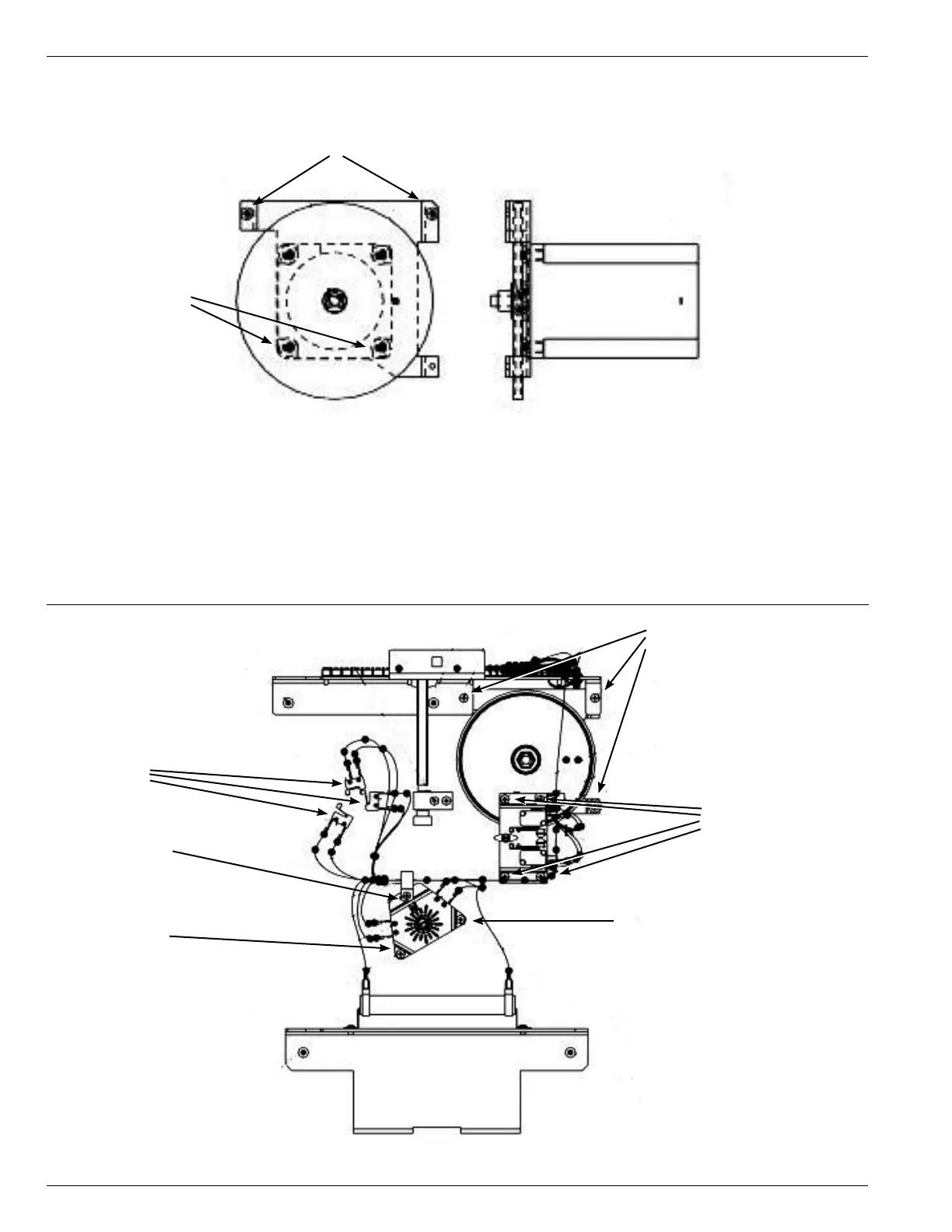

Figure 22.
Motor mount bracket.
100-110 lb.-in.
11.298-12.428 Nm
22-28 lb.-in. Motor to Front Panel Torque
12-18 lb.-in. Holding Switch Assembly to Front Panel Fastener Torque
12-18 lb.-in. Tap Position Lob Cover to Front Panel Fastener Torque
24-32 oz.-in. Raise, Lower, and Neutral Micro Switch to Front Panel Fastener Torque
22-28 oz.-in. Position Indicator Drive Assembly to Front Panel Fastener Torque
Figure 23.
Front panel component torques.
24-32 oz.-in.
.169-.255 Nm
12-18 lb.-in.
1.355-2.033 Nm
12-18 lb.-in.
1.355-2.033 Nm
12-18 lb.-in.
1.355-2.033 Nm
12-18 lb.-in.
1.355-2.033 Nm
22-28 lb.-in.
2.485-3.163 Nm
