Cooper QD3 User Manual

S225-12-1
15
!
SAFETY
FOR LIFE
22-28 lb.-in. Motor Resistor clips to tap-changer base mounting hardware torque
24-32oz.-in. Tap Position raise and lower limit micro switch mounting hardware torque

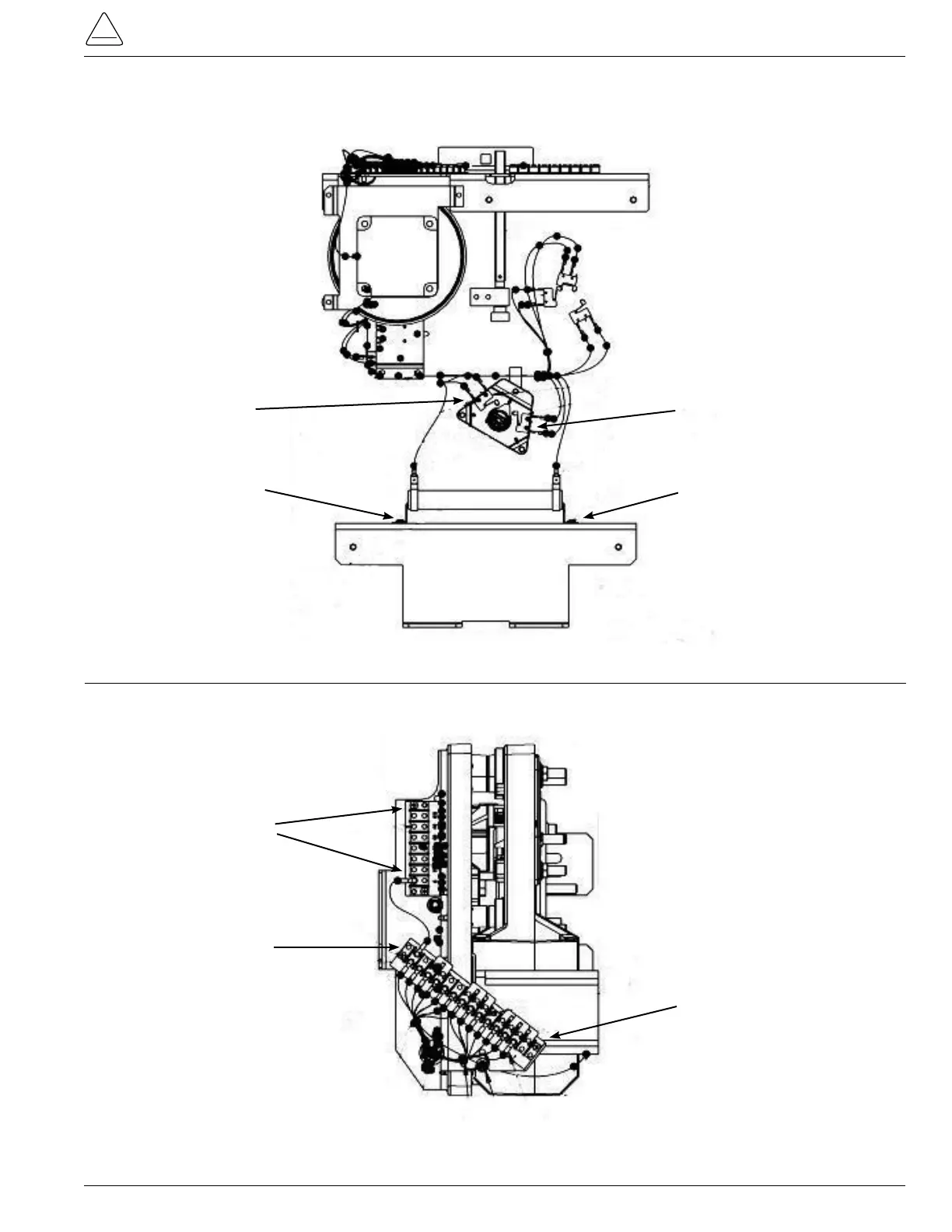

Figure 24.
Front panel component torques.
24-32oz.-in.
.169-.255 Nm
22-28 lb.-in.
2.485-3.163 Nm
24-32oz.-in.
.169-.255 Nm
22-28 lb.-in.
2.485-3.163 Nm
Figure 25.
Tap-changer terminal board fastener torques.
18-20 lbs.-in.
2.033-2.259 Nm
1820 lbs.in.
2.0332.259 Nm
18-20 lbs.-in.
2.033-2.259 Nm
18-20 lb.- in. Tap-Changer Terminal Board Mounting Hardware Torque
