Assembly Chart 1220/1202
shelves / partition wall A
12
13

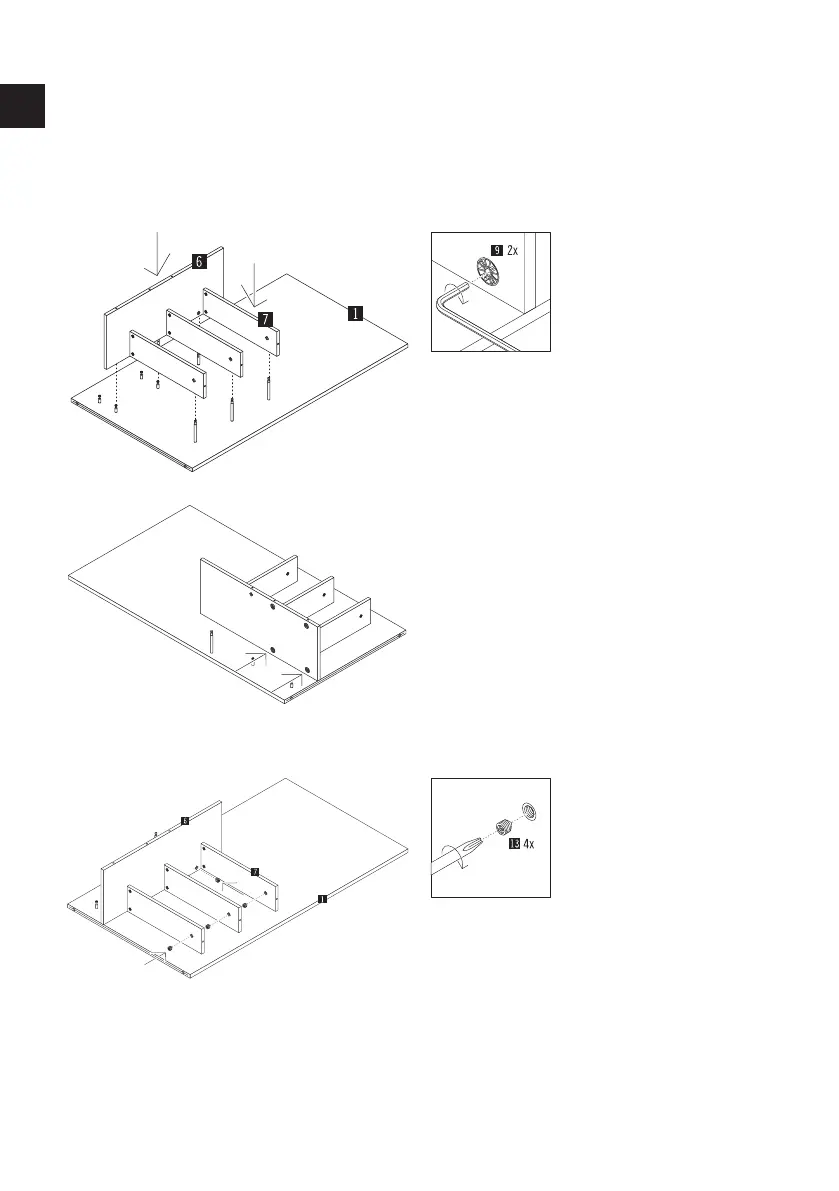

Place the connected shelves (parts 6 + 7)
using 2 people on the bolts of partition wall A
(part 1) in the intended position. Then tighten
the two Maxifix housings (part 9) to the shelf
(part 6) using an Allen key.
One after the other, press the shelves
(parts 6 + 7) firmly onto partition wall A
(part 1) and simultaneously screw the con-
nector grub screw (part 13) into the connector
housing and tighten the grub screw. There are
4 grub screws altogether.
