65
Assembly Chart 1220/1202
shelves
14

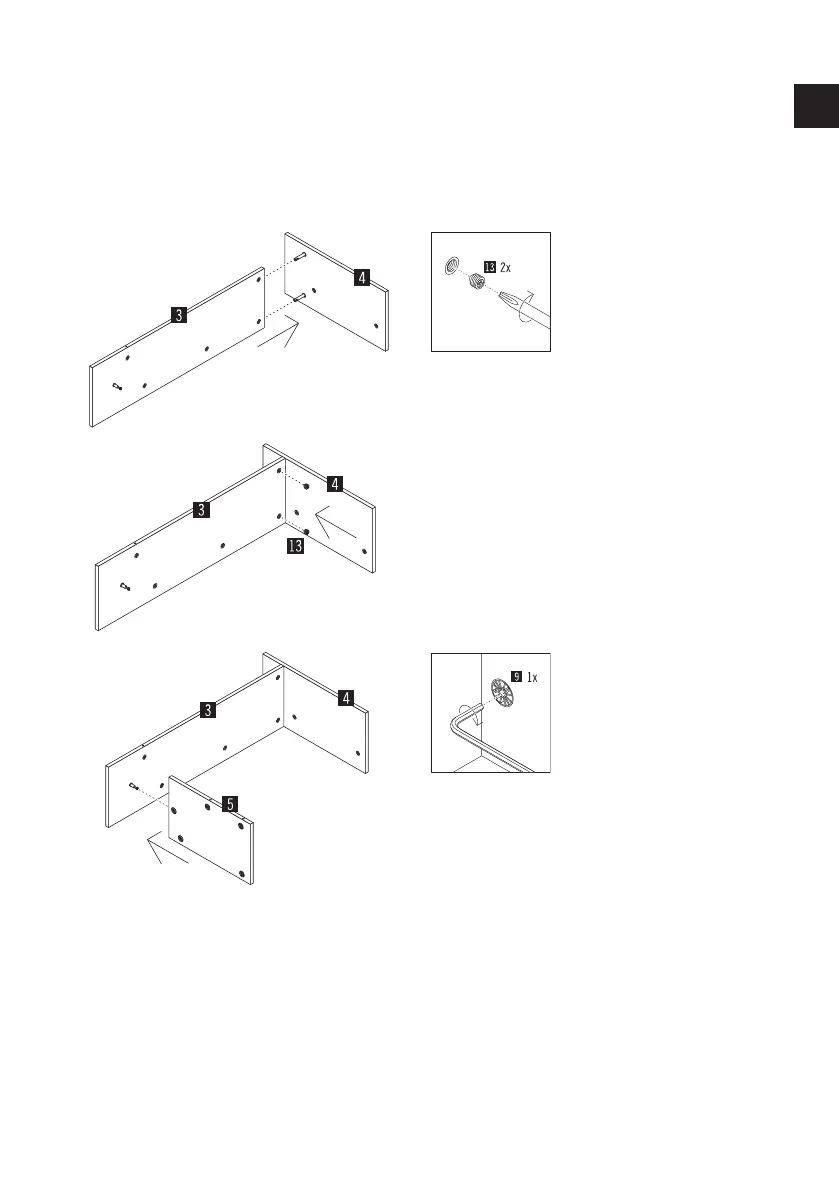

Now connect the shelves (parts 3 - 5). First
plug the two shelves (parts 3 + 4) together as
shown in the diagram and screw the two con-
nector grub screws (part 13) into the connec-
tor housings and tighten the grub screws.
Then place the shelf (part 5) on the shelf
(part 3) as shown in the diagram and tighten
the Maxifix housings (part 9) using an Allen
key.
GB
