Assembly Chart 1220/1202
shelves / partition wall B
15

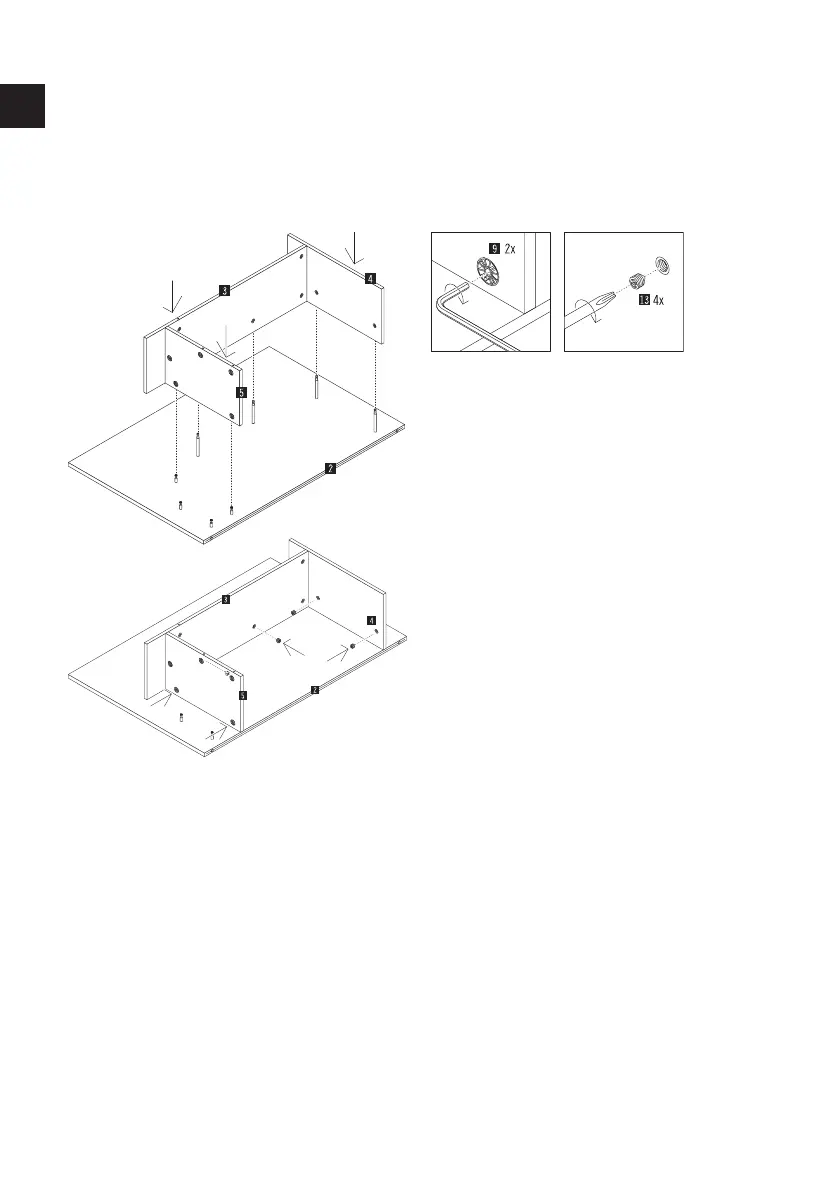

Place the connected shelves (parts 3 - 5)
with 2 people on the bolts of partition wall B
(part 2) in the intended position. Then tighten
the two Maxifix housings (part 9) to the shelf
(part 5) using an Allen key, screw the 4 con-
nector grub screws (part 13) into the connec-
tor housings and tighten the grub screws.
